Component Identification; Figure 2. Intel - Intel SC5600LX - Server Chassis - Tower Service Manual

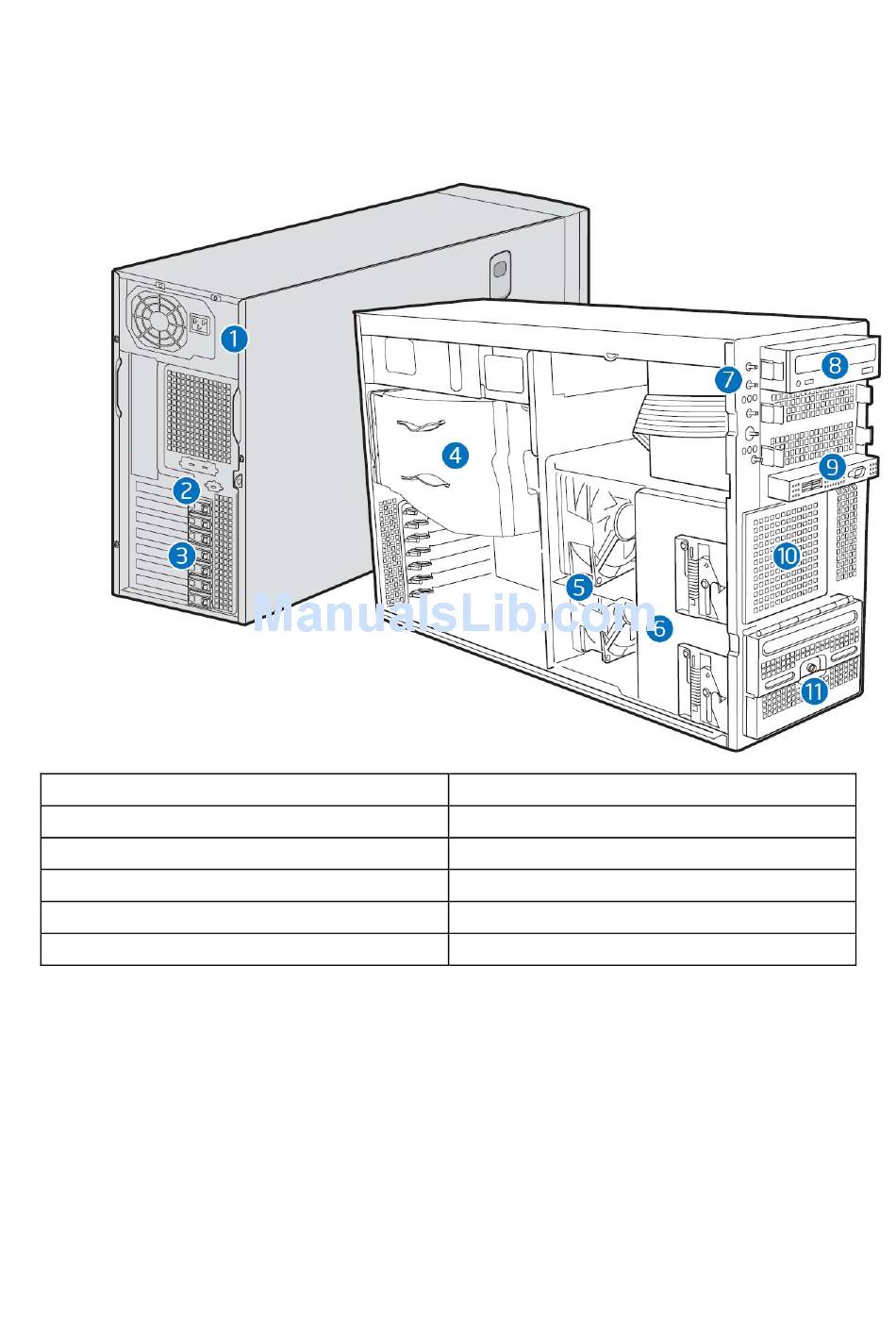

Component Identification

1. Fixed Power Supply
2. Rear Serial B Connector
3. PCI Add-in Card Panel
4. Air Duct and Rear Fixed Fan
5. Front Fixed Fans (2)
6. Hard Disk Drive Cage Release Mechanisms (2)

Figure 2. Intel

Server
Intel® Chassis SC5600 Service Guide
7. Front Control Panel
8. 5.25-inch Device Bays (optional optical drive shown)
9. Front Panel USB/Serial B
10. Fixed Drive Cage 4-Drive (accessory)
11. Fixed Drive Cage 6-Drive
®
Server Chassis SC5600Base Components Location
Server Chassis Features
5
