Unlatch the air duct from the chassis by pressing the tab at the rear of the air duct located on the rear
system fan bracket (See letter "A").
5.
Grasp the air duct and remove (see letter "B").
Installing the Air Duct
Installing the Air Duct in Intel
SC5600BRP
1.
If your system has two processors, remove the inner plastic inlet filler board from the inside of the air duct
(see the following figure for inlet filler board removal details).
CAUTION
This step only applies to systems with two processors. If your server board has only one processor
installed, leave the inner air baffle in place and proceed to Step 2.
2.
Install the air duct. Make sure aligning the air duct and chassis rear fan bracket (see letter "D" in Figure 13)
alignment rails (see letter "C" in Figure 13) before inserting air duct tabs (see letter "B" in Figure 13) into
the chassis rear fan bracket slots (see letter "A" in Figure 13).
Server
Intel®
Chassis SC5600 Service Guide

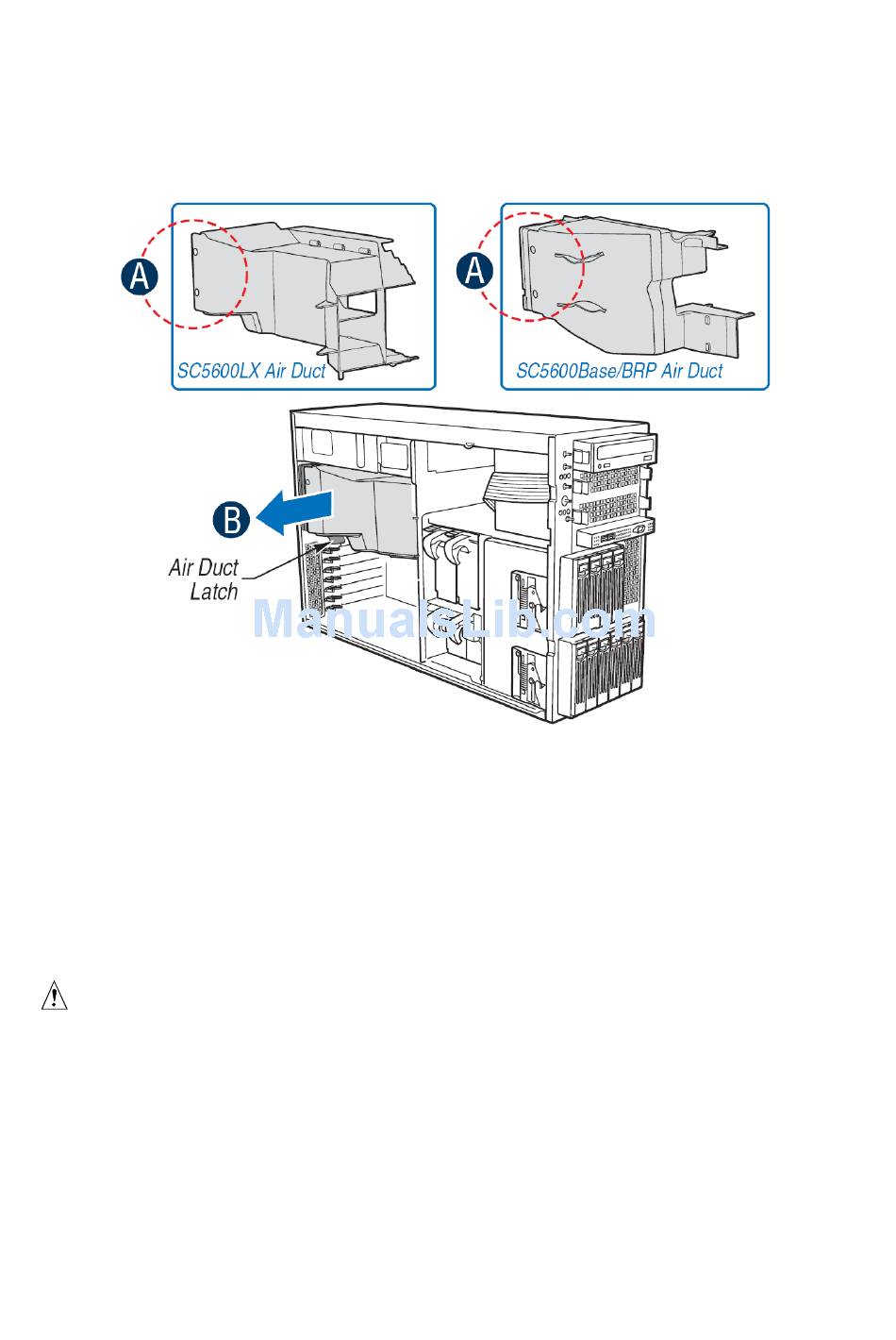

Figure 12. Removing the Air Duct
®
Server Chassis SC5600Base and
Hardware Installations and Upgrades
19
