Hardware Installations and Upgrades

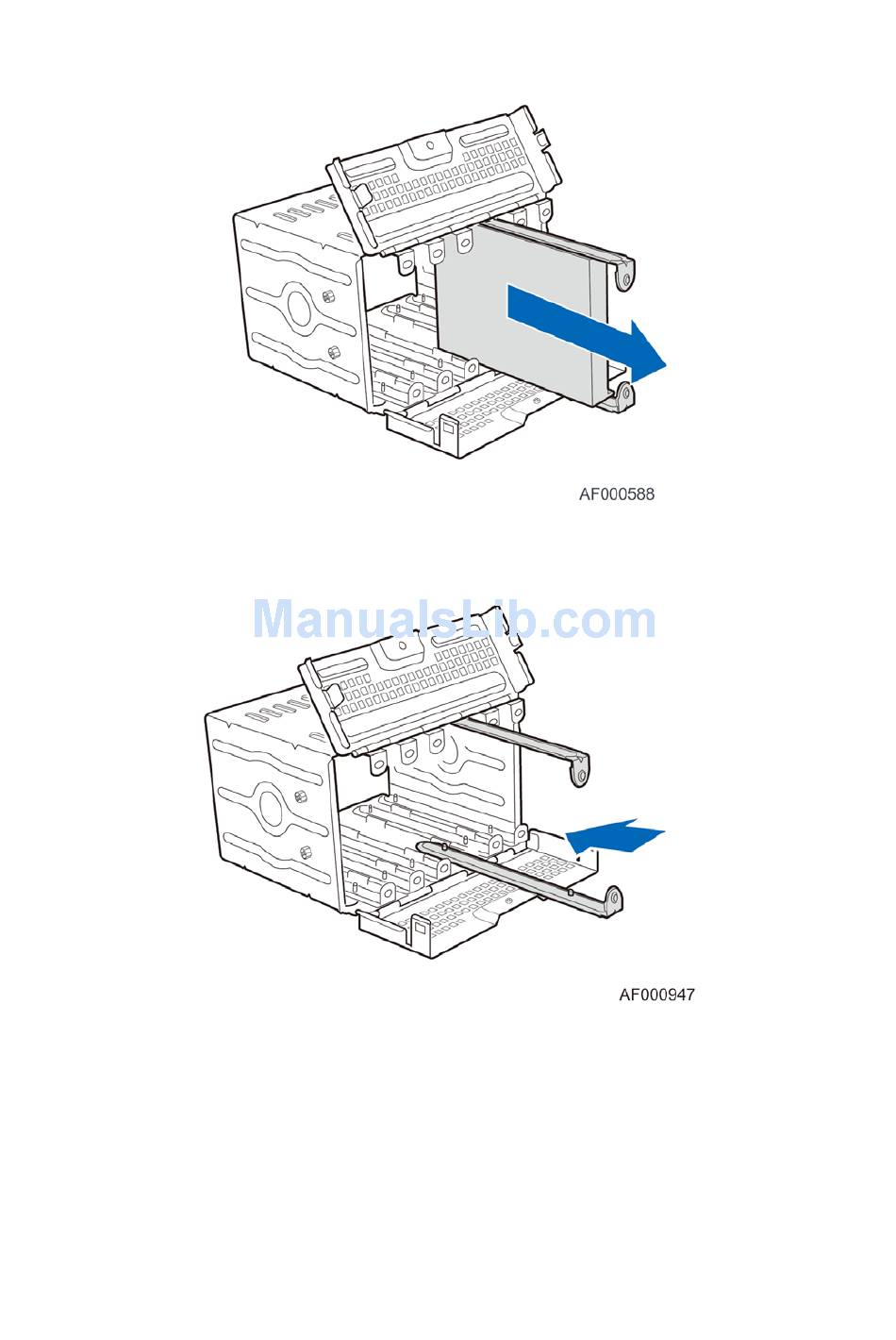

Figure 25. Removing Drive/Slide Assembly from Fixed Drive Cage

11. Remove the device slides from the hard drive. If not replacing the hard drive, insert the empty device
slides into the drive cage.

Figure 26. Inserting Empty Device Slides into Fixed Drive Cage

12. Close the lower door of the drive cage.
Server
Intel® Chassis SC5600 Service Guide 29
