Remove the chassis cover. For instructions, see "Removing the Chassis Cover."
3.
Press the latch on the fan (see letter "A" in Figure 16) and pull on the handle to remove the hot swap fan
from the chassis.
4.
For removal of the remaining hot swap fans, repeat Step 3.
Installing Hot Swap Fans
/
NOTE
This procedure applies only to the Intel
Chassis SC5600Base and Intel
You cannot use the hot-swap fans from the Intel
®
Intel
Server Chassis SC5600LX.
1.
Observe the safety and ESD precautions at the beginning of this book.
2.
Remove the chassis cover if it was not removed in a previous step. For instructions, see "Removing the
Chassis Cover."
3.
Insert the hot swap fan into the chassis until it latches into place.
4.
For insertion of the remaining hot swap fans, repeat Step 3.
Server
Intel®
Chassis SC5600 Service Guide

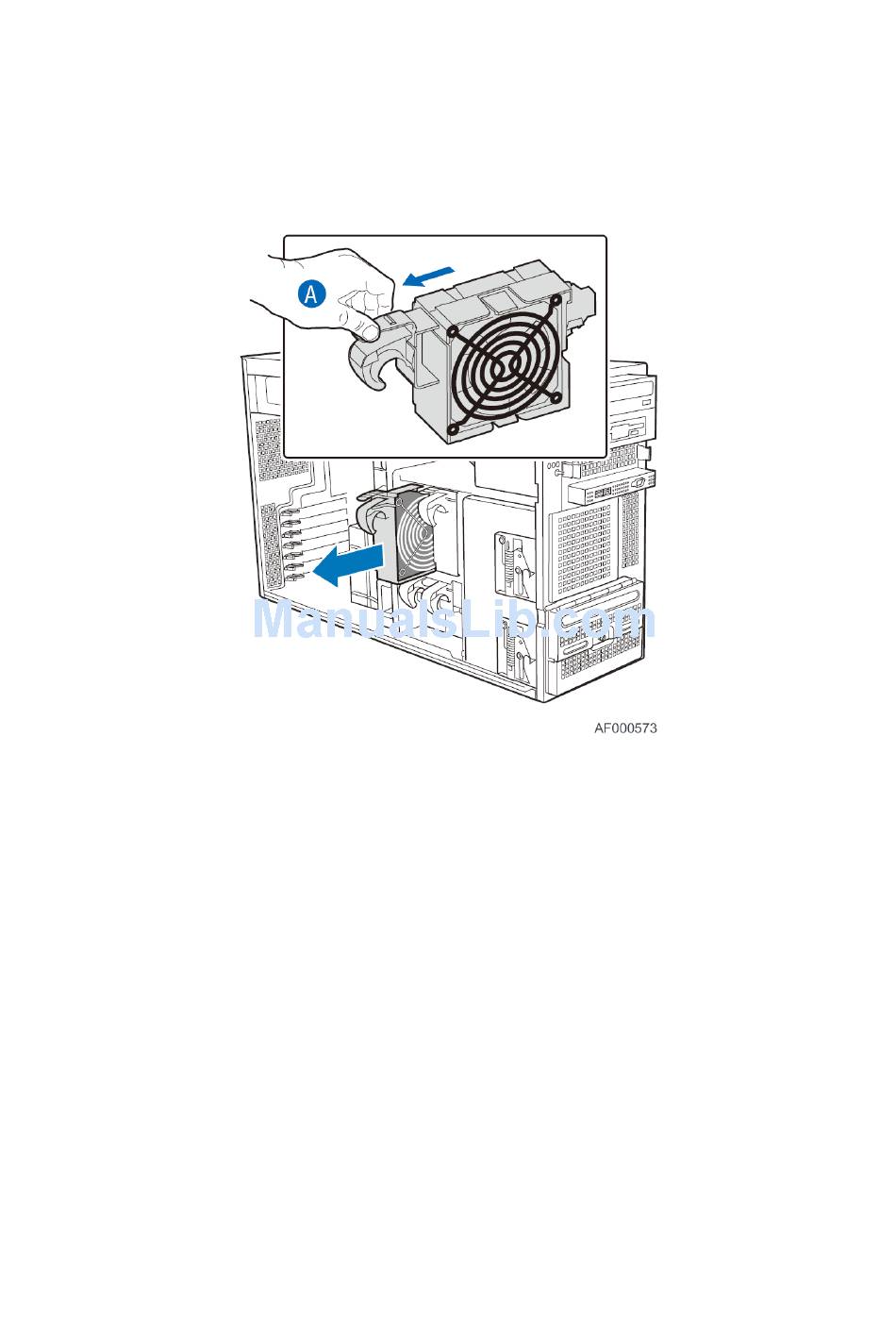

Figure 16. Removing Hot Swap Fan
®
Server Chassis SC5600LX configurations. The Intel
®
Server Chassis SC5400BRP configurations ship with fixed fans.
®
Hardware Installations and Upgrades
Server Chassis SC5400LX or SC5400LXi in the
®
Server
23
