NOTE
Carry out following operation only
if spacer (6) came off its seat.
◆

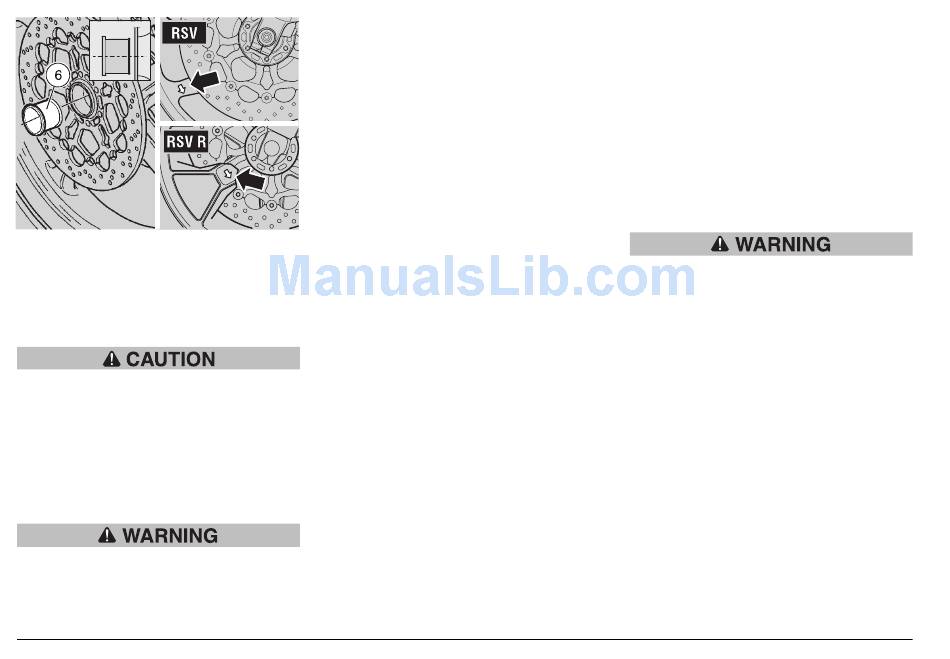

Insert the spacer ring (6) with its longer
diameter towards the outside of the
vehicle.
The arrow on the wheel side indicates
the rotation direction.
Upon reassembly, make sure that the
wheel is positioned correctly: the arrow
must be visible on the left side of the
vehicle.
◆
Position the wheel between the fork legs
on the support (1).
Danger of injury. Do not introduce your
fingers to align the holes.
◆
Move the wheel until its central hole and
the holes on the fork are aligned.
98
use and maintenance RSV mille TUONO
◆
Introduce the wheel shaft (7) completely
from the left side.
NOTE
Make sure that the wheel shaft
(7) is completely inserted.
◆
Position the washer (3) and tighten the
wheel nut (2) manually.
NOTE
In this phase, for the temporary
tightening of the two wheel shaft clamp
screws (5) (left side), the driving torque
value need not be respected.
◆
Screw the two wheel shaft clamp screws
(5) (left side) and tighten them as much
as necessary to lock the rotation of the
wheel shaft (7).
◆
Tighten the wheel nut (2) completely.
Wheel nut (2) driving torque: 57.859 Ftlb
(80 Nm).
◆
Tighten the two wheel shaft clamp
screws (4) (right side).
W h e e l s h a f t c l a m p s c r e w d r i v i n g
torque: 8.679 Ftlb (12 Nm).
◆
Loosen the two wheel shaft clamp
screws (5) (left side).
◆
Put back the front brake calipers, see p.
99 (FRONT BRAKE CALIPERS
◆
With pulled front brake lever, press the
handlebar repeatedly, thrusting the fork
downwards. In this way the fork legs will
settle properly.
- RSV mille R TUONO
◆
Position the vehicle on the side stand,
see p. 82 (POSITIONING THE VEHICLE
ON THE STAND).
◆
Tighten the two screws (5) of the wheel
shaft clamp (left side).
Wheel shaft clamp screw driving torque
(5): 8.679 Ftlb (12 Nm).
◆
Make sure that the following components
are not dirty:
– tire;
– wheel;
– brake discs.
After reassembly, pull the front brake
lever repeatedly and check the correct
functioning of the braking system.
Have the driving torques, centering and
balancing of the wheel checked by your
aprilia Official Dealer, in order to avoid
accidents that may be harmful for you
and/or other people.
).
