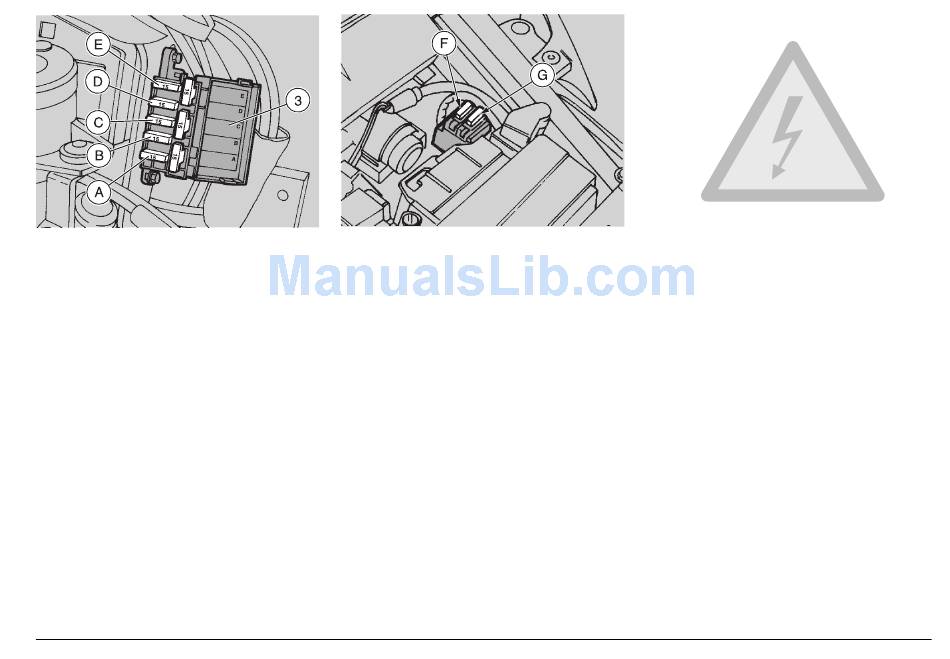

A R R A N G E M E N T
O F
SECONDARY FUSES
A) From voltage regulator to:
high beam relay, low beam relay.
B) From voltage regulator to:
coils, engine stop relay, fuel pump.
C) From ignition switch to:
electric fans, clock.
D) From ignition switch to:
parking lights, rear stoplights, horn,
dashboard lights, direction indicators.
E) From ignition switch to:
electronic control unit, fuel pump relay,
engine stop relay.
NOTE
Three fuses are spare fuses.
T H E
1 5 A
ARRANGEMENT OF THE 30A MAIN
FUSES
F) From battery to: ignition.
G) From battery to: ignition.
NOTE
One fuse is a spare fuse.
