Printer Part Names
m Maintenance Cartridge
The cartridge that vacuums and collects excess ink.
Replace the maintenance cartridge when a message
appears prompting you to replace the cartridge.
(→ P.4-14)
n Moving Handles
Grasp the handles provided on the base of the printer to
lift or move the printer.
o Maintenance Cartridge Cover
Open this cover to replace the maintenance cartridge.
(→ P.4-14)
p Stand
This is a table designed specially for this printer. Casters
are attached to the legs to make it easy to move. An
optional Media Take-up Unit can also be installed.
q Stopper
The part that locks the casters of the printer stand.
1- 3

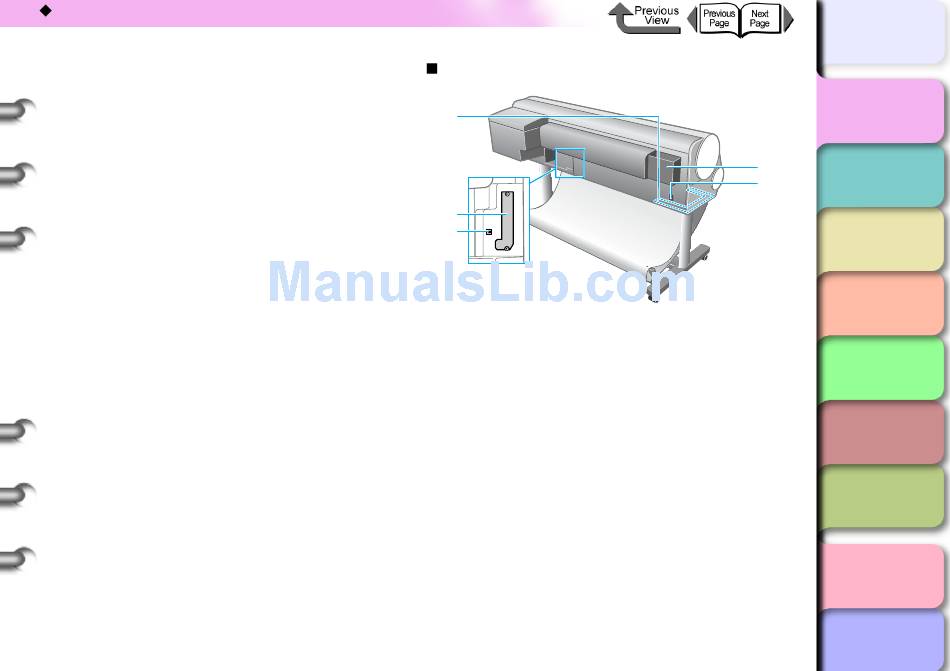

Back View

a
b
c
a Moving Handles
Grasp the moving handles provided on the base of the
printer to lift or move the printer.
b Expansion Board Slots
Provided for installing a network interface board or
IEEE1394 expansion board. Remove the two screws to
insert the board. (→Quick Start Guide)
Printers sold in the U.S.A. are shipped with the Network
board installed as a standard item (not an option).
c USB Port
This is the communication port for USB High Speed 2.0.
Connect the USB cable here to connect the printer to the
computer via USB. (→Quick Start Guide)
d Accessory Pocket
Holds the printer manual, tools for assembly, and extra
ink tanks.
e Power Supply Connector
Provides a connection point for the printer power cord.
