What's On the Operation Panel?
What's On the Operation Panel?

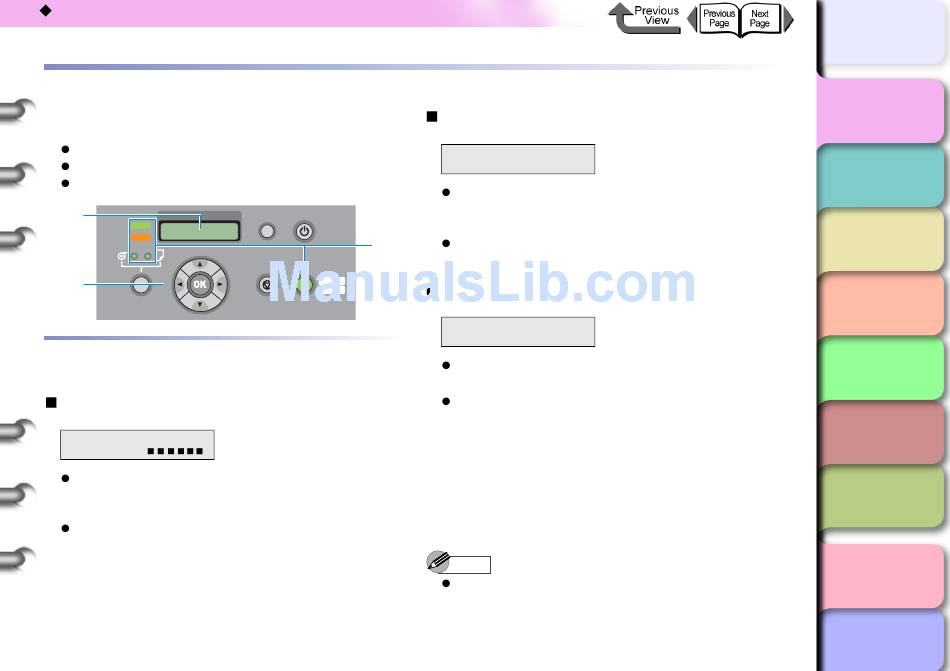

The printer operation panel of this printer provides a display
(a), 10 buttons (b) and 5 lamps (c).
"Viewing the Display" (→ P.1-11)
"Using the Operation Panel Buttons" (→ P.1-12)
"Reading Operation Panel Lamps" (→ P.1-14)
a
Data
Message
b
Viewing the Display
The display shows the current status of the printer.
Standby
Online
BK
Line 1:
The first line of the display shows the current operating
status of the printer.
Line 2:
The abbreviation for the currently installed black ink
tank (Bk for Photo Black Ink, MBk for Matte Black Ink)
is displayed on the left. (→ P.2-2)
The level of the ink supply in each ink tank is displayed
in the center, and the amount of space remaining in the
maintenance cartridge is displayed on the right as a
percentage.
1- 11
Information Power
c
Cleaning
(3 sec.)
Stop/Eject
(1 sec.) Online
Offline
Menu

Print Job Processing

Printing
Line 1:
The first line of the display shows the current
processing status of the printer.
Line 2:
Displays the job name and other information.
Function Menu Display
MAIN MENU
↓
Media Type
Line 1:
Displays the name of the menu or menu item.
Line 2:
Displays the currently selected menu item.
A right arrow at the right end of the line indicates that
there are more options.
A down arrow at the right end of the line indicates that
there are more menu sublevels. When both cases
exist, you will see a down arrow and right arrow
displayed alternately.
Note
For more details about the function menus, refer to
"How to Perform Menu Settings"
Chapter 1
Basic Use
Chapter 2
Using Various Media
Chapter 3
Printing by Objective
Chapter 4
Maintenance
Chapter 5
Using the Printer
in a Network
Environment
Chapter 6
Troubleshooting
Chapter 7
Operating the
Function Menu
(→ P.1-17).
