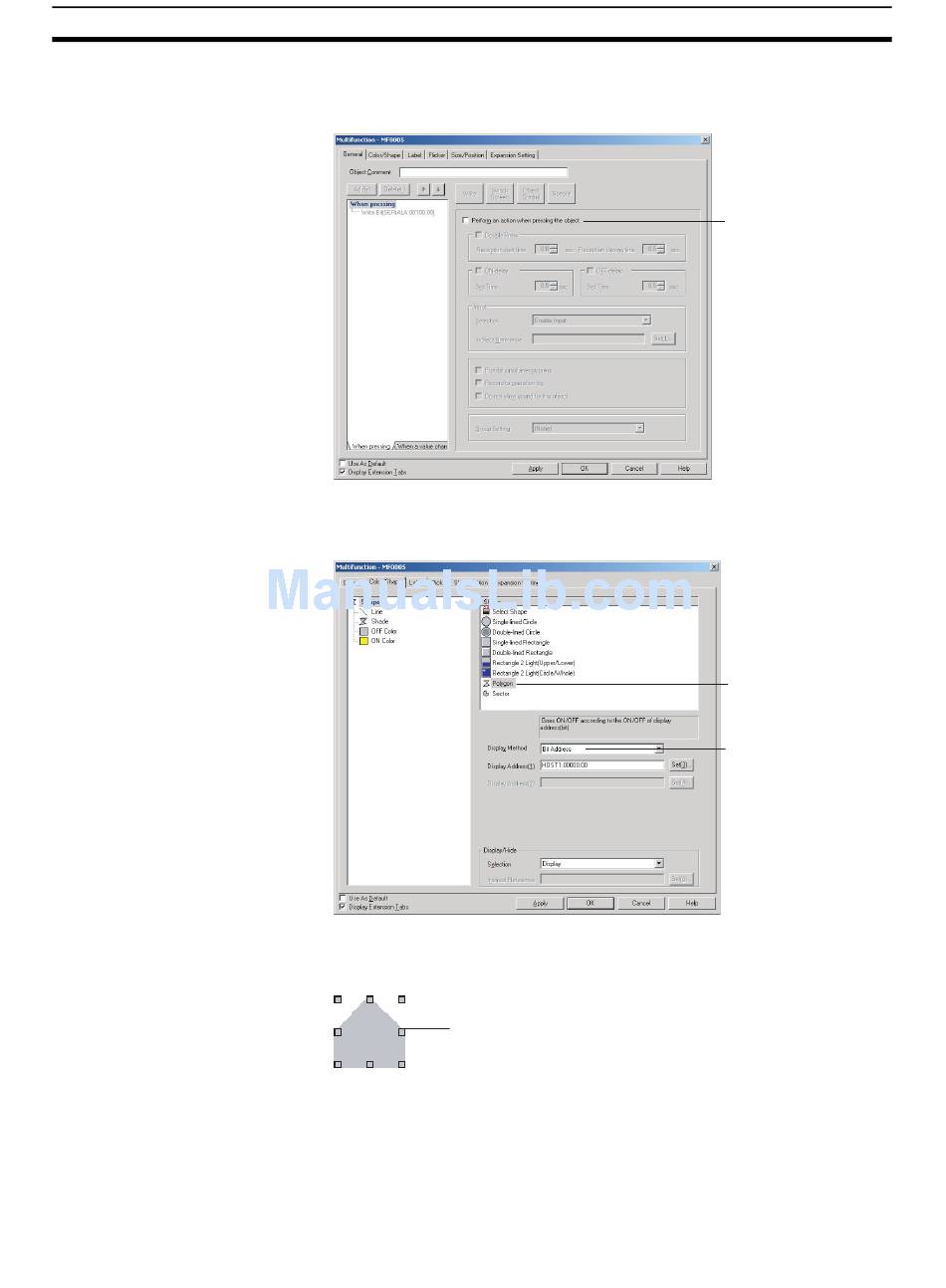

Creating Polygonal Lamps
74
2. Open the When pressing Tab Page in the action item list.
Clear the selection of the Perform an action when pressing the object op-
tion.
3. Open the Color/Shape Tab Page and select Polygon as the shape.
Set Bit Address as the display method, and HOST1:0.0 as Display Address
1.
4. Click the OK Button to close the Property Setting Dialog Box. The shape
of the Multifunction Object will change to a polygon. The object will be dis-
played as a pentagon.
The shape is changed to a pentagon.
Section 4-18
Clear the Perform
an action when
pressing the object
option.
Select Polygon.
Select
Bit Address
and
HOST1:0.0.
