Installing the CX-Designer

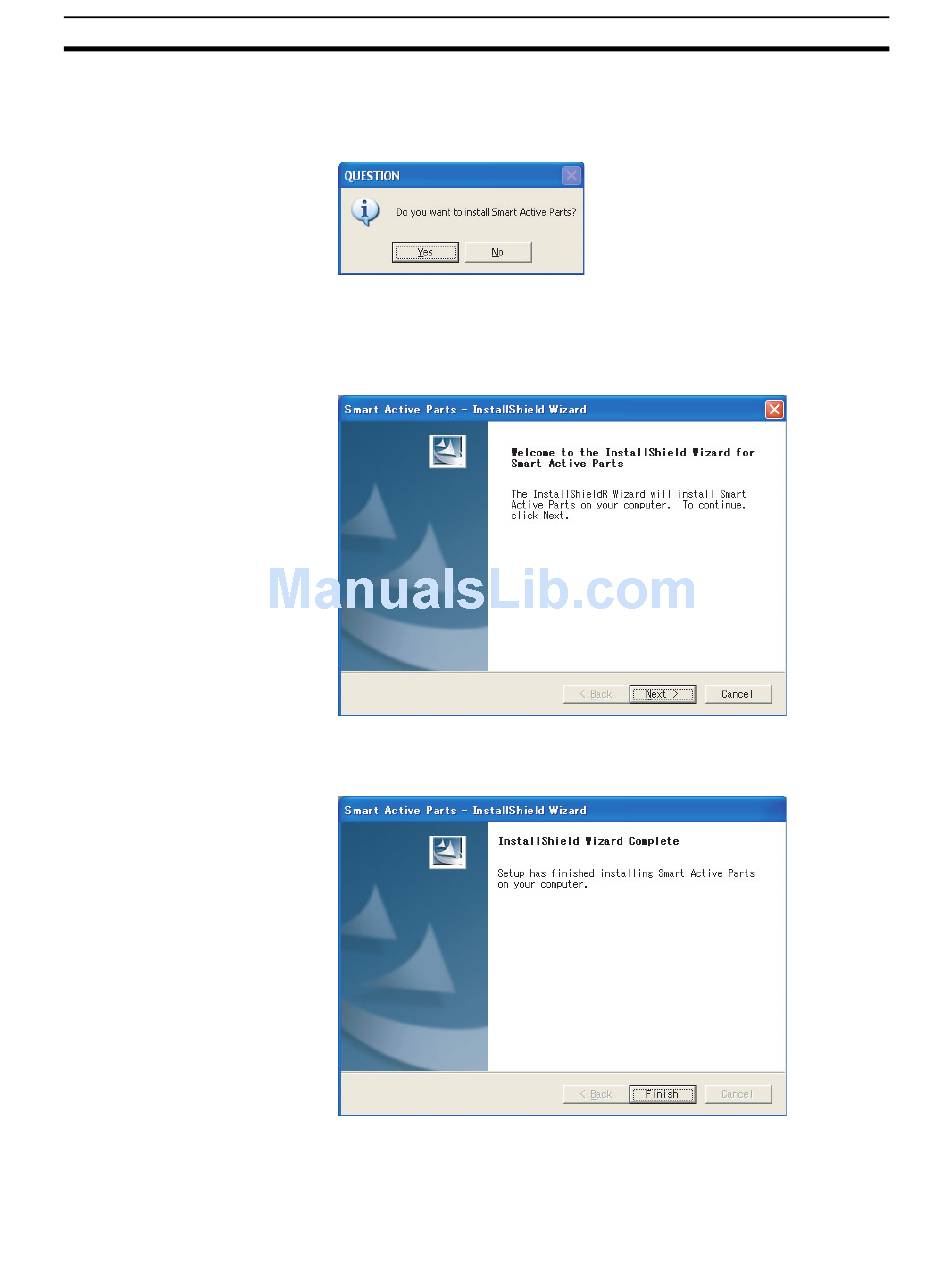

5. When CX-Designer installation has been completed, a message to confirm
installation of Smart Active Parts will be displayed. Click the Yes Button to
start the installation. If Smart Active Parts installation is not required, click
the No Button and proceed to step 10.
Smart Active Parts are libraries containing setting/monitoring screens
(e.g., Position Control Unit setting screens and Temperature Controller
monitoring screens).
6. The following dialog box will be displayed. Install the software according
the instructions given in window messages.
7. During installation, the installation progress is displayed as a percentage.
When installation has been completed, the following dialog box will be dis-
played. Click the Finish Button.
Section 2-2
15
