Replacing a Lamp with a Button

4-17 Replacing a Lamp with a Button

Procedure
1,2,3...
72
If a bit lamp is converted to a Multifunction Object, the functions of a button
and other functions can be added by simply changing property settings with-
out creating new objects.
Bit lamp
Convert
Similarly, converting to a Multifunction Object makes it easy to add new func-
tions to buttons and lamps that have already been created.

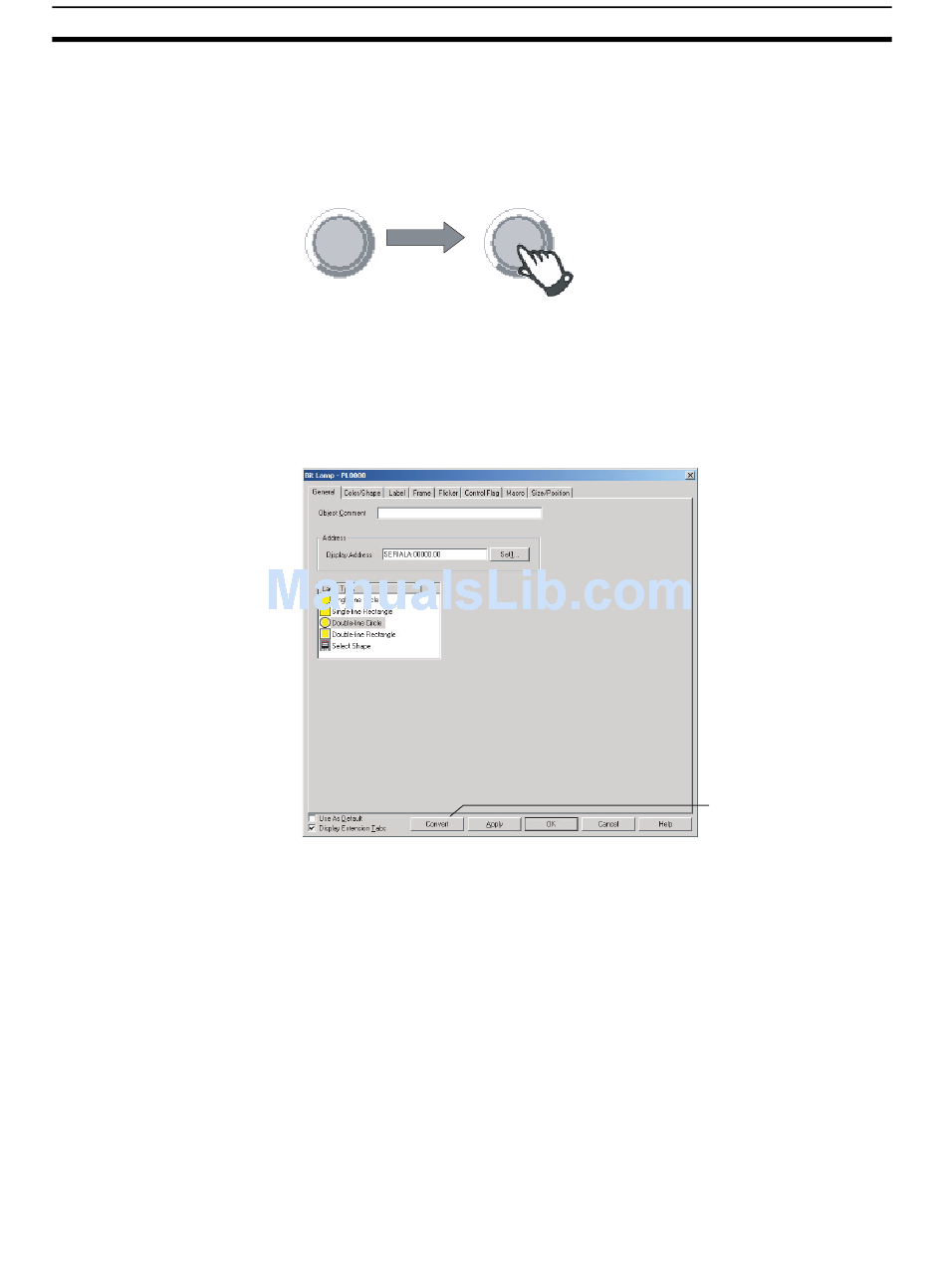

1. Open the Bit Lamp Property Setting Dialog Box.
2. Click the Convert Button to convert the bit lamp to a Multifunction Object.
3. The property settings for the Multifunction Object will open automatically.
In the General Tab Page specify Perform an action when pressing the ob-
ject option to set the function for when the Multifunction Object is pressed.
Multifunction Object
Bit lamp settings can be left
unchanged and settings for
button operations can be added
to create a "Button + Lamp"
object.
Touch operations also enabled
Section 4-17
Click the Convert Button.
