Creating Screens Using Symbols
1,2,3...
1,2,3...
48

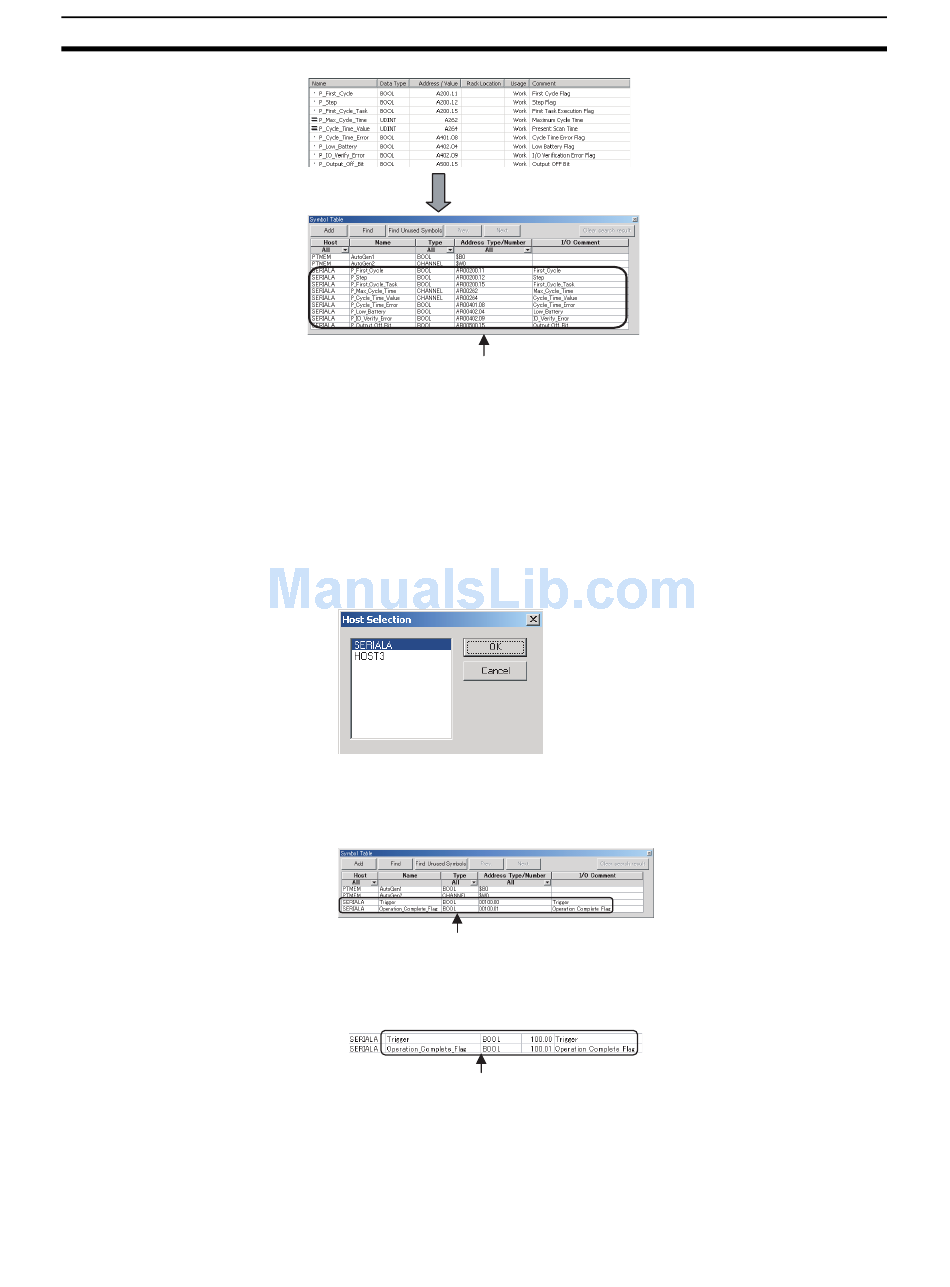

CX-Programmer symbols are copied and
pasted to the CX-Designer symbol table.
The same symbol as the CX-Programmer
symbol is added.
Procedure
Copying CX-Programmer Symbols to the CX-Designer
1. Start CX-Programmer and open the project with the symbol to be shared.
2. Select the symbol from the CX-Programmer symbol table.
3. Open the CX-Designer symbol table and paste the symbol.
4. If a host address is set for the symbol, select the applicable host for the
destination.
Copying CX-Designer Symbols to the CX-Programmer
1. Select the symbol from the CX-Designer symbol table and copy it to the
CX-Programmer.
Copy the symbol for which a PLC address
is allocated and paste it to Excel.
2. Paste to Excel. Select and copy the cells in Excel other than those in the
Host column.
This section is copied.
Section 4-1
