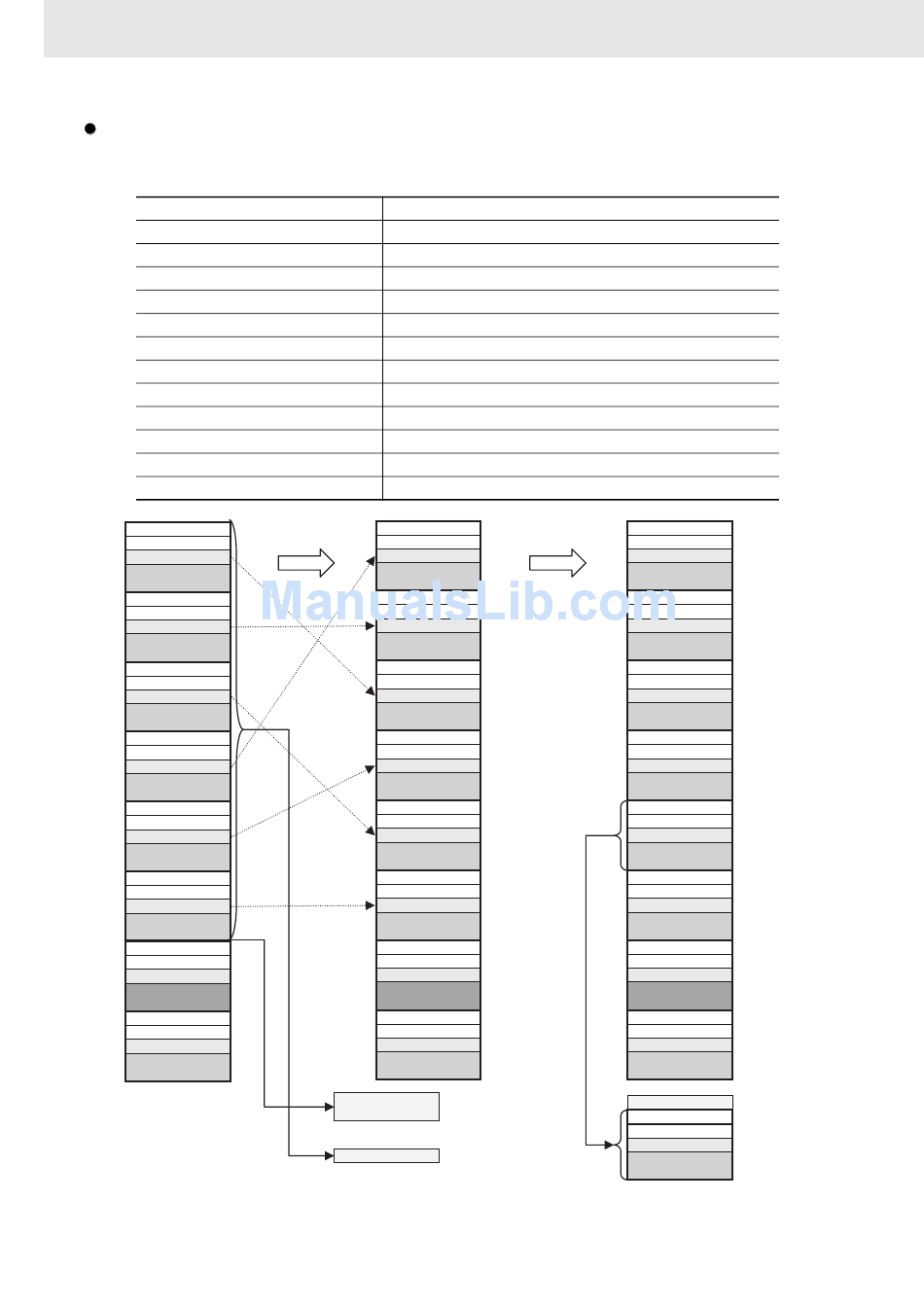

Sorting and Then Searching Tracking Data
The tracking data table is sorted according to the delivery code and then the data is searched for
delivery code A200 0038 hex.
First word of first record
Record length
Number of records
First word of sorting results
Sort key
Sort options
Setting to end sorting
Sort results output to index register
First word of search results
Search key
Setting to end search
Search method
Search results output to index register Output disabled
D1000
#0005
#08335642
D1005
#0008
#06219836
D1010
#0007
#A2000038
D1015
#0001
#0092DDC4
D1020
#0006
#33900004
D1025
#0002
#E830EDFF
(Not valid.)
D1030
#FFFFFFFF
(Not valid.)
D1035
606
D1000
5
8
D200
Delivery code
Ascending order, Split sort disabled (complete in one cycle)
Enabled for end data (delivery code = FFFF FFFF hex)
IR1
D100
Delivery code
Enabled for end PLC memory address (search results output)
Split search
Step 1
#0001
#0092DDC4
The records are
sorted according to
delivery codes
#0008
using the RSORT2
#06219836
instruction.
#0005
#08335642
#0006
#33900004
#0007
#A2000038
#0002
#E830EDFF
(Not valid.)
#FFFFFFFF
(Not valid.)
IR1
Address of D1030
D200
6
Step 2
The tracking data
is searched using
the RSRCH2=
instruction.
D100
Number of records
to sort
CS/CJ/NSJ Series Instructions Reference Manual (W474)
#0001
#0092DDC4
#0008
#06219836
#0005
#08335642
#0006
#33900004
#0007
#A2000038
#0002
#E830EDFF
(Not valid.)
#FFFFFFFF
(Not valid.)
4 Record number
#0007
#A2000038
