3. Instructions
Sample program

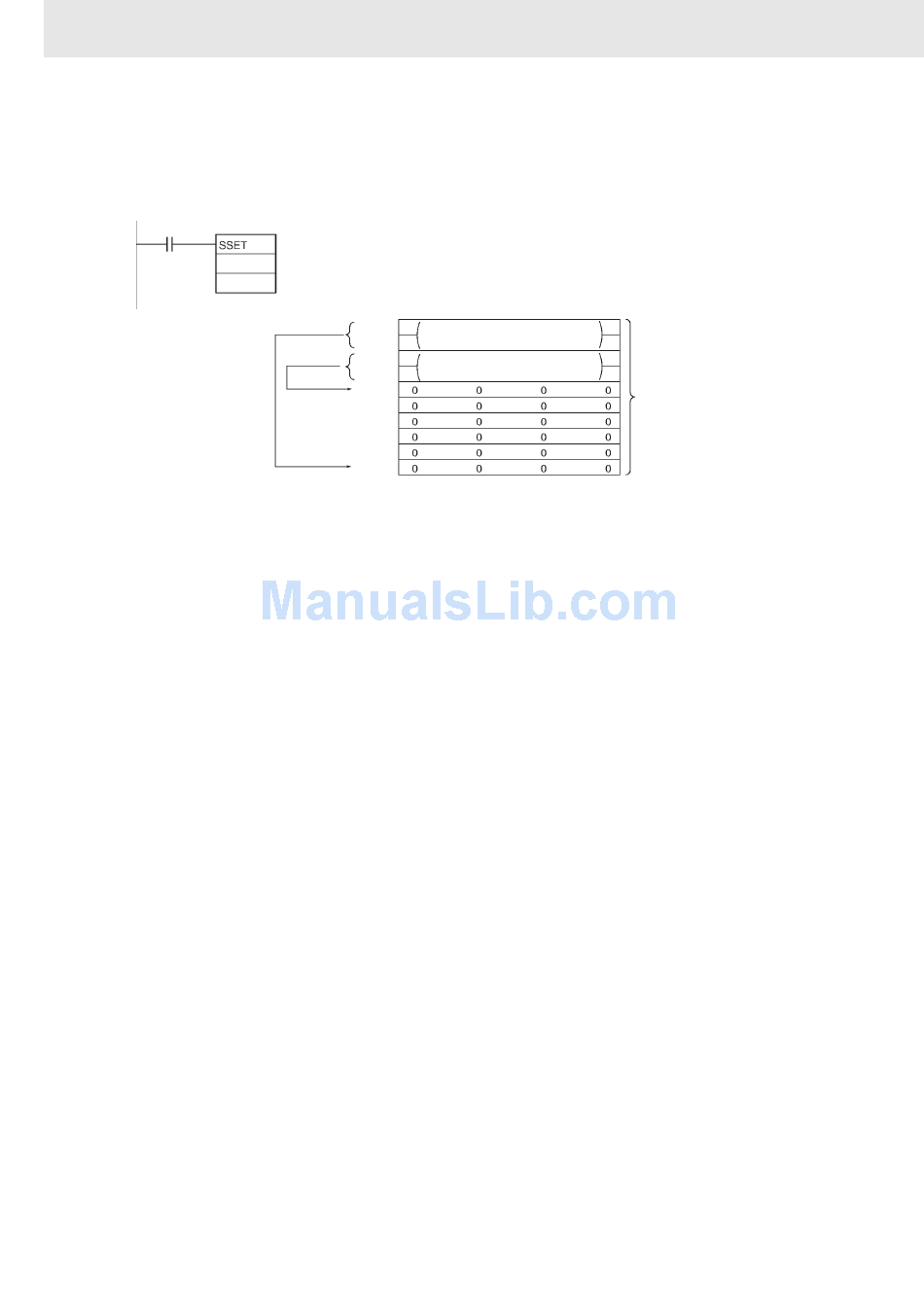

When CIO 0.00 is ON in the following example, SSET(630) secures a 10-word stack from D0 to D9. D0
and D1 contain the PLC memory address of the last word in the stack. D2 and D3 contain the stack
pointer. The stack itself begins in D4.
0.00
Last word
in stack
548
D0
&10
D0
PC memory address
D1 of last word in stack
D2
Stack pointer
D3
D4
Stack
D5
pointer
D6
D7
D8
D9
PC memory address
10 words
