Battery level indicator (battery)
Each battery has its own level indicator.
2

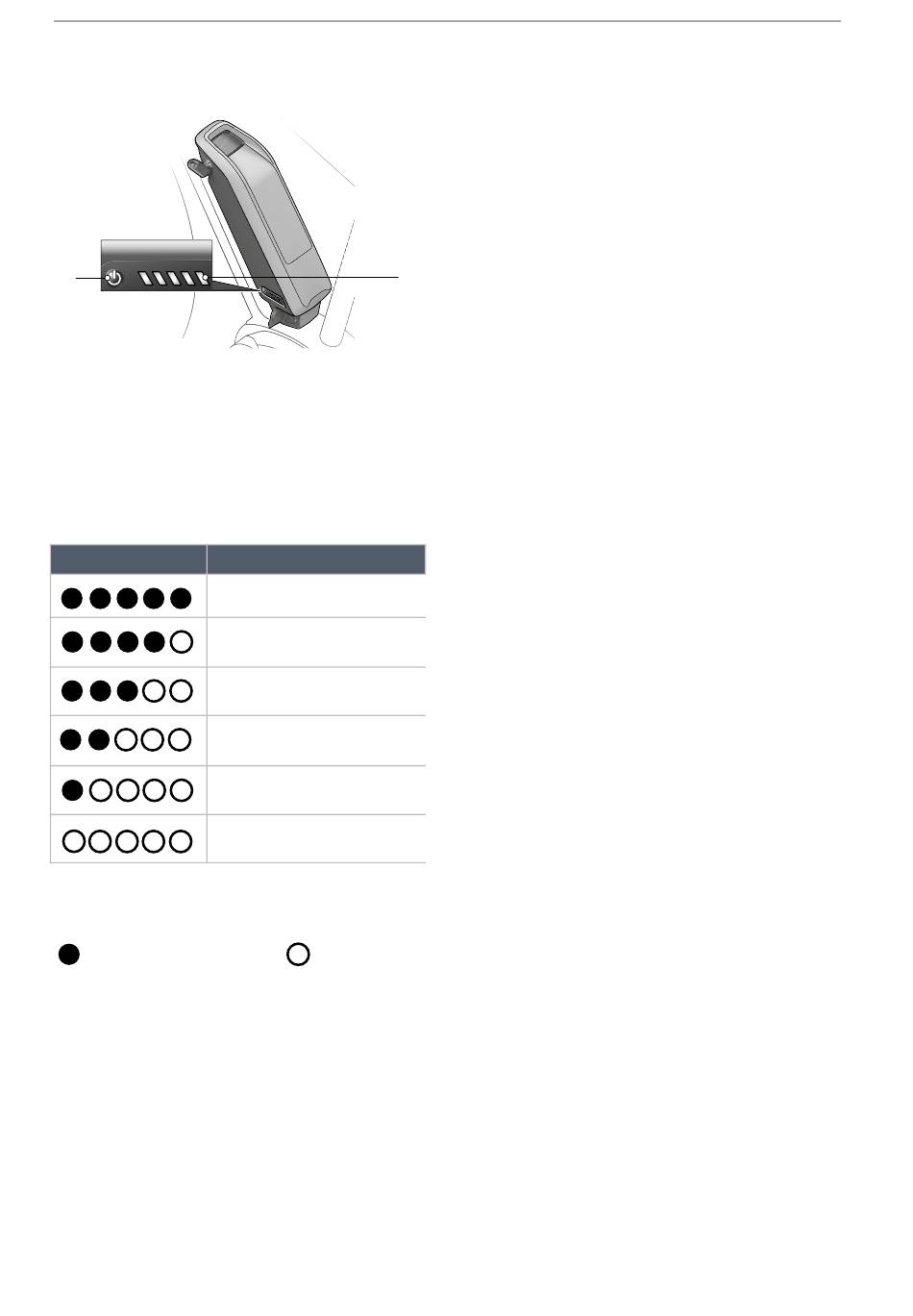

Figure 71: Position of battery level indicator on seat tube
battery
1
On-Off button (battery)
2
Battery level indicator (battery)
The five green LEDs on the battery level indicator
show the charge level when the battery is switched
on. Each LED represents 20% of battery capacity.
LED 1,2,3,4,5
Battery level
Figure 72: Battery level indicator
Symbols:
LED on
MY23I0a - 42_1.0_22.01.2024
All five LEDs will light up when the battery is fully
charged. The charge level for the activated
battery is also shown on the on-board computer.
If the battery level falls below 5%, all the LEDs on
the operating status and battery level indicator will
go out.
The battery level is still shown on the on-board
computer.
1
100...80%
79...60%
59...40%
39...20%
19...15%
5...0%
LED off
Description
93
