5.5.4
Straightening the handlebars
The handlebars must be turned so that they are
parallel to the frame and tyres for transportation.
1 Turn handlebars clockwise until they are
vertically aligned with the wheel and frame.
The way the handlebar is secured depends on
the stem.
5.5.4.1 Stem with clamping lever version I
Only applies to pedelecs with this equipment
1 Open the clamping lever on the stem quick
release.
2 Pull the locking lever on the stem upwards and
simultaneously pivot handlebars 90° to the left.
You feel the handlebars click into place.
3 Push in the handlebars.
4 Close the clamping lever on the stem quick
release.
3

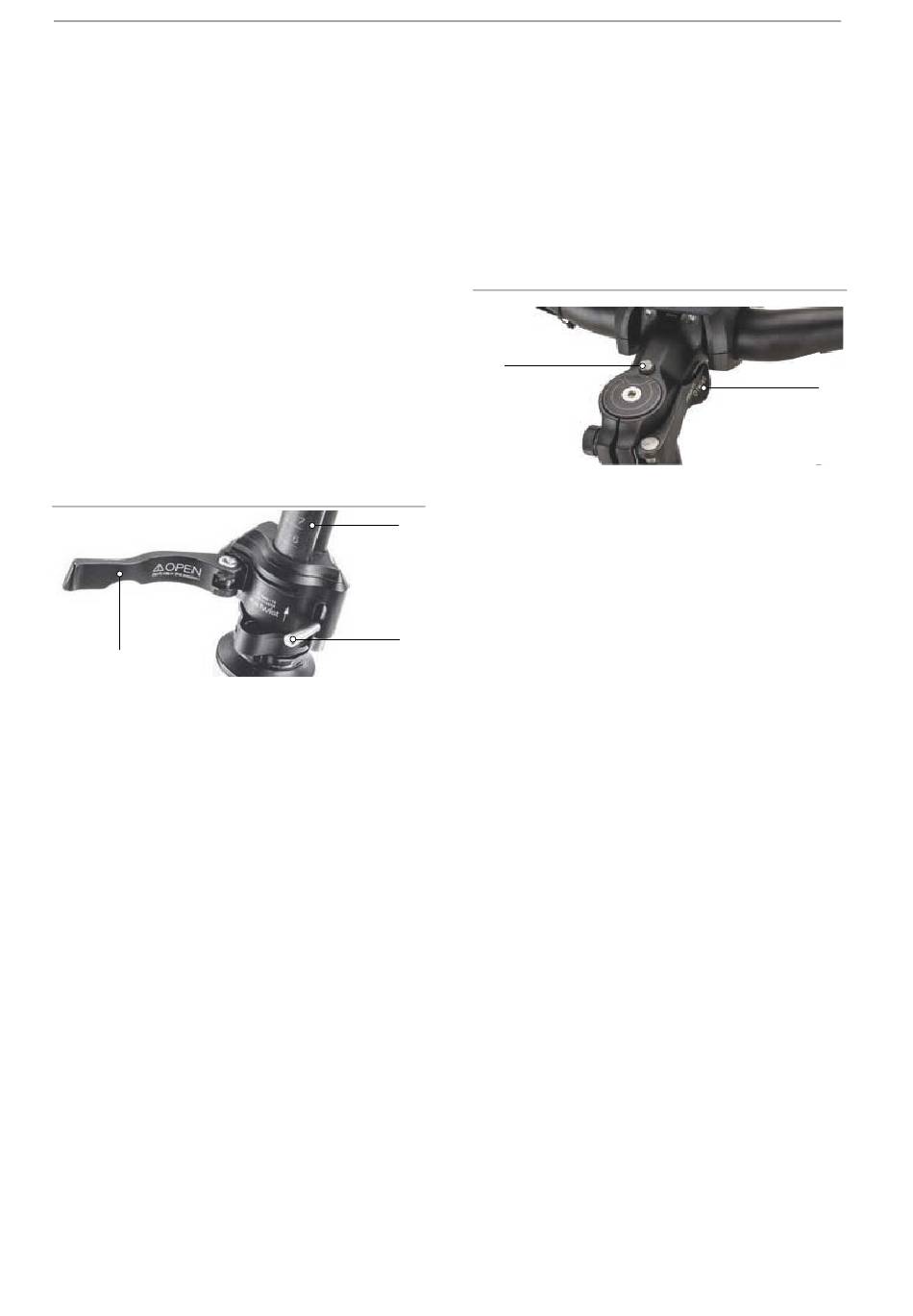

Figure 91: Opened clamping lever on the stem quick
release (3) on the stem (2), version I, with locking lever on
the stem (1)
MY23I0a - 42_1.0_22.01.2024
5.5.4.2 Stem with clamping lever version II
Only applies to pedelecs with this equipment
1 Open the clamping lever on the stem quick
release.
2 Push the unlocking knob.
3 Pivot the handlebars 90° to the right or left.
You feel the handlebars click into place.
4 Close the clamping lever on the stem quick
release.
2
Figure 92: Stem, version II with clamping lever on the
stem quick release (1) and unlocking knob (2)
2
5.6
Stem with screw
Only applies to pedelecs with this equipment
1 Remove the safety cap from the stem.
1
2 Undo the screw using a 4 mm, 5 mm, or 6 mm
Torx or hex key, depending on the type of
screw.
3 Turn the handlebars into the required position.
4 Fasten the screw using a 4 mm, 5 mm, or
6 mm Torx or hex key, depending on the type
of screw.
5 Refasten the safety cap on the stem.
Assembly
1
108
