6.5.6
Mobile holder
This phone case, used as the base for the SP
Connect system, is mounted on the stem.
Depending on the holder model, a mobile can
either be fitted directly on the handlebars or on the
handlebar stem. In the case of the first version,
the holder can be repositioned any time. When
mounted on the stem, the phone is fitted in a fixed
position. This allows it to be attached lower on the
bicycle.
Observe the operating instructions for the mobile
and the SP Connect mobile case.
Use on tarmacked roads only.
Protect mobile from theft.
6.5.6.1 Fastening the mobile
1 To attach, place the mobile which is in an SP
Connect mobile case onto the phone case.
The fastener latches into position.
2 Turn the mobile 90° to the right.
3 The fastener is locked.

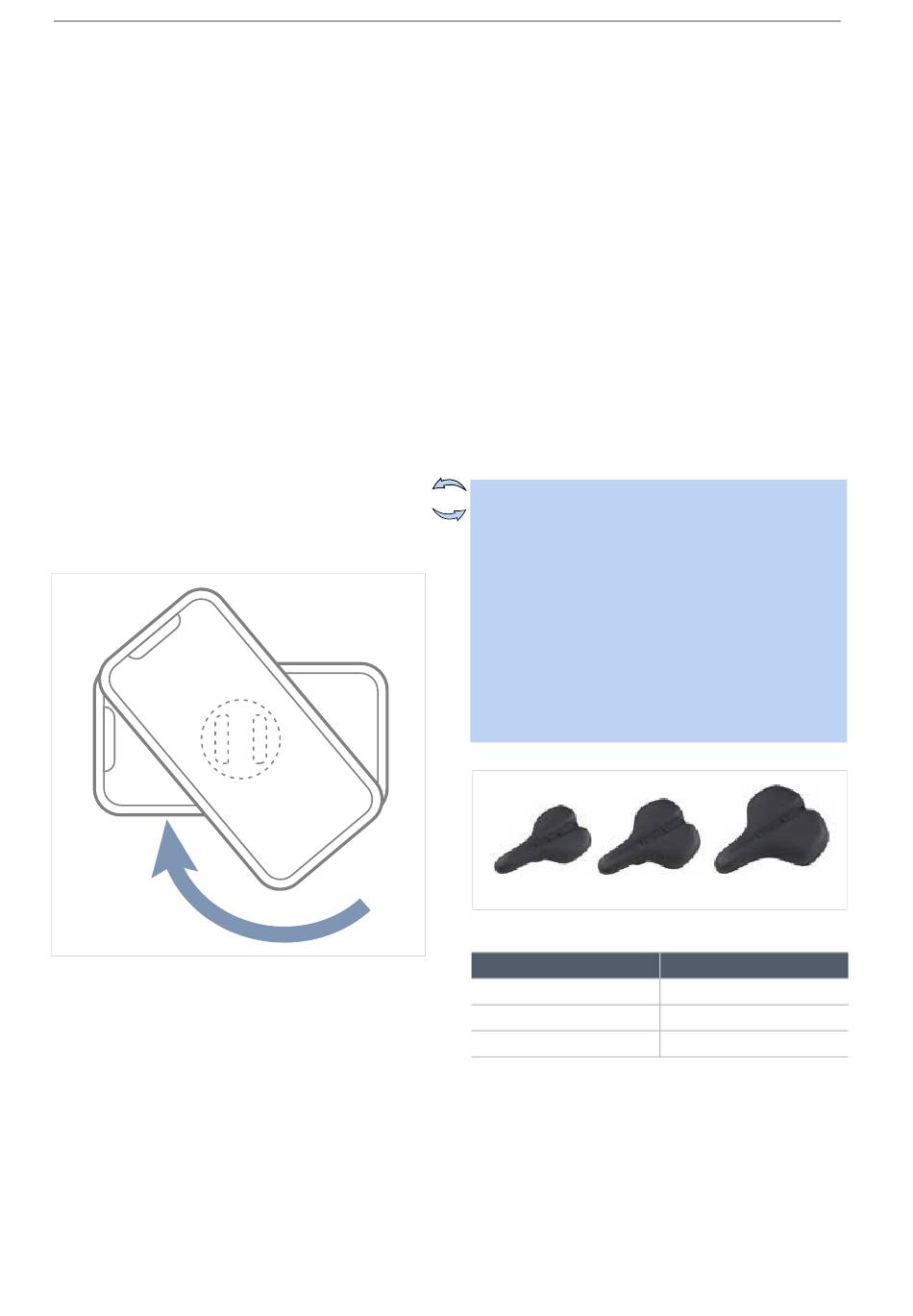

Figure 150: Locking the mobile to the right
MY23I0a - 42_1.0_22.01.2024
6.5.6.2 Releasing the mobile
1 Turn the mobile 90° to the left.
The fastener is released.
2 Remove mobile.
6.5.6.3 Suspension fork coil spring
If the desired suspension fork sag cannot be
achieved after adjustment, the coil spring
assembly must be replaced with a softer or harder
spring.
Fit a softer coil spring assembly group to
increase the sag.
Fit a harder coil spring assembly group to
decrease the sag.
6.5.7
Saddle
Saddles are components that may be replaced
§
after approval by the vehicle or parts
manufacturer. Replacing different sizes within a
product series is permitted for saddles.
Moreover, saddles may be exchanged if the
rearward offset to the series or original range of
use is not greater than 20 mm since a change in
load distribution outside the intended adjustment
range can lead to critical steering performance.
The saddle shape plays a role here. Only
saddles that are approved for use on e-bikes
may be used to replace the existing ones.
Figure 151: ZECURE (S, M and L) saddle
Description
ZECURE, hydro foam, size S
ZECURE, hydro foam, size M
ZECURE, hydro foam, size L
Operation
Article number
061-30793
061-30794
061-30795
156
