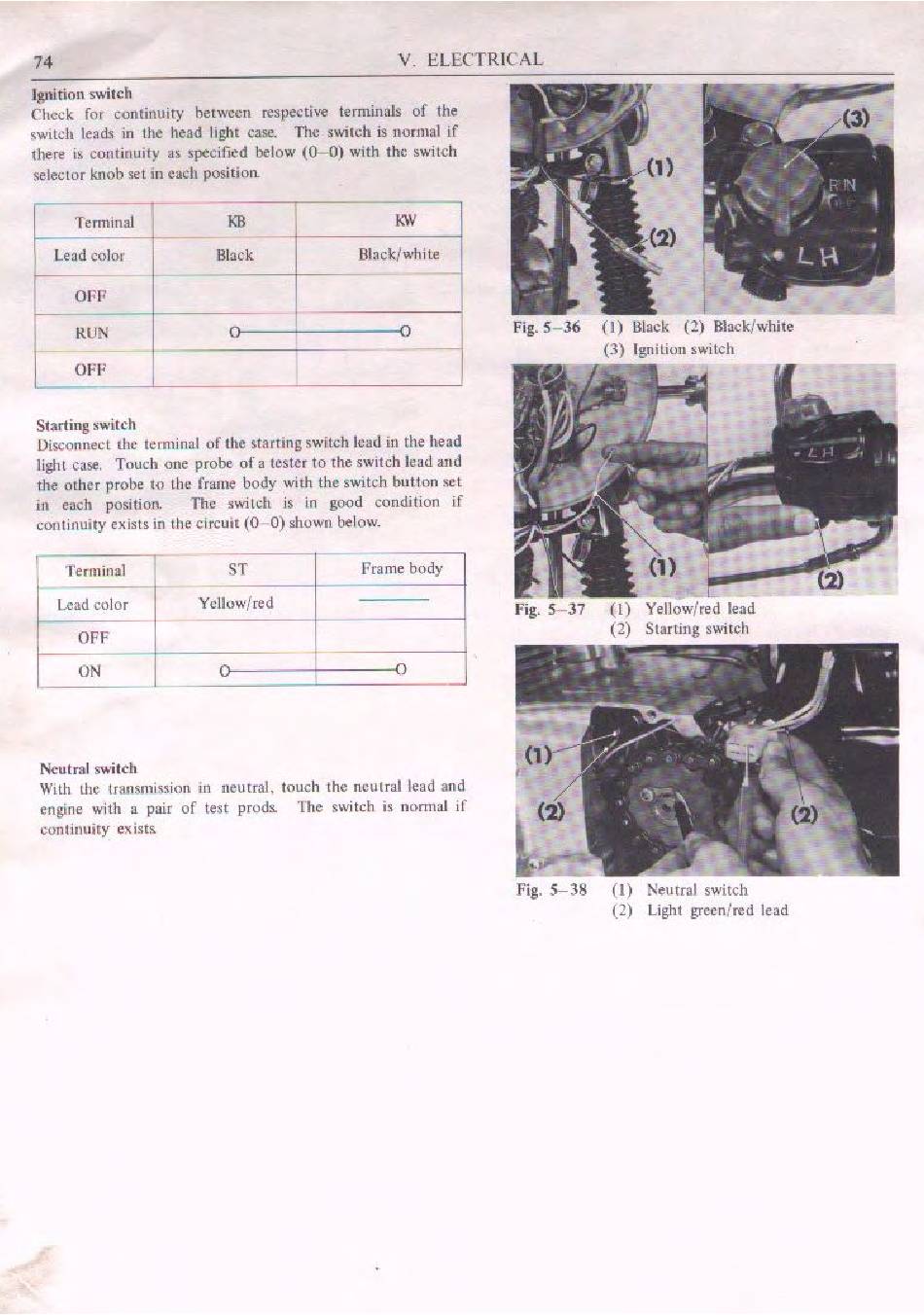

74
V.
ELECTRICAL
Ignition
switch
Check for contin11ity between respective
terminals
of the
~witch leads
in the
head light case.
The
switch
is
normal
if
there is continuity as specified below (0-0) with the swiich
selector knob set in each position.
Tenninal
Lead color
orr
..__
RUN
OPP
-
KB
Black
KW
Black/white
-
"-==9
,__
_____
,__
____ _
Starting switch
IJisconnect the terminal of
the
starting swi.lch lead in
the
head
light
case.
Touch one probe of
a
tester to the switch lead
and
the
other probe to
the
frame
body
with the switch button set
in each position.
The switch is in good condition
if
con1inuity exists in the circuit (0
-
0) shown below.
Tenninal
ST
Frame body
Lead color
Yellow/
red
OFF
ON
-
..
V
'
V
Neutral switch
With
the
tr1U1smission in neutral. touch the neutral lead and
engine with a pair of test prods.
The switch is nonnal if
continoity exists.
Fig.
5-
36
(I)
Black (2) Black/white
(3) Ignition switch
Fig.
5--37
(I)
Yellow/
red lead
(2)
Starting switch
Fig.
S-
38
(
I)
Neutral
switc
h
(2) Light
green/
red lead
