Ill. ENGTNE
Disassembly

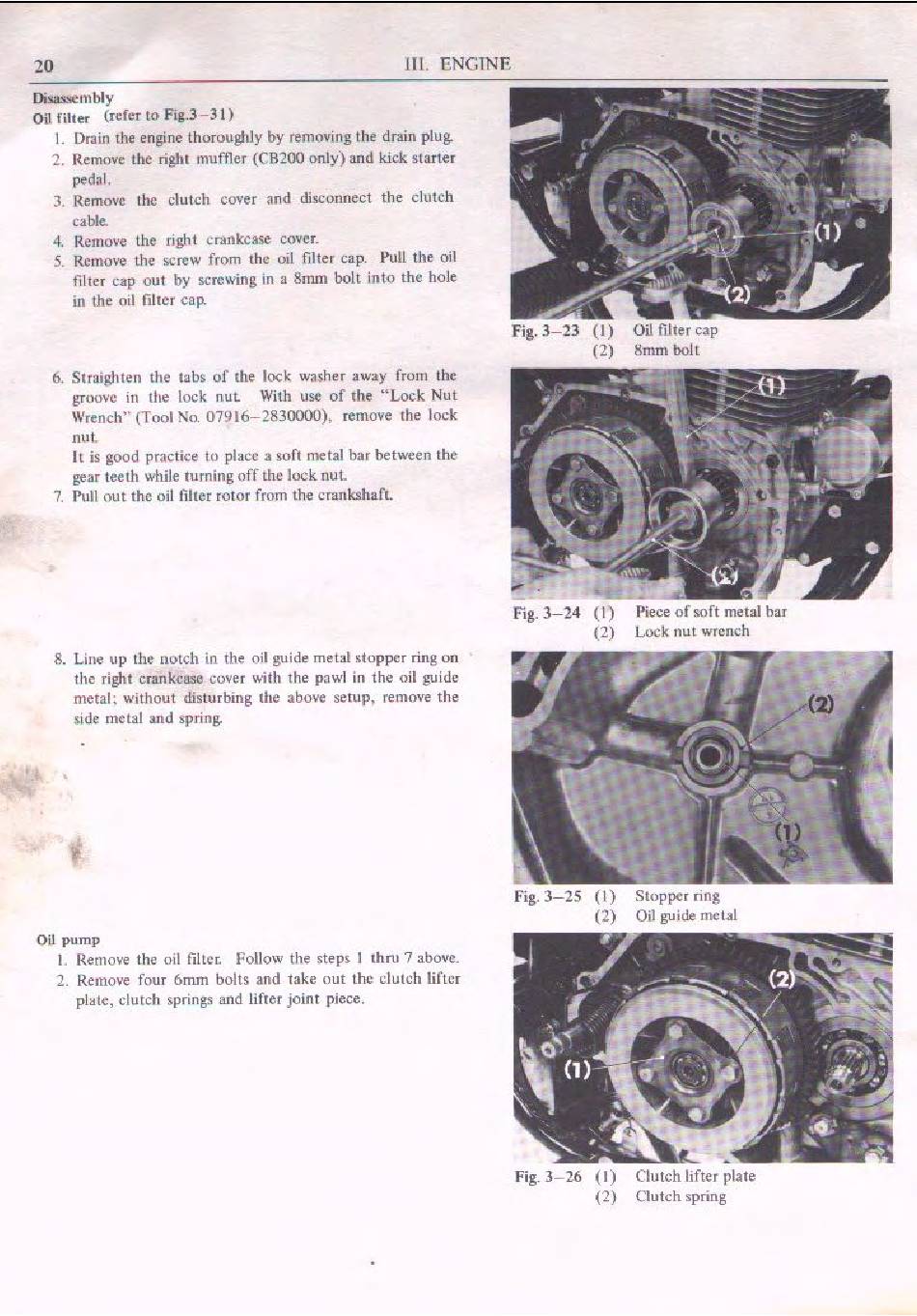

Oil filter (refer lo Fig.3 - 31)
I. Drain the engine thoroughly by removing the drain plug.
2. Remove the right muffler (CB200 only) and kick starter
pedal.
3. Remove the clutch cover and disconnect the clutch
cable.
4. Remove the right crankcase cover.
5.
Remove the screw from the oil filter cap.
Pull
the oil
filter cap out
by
screwing in a 8mm bolt into the hole
in the oil filter cap.
6. Straighten the tabs of tl1e lock washer away from the
groove in the lock nut With use of the "Lock Nut
Wrench" (Tool No. 07916-2830000), remove the lock
n\lt
It is good practice to place
a
soft metal bar between the
gear teeth while turning
off
the lock nut.
7. Pull out the oil tilter rotor from the crankshaft.
8.
Line up the not.ch in the oil guide metal stopper ring on
the right crankcase cover with the pawl in the oil guide
metal: without disturbing tl,e above setup, remove the
side metal
and
spring.
'
Oil pump
I. Remove the oil
filtcc
Follow the steps I
thno
7 above.
2. Remove four 6mm bolts and take out the clutch lifter
plate, clutch springs and lifter joint piece.
Fig.3-23
(I)
(2)
Oil
filter cap
8mm bolt
Fig.
3-24 (1) Piece of soft metal bar
(2)
Lock nut wrench
Fig. 3-25
(!)
(2)
Fig. 3-26
(1)
(2)
Stopper ring
Oil guide metal
Clutch lifter plate
llotch spring
