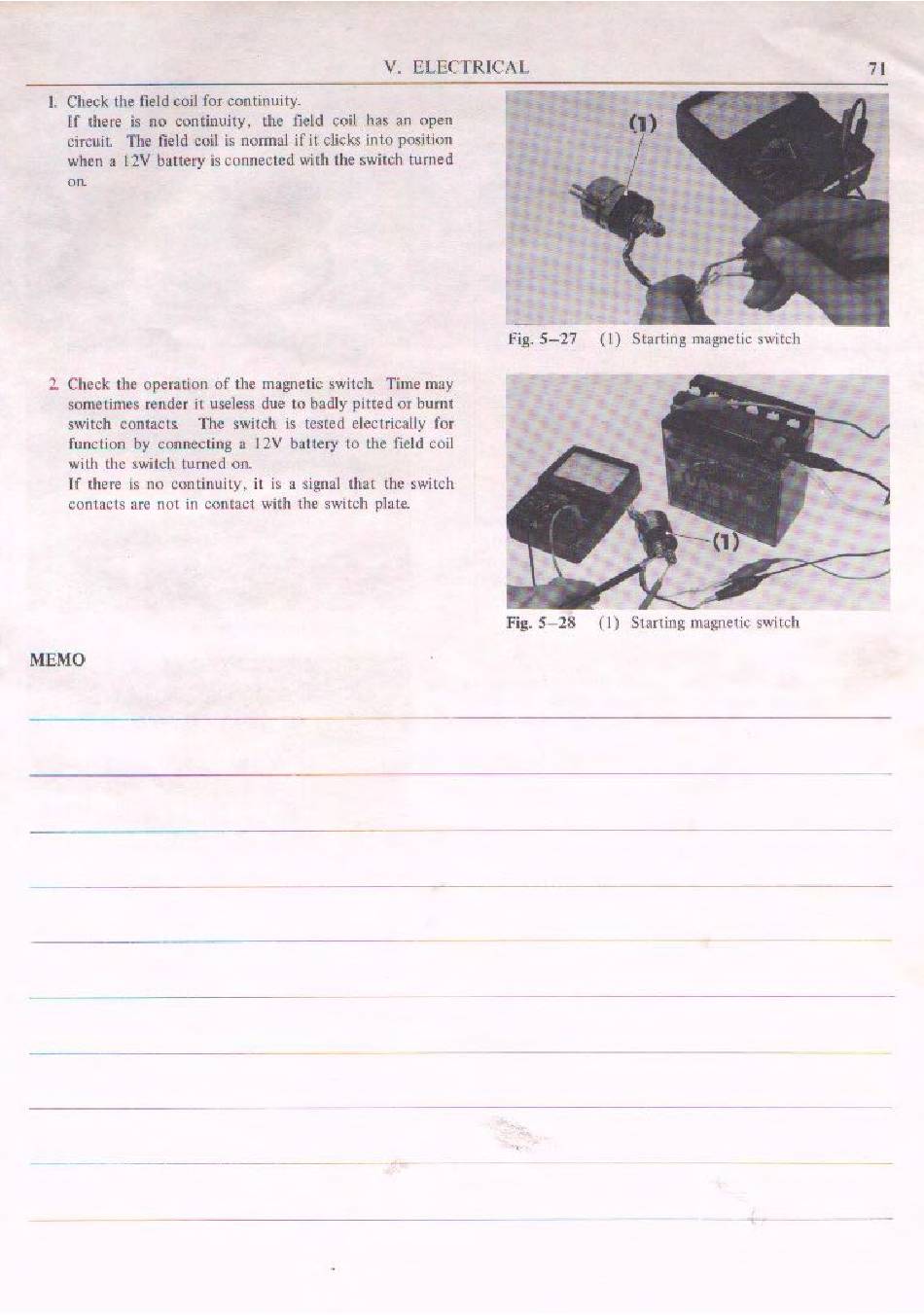

V. ELECTRICAL
I. Check the
field
coil for continuity.
If
there is no continuity,
the
field coil
has an
open
circuit The field coil is normal
if
it
clicks into
position
when a
12V
battery is connected with the switch
turned
Oft
2
Check the operation of
the
magnetic switcl, Time may
sometimes render it useless due to badly pitted or bumt
switch contact~
The switch is tested electrically for
function by connecting a 12V battery to the field coil
wilh the switch
turned
on.
1f
there is no continuity,
il is
a signal that the switch
contacts are not in contact
with
the switch plate.
MEMO
(1)
/
fig. 5-27
(
l) Starting magnetic switch
Fig.
5-
28
(
I)
Starting
magnetic
switch
71
