5-6-2 CONDITION ON/OFF: UP(018) and DOWN(019)

Description
Precautions
Flags
Example
0000
01
TR0
(018)
UP
0000
02
(019)
DOWN
Input CIO 000001
Input CIO 000002
Output CIO 000101
Output CIO 000102
Ladder Symbols
(018)
UP
(019)
DOWN
UP(018) turns ON the execution condition for one cycle at the rising edge (OFF
to ON) of the execution condition and then turns OFF the execution condition
until the next time a rising edge is detected.
DOWN(019) turns ON the execution condition for one cycle at the falling edge
(ON to OFF) of the execution condition and then turns OFF the execution condi-
tion until the next time a falling edge is detected.
Another instruction must follow UP(018) or DOWN(019), i.e., they cannot be
used as right-hand instructions.
Be careful when using UP(018) and DOWN(019) in subroutines between IL and
ILC, and between JMP and JME instructions, because the execution condition
may remain ON for more than one scan. Refer to 5-8 INTERLOCK and INTER-
LOCK CLEAR: IL(002) and ILC(003), 5-9 JUMP and JUMP END: JMP(004) and
JME(005), and 5-30 Subroutines for details.
The DIFU(013) and DIFD(014) instructions can also be used for the same pur-
pose, but they require work bits. UP(018) and DOWN(019) simplify program-
ming by reducing the number of work bits and program addresses needed.
There are no flags affected by UP(018) or DOWN(019).

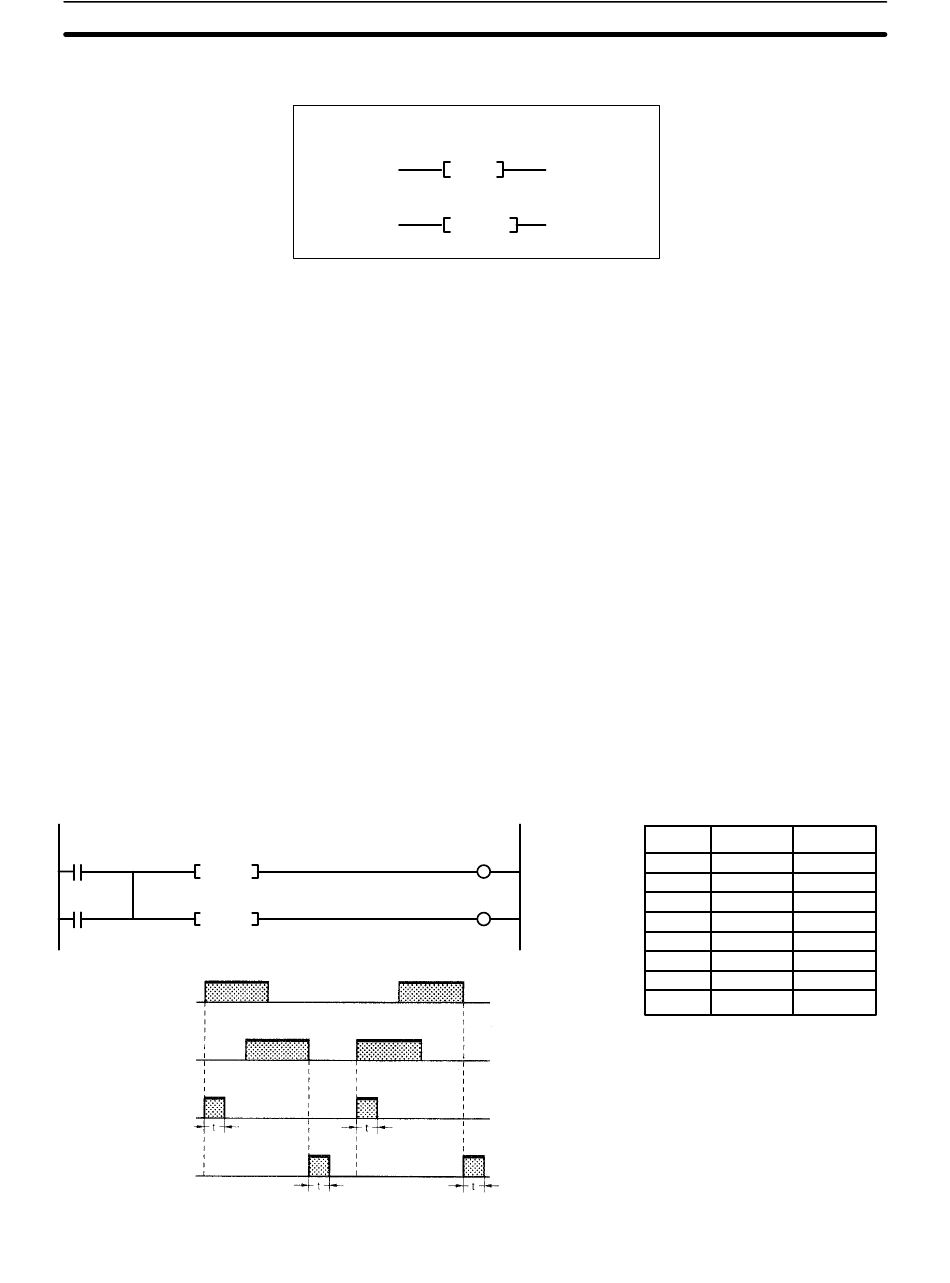

The timing chart illustrates the operation of UP(018) and DOWN(019) in the fol-
lowing example.
0001
01
0001
02
Address Instruction
00001 LD
00002 OR
00003 OUT
00004 UP(018)
00005 OUT
00006 LD
00007 DOWN(019)
00008 OUT
t: Cycle time
