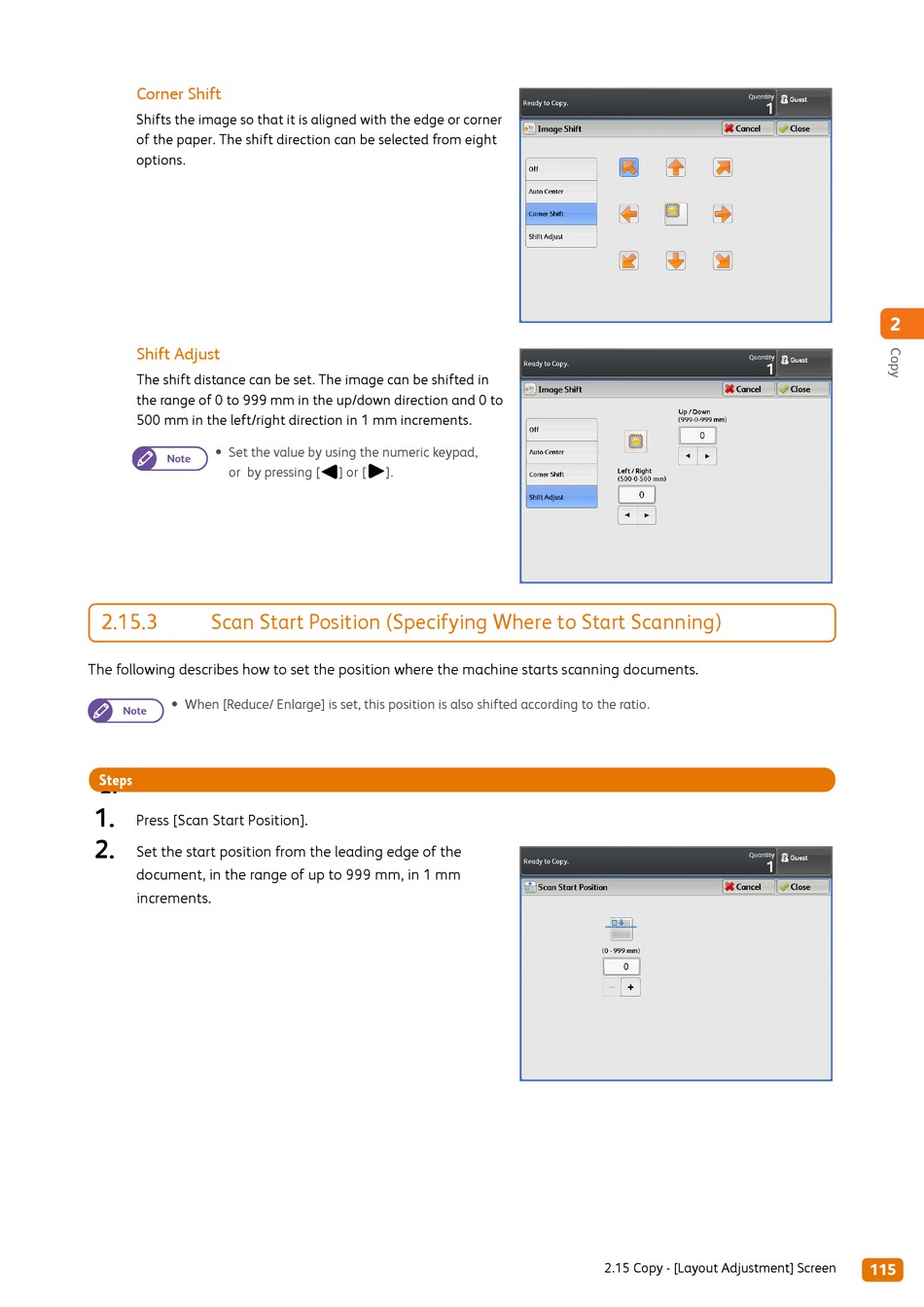

Scan Start Position (Specifying Where To Start Scanning) - Xerox Wide Format 6705 System User Manual

Corner Shift
Shifts the image so that it is aligned with the edge or corner
of the paper. The shift direction can be selected from eight
options.
Shift Adjust
The shift distance can be set. The image can be shifted in
the range of 0 to 999 mm in the up/down direction and 0 to
500 mm in the left/right direction in 1 mm increments.
Set the value by using the numeric keypad,

Note
or by pressing [
2.15.3

Scan Start Position (Specifying Where to Start Scanning)

The following describes how to set the position where the machine starts scanning documents.
When [Reduce/ Enlarge] is set, this position is also shifted according to the ratio.

Note
Steps
St
1.
Press [Scan Start Position].
2.
Set the start position from the leading edge of the
document, in the range of up to 999 mm, in 1 mm
increments.
] or [ ].
2.15 Copy - [Layout Adjustment] Screen
2
115
