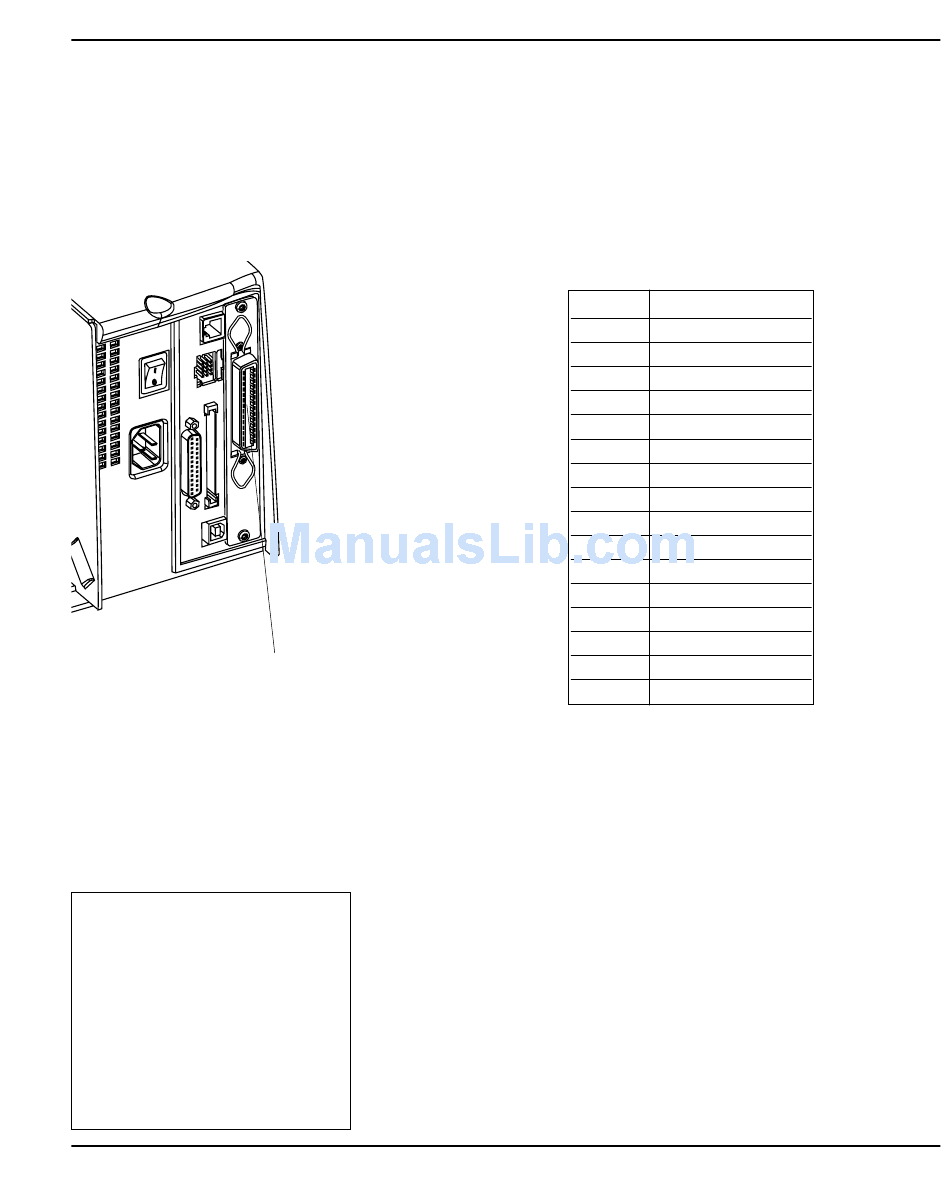

IEEE 1284
Parallel Interface
Board
"centronics:"
1
/. Nibble, byte, ECP and EPP
from printer to host are presently
not supported.
2
/. Intermec Shell either auto-
matically sets the correct std IN
and OUT port when an
application is selected, e.g. a
Windows driver, or prompts you
to select one, see chapter 8.
Intermec EasyCoder F2 – Installation & Operation Ed. 1
The EasyCoder F2 can optionally be fitted with an IEEE 1284-I
compatible parallel interface board
in Intermec Fingerprint 7.2 or later as device "centronics:". Select
"centronics:" as standard IN port by means of the instruction
SETSTDIO (by default, "uart1:" in std IN port)
Interface Cable Connectors
Computer end:
Printer end:
Appendix 3
1
. The parallel port is addressed
Depends on type of host computer.
36 pin female IEEE 1284B Centronics.
Pin Signal
1 DStrobe
2–9 Data 0–7
10 Ack
11 Busy
12 PE
13 Select
14 AF
15 Not connected
16 Ground
17 Screen
18 +5V Ext
19–30 GND
31 Init
32 Error
33-35 Not connected
36 Selectin
Communication Cables
