14.8 IEEE 1284 Parallel Interface Board

Description
Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual

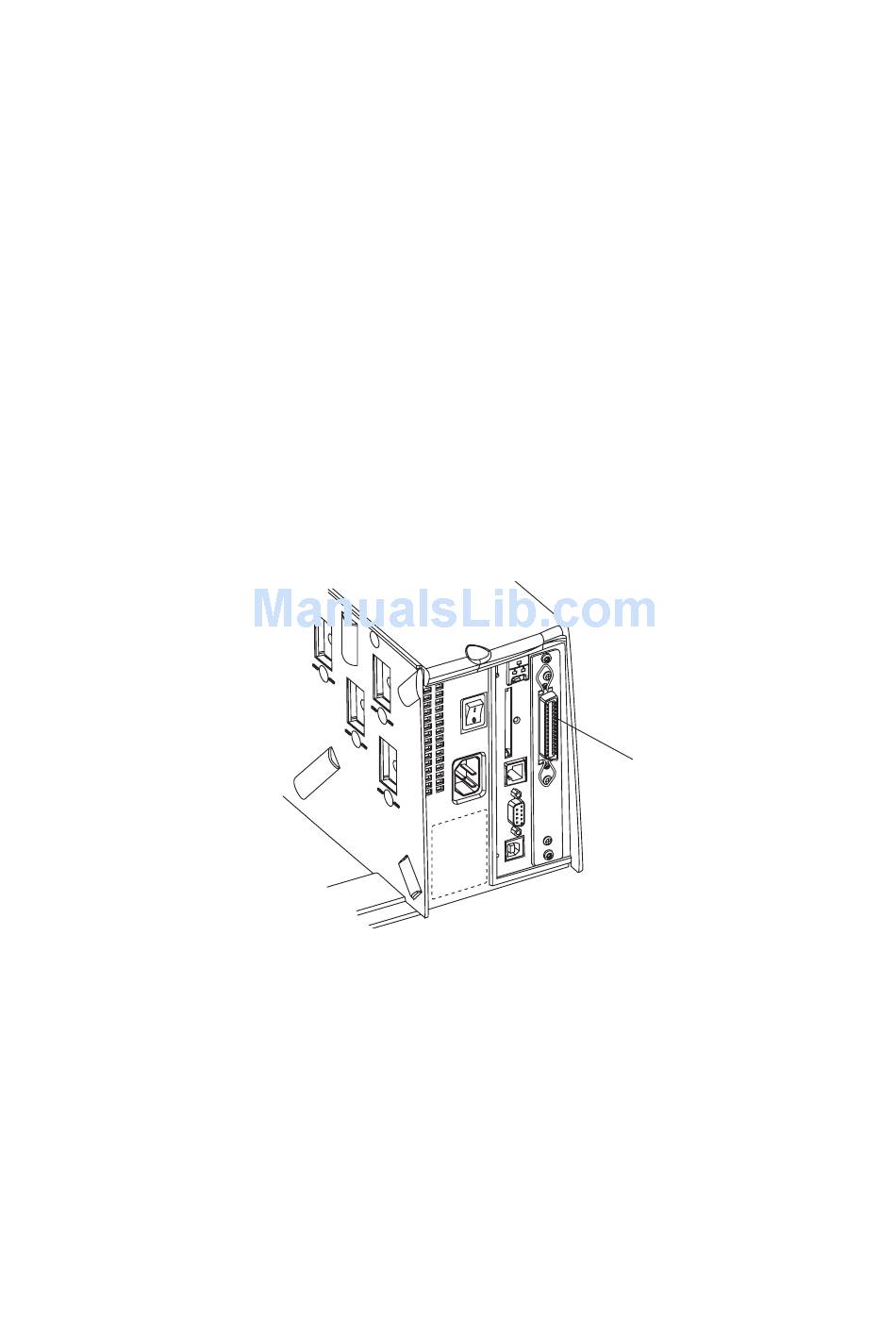

The IEEE 1284 Parallel Interface Board is an optional device for Easy-
Coder PF2i, PF4i, and PF4i Compact Industrial. It provides these printers
with one parallel interface port and is supported by both Fingerprint and
IPL.
The parallel communication port is addressed in Intermec Fingerprint as
device centronics: (communication channel 4). The board is IEEE1284-I
compatible. Nibble, byte, ECP, and EPP modes from printer to host are
not presently supported.
The IEEE 1284 Parallel Interface kit contains:
• One Parallel Interface Board
• One hexagonal spacer (not used with EasyCoder PF2/4i-series)
• Two fl at cables (only one is used with EasyCoder PF2/4i-series)
• One Installations Instructions booklet.
There are neither any straps nor any other types of physical confi guration
on this interface board, nor any options in the Setup Mode.
Chapter 14—Interfaces
IEEE 1284 interface
191
