Paper Roll Size

Bobbin (Ø 38 mm/1.5")
Bobbin (Ø 76 mm/3")
An external paper supply must
be protected from dust, sand,
grit, etc. Any hard particles,
however small, can damage the
printhead.
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
The following restrictions apply to paper rolls fitted inside the printer.
Only the width and web thickness restrictions apply to external pa-
per supplies.
Core
Diameters:
Width:
The web must be wound up on the core in such a way that the
printer can pull the end of the web free. Otherwise the thermal
transfer ribbon may be damaged.

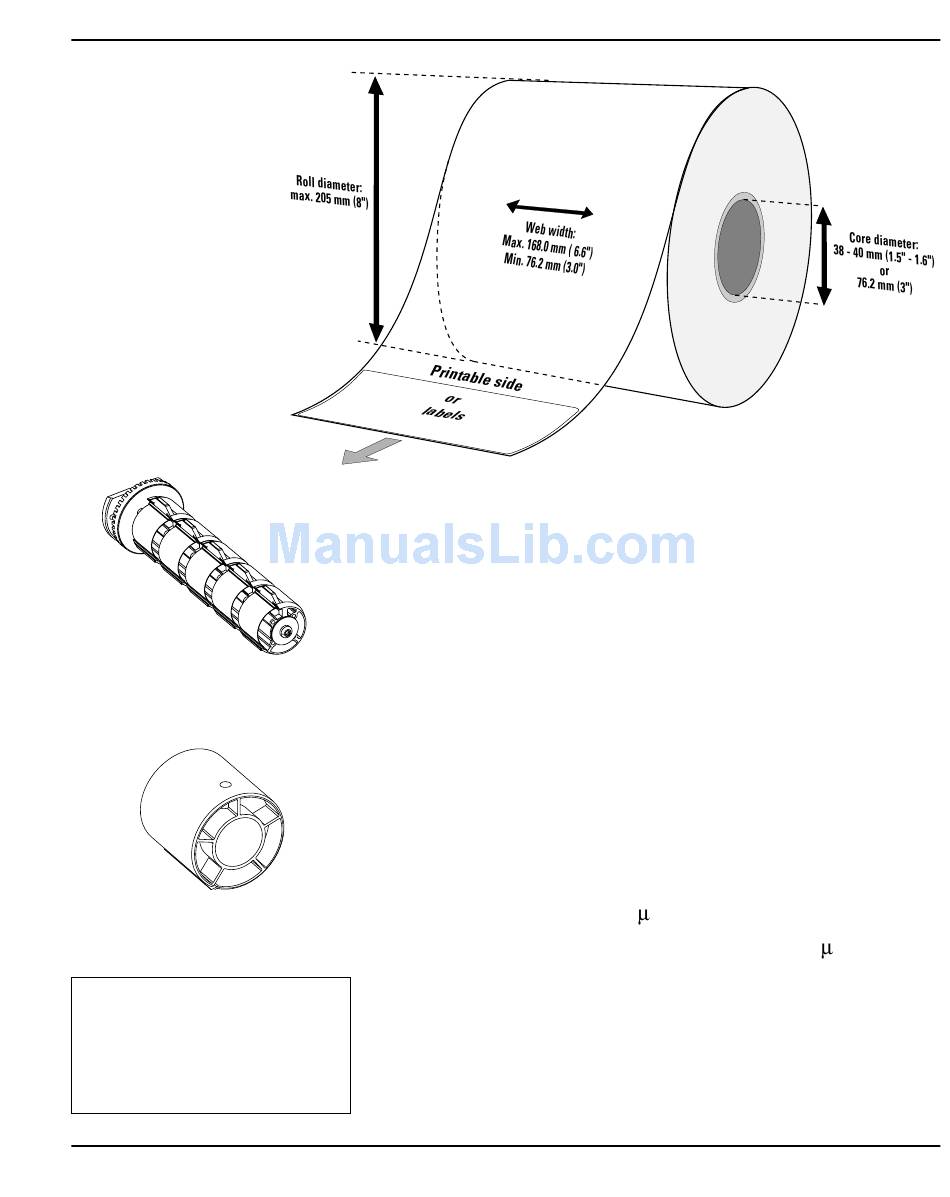

Roll:
Max. diameter:
Max. width:
Min. width:
Max. web thickness:
The maximum recommended web thickness is 175 m. A thicker
web may be used, but print quality will be reduced. Web stiffness is
also important and must be balanced against web thickness to main-
tain print quality.
Paper rolls fitted inside the printer should be wound with the print-
able side facing outwards.
Appendix 2
38 mm (1.5") without adapters
76.2 mm (3") with adapters
Must not protrude outside the web.
205 .0 mm (8.07")
168.0 mm (6.61")
76.2 mm (3")
175 m (0.007")
Media Specifications
98
