Length, cont'd.
• The length setup also decides the amount of paper feed when
using "fix length strip".
• The length setup creates an "emergency stop", which works when
the printer is set up for "Label (w gaps)", "Ticket (w mark)", or
"Ticket (w gaps)". If the LSS has not detected a gap or mark
within 150% of the set length, the paper feed is automatically
stopped to avoid feeding out a whole roll of paper, because of e.g.
a blocked or faulty LSS.

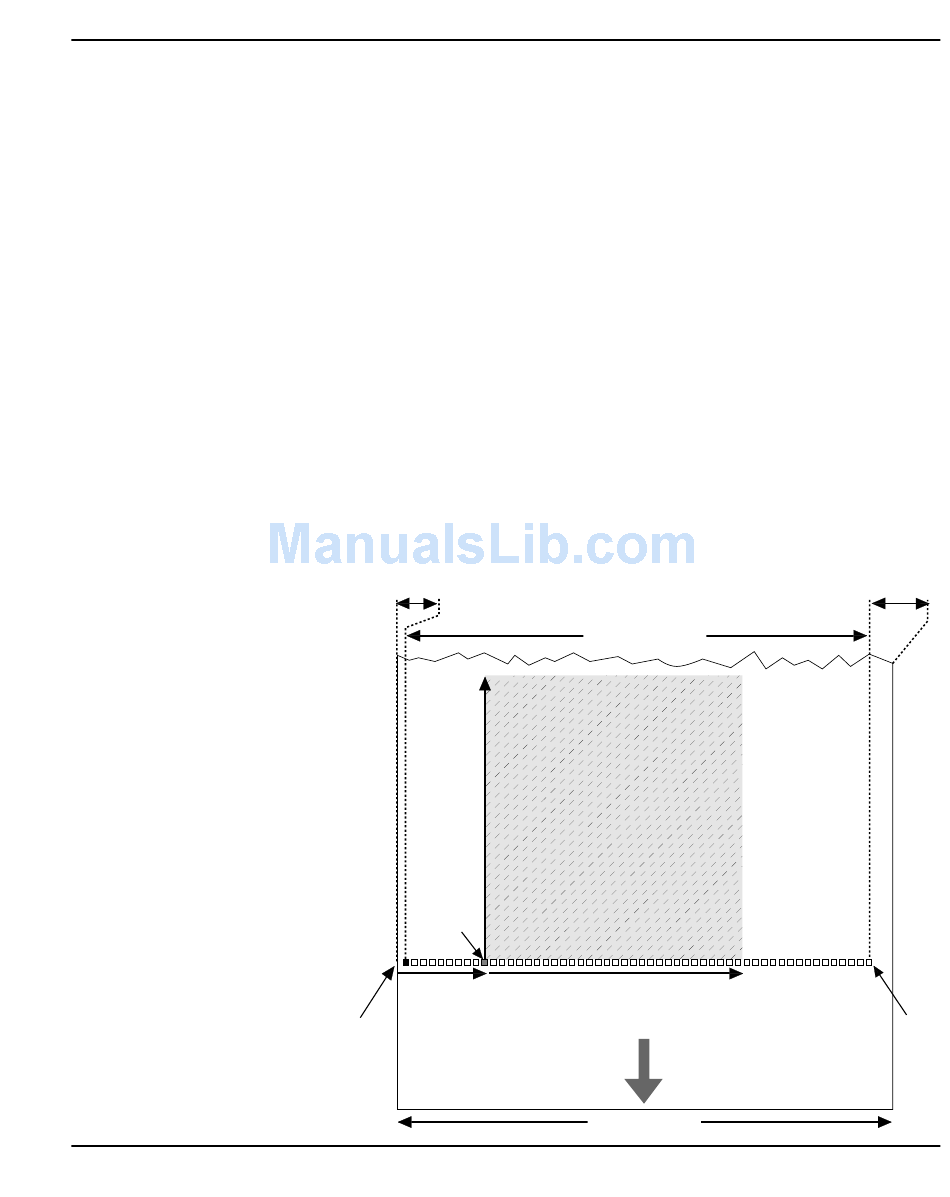

By setting up the X-start, the Width and the Length, you will
create a "print window" inside which the printing can be performed.
Any object or field protruding outside the print window in any di-
rection will cause an error condition (Error 1003 "Field out of la-
bel").
1.0 mm (0.04")
Length
Origin
Dot-line
on printhead
X-start
Dot 0
165.3 mm (6.49")
PRINT PRINT
WINDOW WINDOW
Width
PAPER FEED
DIRECTION
max. 168 mm (6.61")
