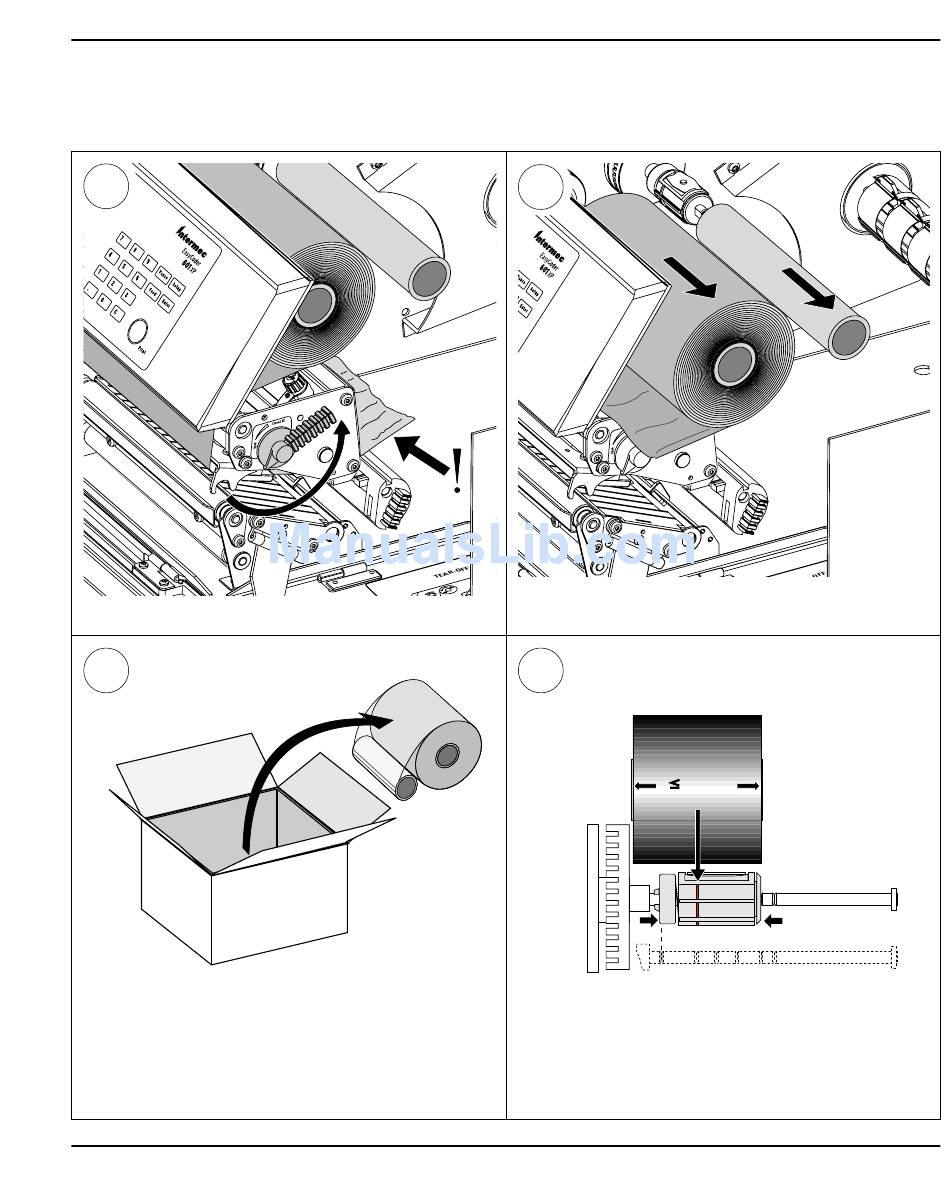

Ribbon Load,
3
Turn the printhead lift knob to "Open" position.
5
Unpack a roll of original Intermec thermal
transfer ribbon.
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
cont'd.
Chapter 6
4
Remove the used-up ribbon and the empty
ribbon core.
6a
60 mm
(2.3")
#1
In case of ribbon up to 60 mm (2.3") wide,
compress the bobbin and move it so it snaps into
the first (innermost) groove.
Thermal Transfer Printing
45
