Media Specifi cations

Media Roll Size

An external media supply must
be protected from dust, sand,
grit, etc. Any hard particles,
however small, can damage the
printhead.
Intermec EasyCoder E4 – Installation & Operation Ed. 2
The following restrictions apply to media rolls fi tted inside the
printer. Only the width and web thickness restrictions apply to
external media supplies.
Core
Diameters:
Width:
The media must not be attached to the core in such a way that the
printer cannot pull the end free. Otherwise the thermal transfer
ribbon may be damaged.
Roll
Max. diameter:
Max. width:
Min. width:
Max. web thickness: 175µm (0.007 inches)
The maximum recommended media thickness is 175µm. Thicker
media may be used, but print quality will be reduced. Media
stiffness is also important and must be balanced against thickness
to maintain print quality.
Media rolls fitted inside the printer should be wound with the
printable side facing outwards.

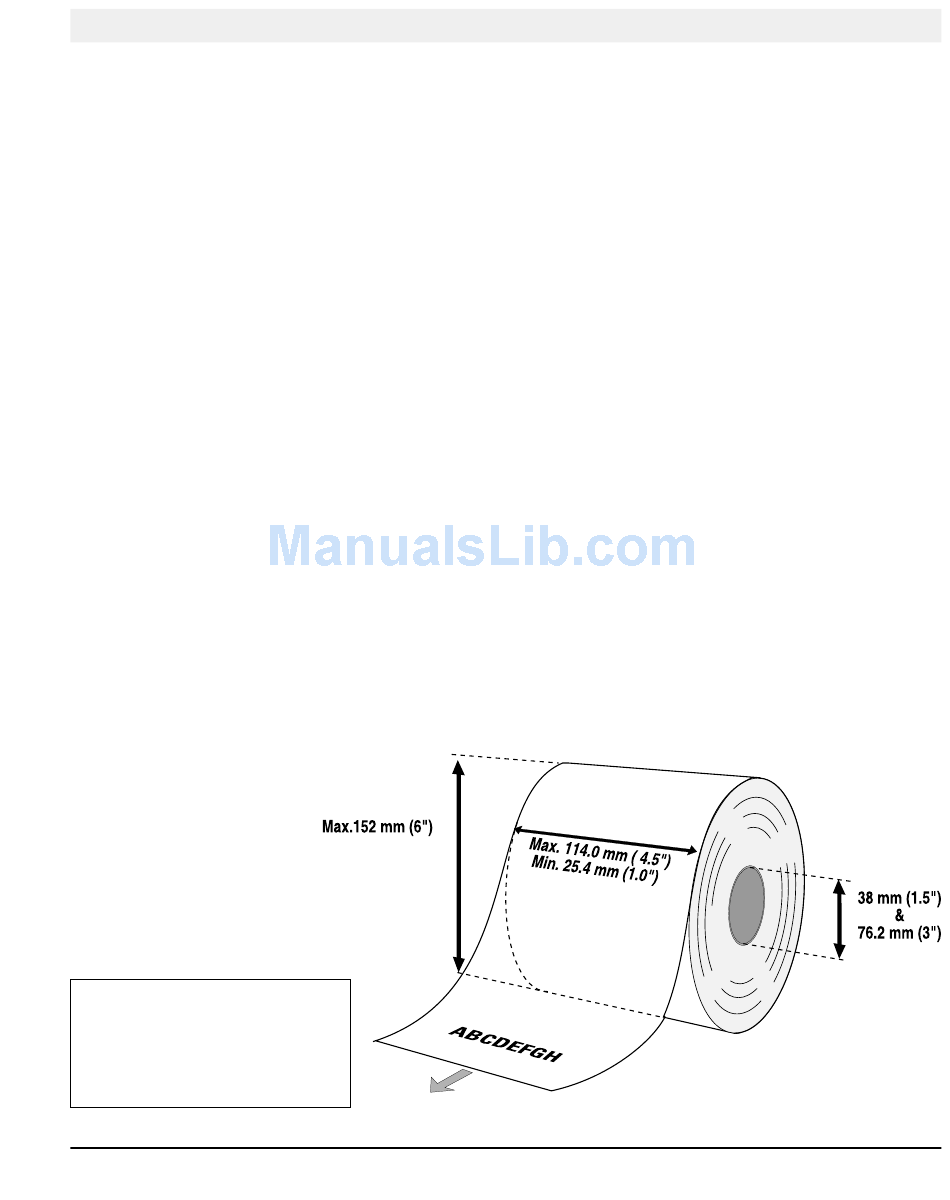

38 mm (1.5 inches) post in bottom position
76.2 mm (3 inches) post in top position
Must not protrude outside the media.
152 mm (6 inches)
114 mm (4.5 inches)
25.4 mm (1 inches)
