Label Stop Sensor
Position

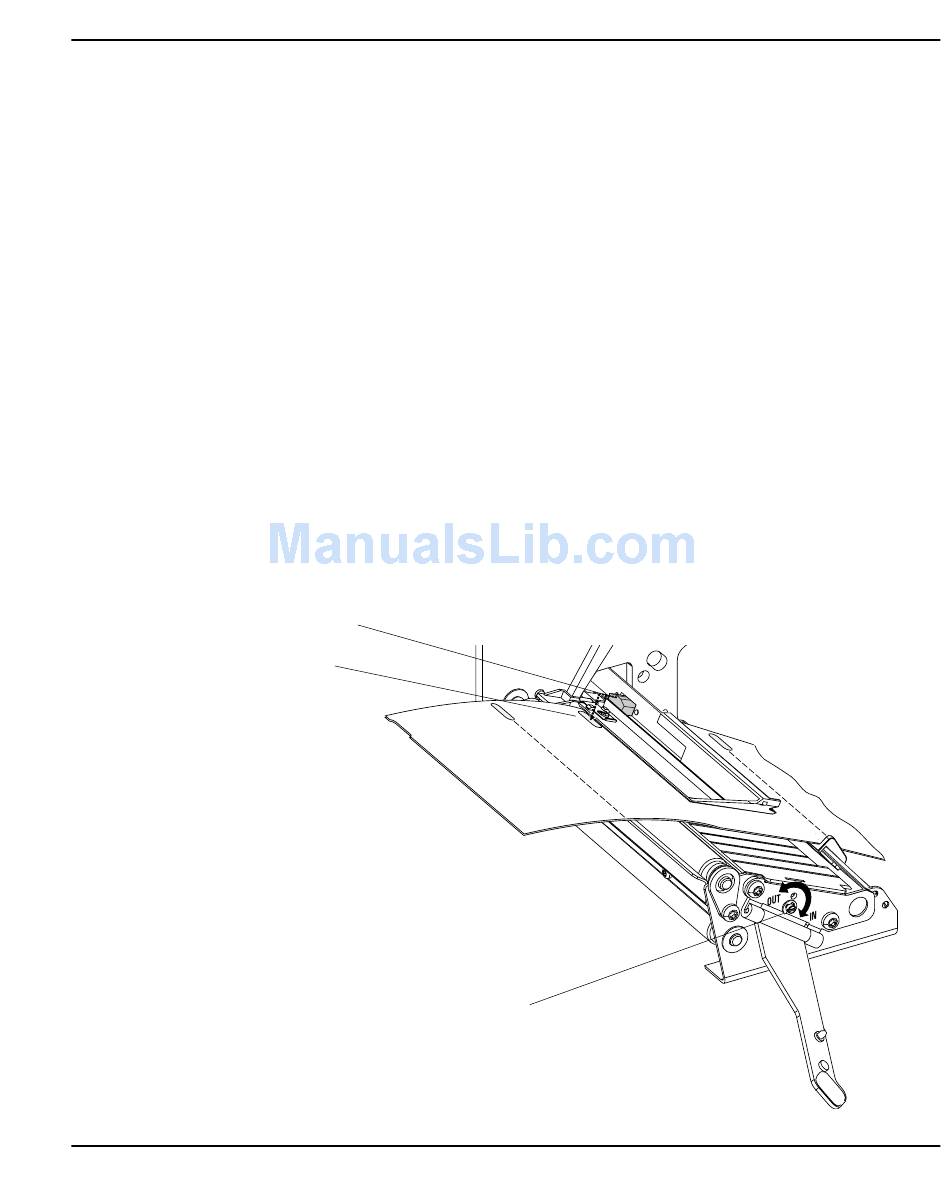

Upper part of LSS
Detection Slot
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
The label stop sensor (LSS) is a photoelectric sensor that controls
the printer's paper feed by detecting gaps between labels, slots in
paper strip, or black marks, depending on the printer's setup in re-
gard of media type (see chapter 7 "Setting Up the Printer"). A pre-
requisite is obviously that the LSS is aligned with the slots or black
marks.
The label stop/black mark sensor (LSS) can be laterally adjusted
within a range of 0 to 50 mm (1.96") from the inner edge of the
paper by means of a screw accessible through the outer lower ga-
ble. Turning the screw clockwise will move the LSS inwards and
vice versa. The position of the LSS in relation to the paper is best
checked by looking head on into the print unit when the printhead
is lifted. Align the centrepoint of the V-shaped upper sensor with
the centre of the slots or marks to be detected.
The linear markings on the lower guide plate can also be used for
positioning of the LSS as they are spaced with an interval of exactly
1 cm (0.39") from the edge that guides the paper. This method is
especially useful for black marks (measure the lateral position of
the black marks with a ruler before loading the paper).
If using irregularly shaped labels, align the LSS with the front tips
of the labels
Adjustment Screw
Upper part of print unit removed to improve view.
