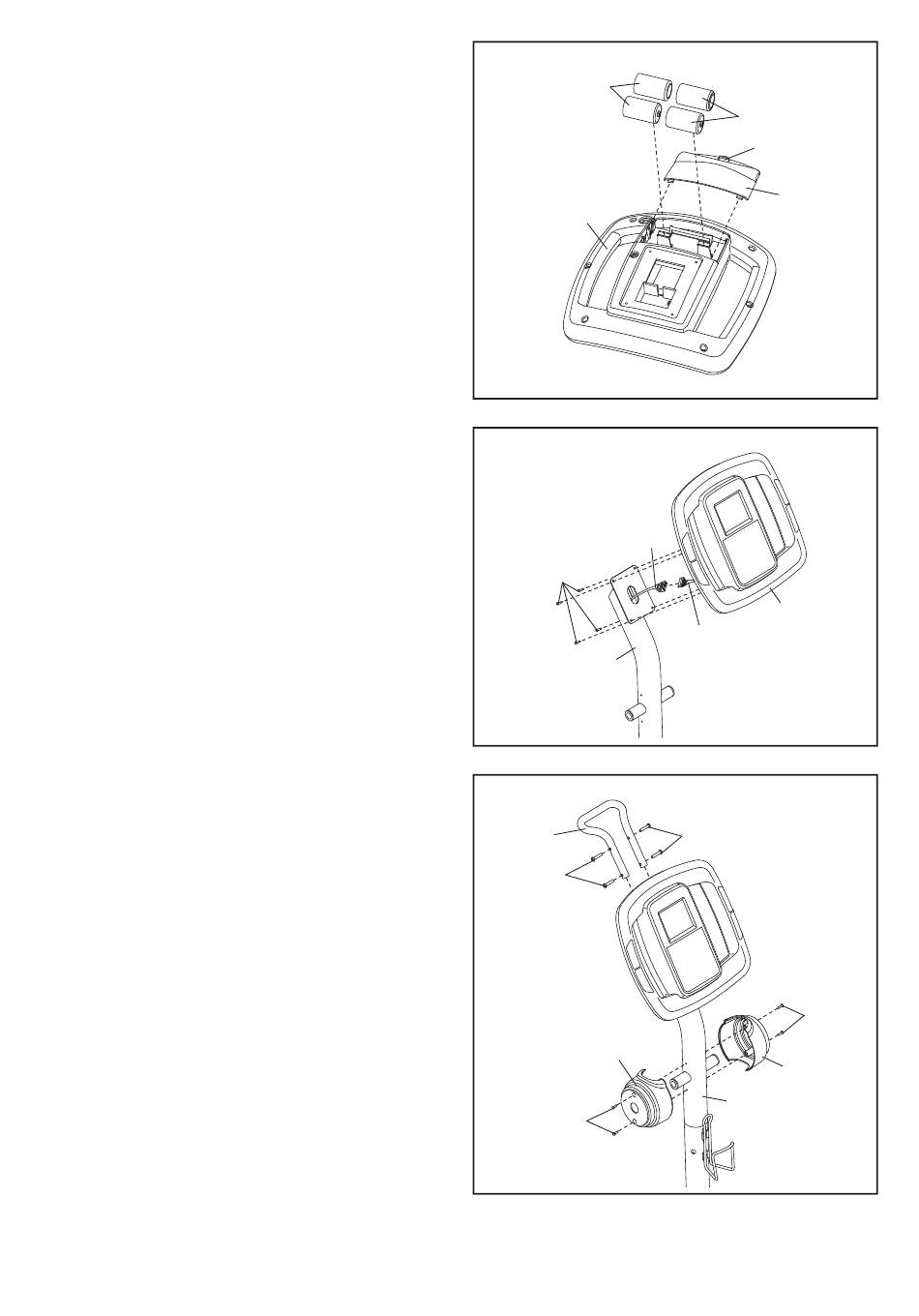

6. The Console (5) requires four 1.5V D batteries
(not included); alkaline batteries are recom-
mended. Press the tab on the battery cover and
remove the battery cover. Next, insert four bat-
teries into the Console. Make sure that the
batteries are oriented as shown by the dia-
gram inside the battery compartment. Then,
reattach the battery cover to the Console.
7. While another person holds the Console (5)
near the Upright (3), connect the wire harness
on the Console to the Upper Wire Harness (48).
Insert the excess wire harness into the Upright
(3).
Tip: Avoid pinching the wires. Attach the
Console (5) to the Upright (3) with four M4 x
16mm Round Head Screws (101).
8. Attach the Transport Handle (116) to the Upright
(3) with four Transport Handle Screws (117).
Make sure that the Transport Handle is oriented
as shown.
Orient one of the Upright Covers (17) as shown,
and hold it against the Upright (3). Attach the
Upright Cover with two M4 x 16mm Round
Head Screws (101).
Attach the other Upright Cover (17) in the
same way.
All manuals and user guides at all-guides.com
8
6
Batteries
5
7
Avoid pinching
the wires
48
101
3
8
116
117
17
101
Batteries
Tab
Battery
Cover
5
Wire
Harness
117
101
17
3
