Pro-Form 690 HR User Manual page 6

1.
To make assembly easier, read the
information on page 5 before you begin.

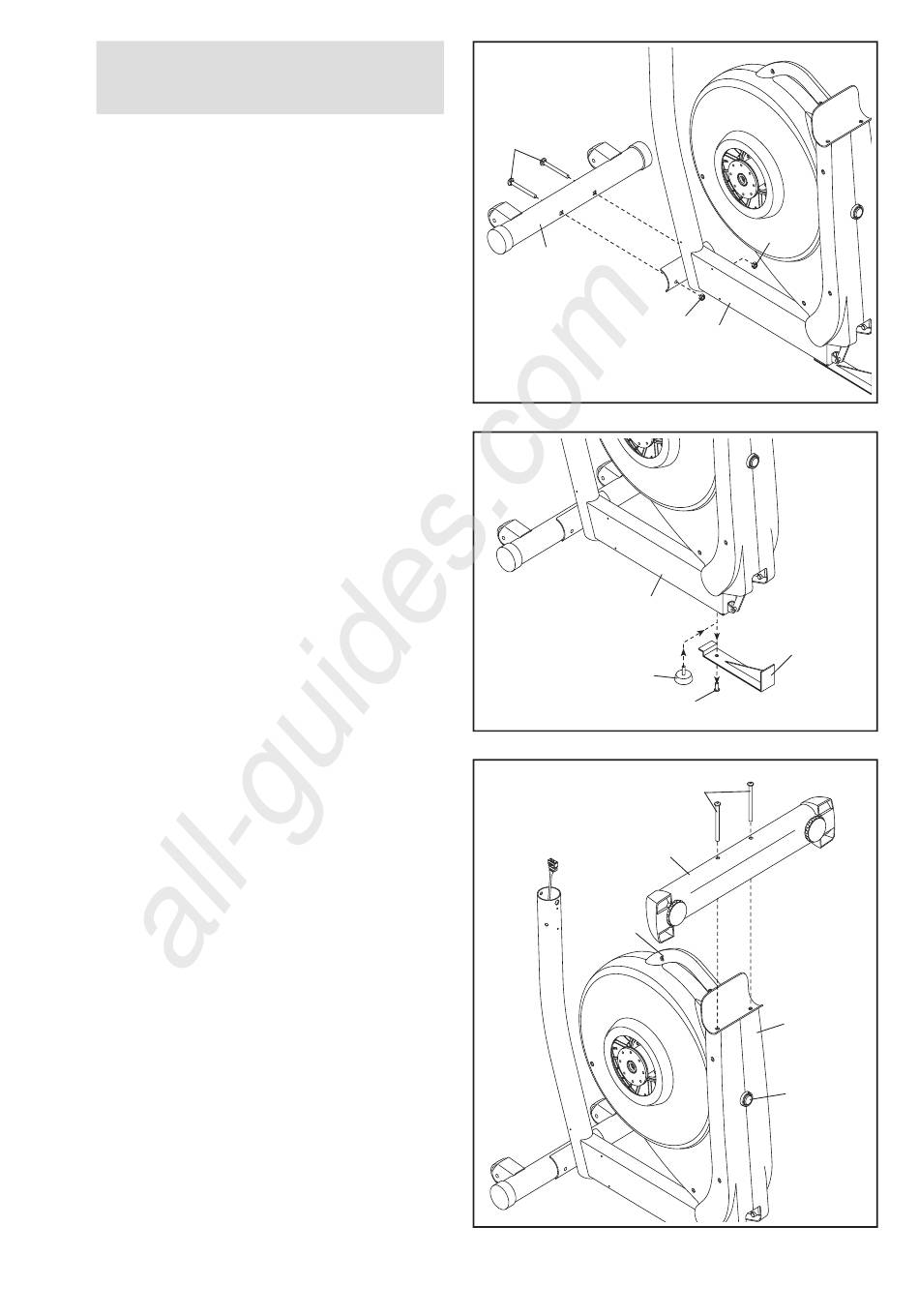

While another person lifts the Base (1), attach
the Front Stabilizer (6) to the Base with two
M10 x 80mm Carriage Bolts (82) and two M10
Locknuts (81).
2. Remove the indicated screw and the shipping
bracket from the Base (1). Discard the screw
and the shipping bracket.
Next, turn the Base Foot (26) into the Base (1)
as far as possible.
3. Attach the Rear Stabilizer (7) to the Frame (2)
with two M10 x 127mm Button Screws (83).
Next, hold the handle on the Frame (2) and
press the Latch Button (68). Then, lower the
Frame until the Rear Stabilizer (7) rests on the
floor.
All manuals and user guides at all-guides.com
6
1
82
6
2
1
26
Screw
3
Handle
81
81
1
Shipping
Bracket
83
7
2
68
