Brief Operating Instructions

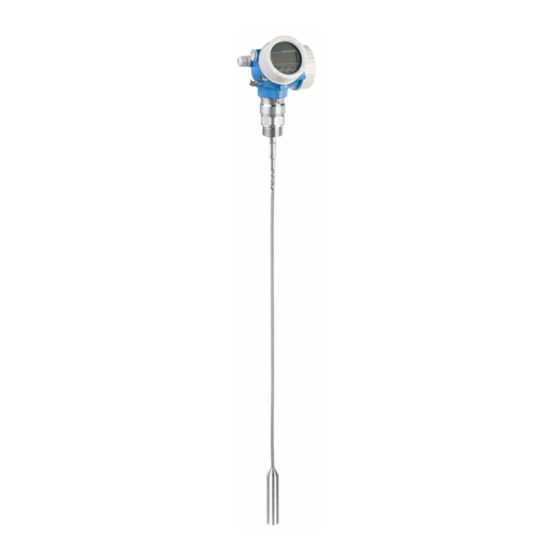

Levelflex FMP56, FMP57
PROFIBUS PA
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser PROFIBUS PA Levelflex FMP56
Summary of Contents for Endress+Hauser PROFIBUS PA Levelflex FMP56
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: Associated Documentation
Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols 2.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. - Page 3 Symbols for certain types of information and graphics Permitted Procedures, processes or actions that are permitted Forbidden Procedures, processes or actions that are forbidden Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Endress+Hauser...
-
Page 4: Basic Safety Instructions
‣ Measured process variables: level ‣ Calculable process variables: volume or mass in any shape of vessel (calculated from the level by the linearization functionality) Endress+Hauser... -
Page 5: Workplace Safety
The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 6: Product Safety
• Are the goods undamaged? • Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Endress+Hauser... -
Page 7: Product Identification
‣ Enter the serial number from the nameplate in the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the camera All of the information on the measuring device and on the scope of the technical documentation pertaining to the device is displayed. - Page 8 Incoming acceptance and product identification Levelflex FMP56, FMP57 PROFIBUS PA A0043233 Endress+Hauser...
-
Page 9: Mounting Requirements
Levelflex FMP56, FMP57 PROFIBUS PA Mounting Mounting Mounting requirements 5.1.1 Suitable mounting position A0021468 1 Installation conditions for Levelflex Endress+Hauser... - Page 10 Securing the probe Securing rope probes A0012609 Rope sag: ≥ 10 mm/(1 m probe length) [0.12 in/(1 ft probe length)] Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe end weight Insulated fastening kit Endress+Hauser...
- Page 11 • In the case of WHG approval: a support is required for probe lengths ≥ 3 m (10 ft). • In general, rod probes must be secured in the event of horizontal flow (e.g. from an agitator) or strong vibrations. • Only secure rod probes directly at the end of the probe. Endress+Hauser...
- Page 12 Plastic sleeve, e.g. PTFE, PEEK, PPS Short metal pipe, e.g. welded in place NOTICE Poor grounding of the probe end may cause incorrect measurements. ‣ Use a sleeve with a narrow bore to ensure good electrical contact between the sleeve and the probe rod. Endress+Hauser...
-
Page 13: Mounting The Device
• When installing in metal vessels, ensure there is good metal contact between the process connection and the vessel. 5.2.2 Mounting devices with a flange If a seal is used to mount the device, use uncoated metal screws to ensure good electrical contact between the process flange and the probe flange. Endress+Hauser... - Page 14 The probe rope must hang fully extended before an accurate measurement can be performed. 5.2.4 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: Endress+Hauser...
- Page 15 Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the electronics compartment cover and check the cover seal; replace it if necessary. Turning the display module A0036401 Endress+Hauser...
-
Page 16: Electrical Connection
Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm), tighten the screw of the securing clamp on the electronics compartment cover with 2.5 Nm. Electrical connection Connecting requirements 6.1.1 Terminal assignment Endress+Hauser... - Page 17 Cable screen; observe cable specification Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector) 6.1.2 Device plug In the case of the device versions with a plug, the housing does not need to be opened to connect the signal cable. Endress+Hauser...
- Page 18 • Ex ia + Ex d[ia] / IS + XP Feature 020 in the product structure Feature 010 in the product structure Input voltages up to 35 V do not destroy the device. Polarity-dependent FISCO/FNICO compliant according to IEC 60079-27 6.1.4 Overvoltage protection See Operating Instructions. Endress+Hauser...
-
Page 19: Connecting The Device
Loosen the screw of the securing clamp of the connection compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the connection compartment cover and check the cover seal; replace it if necessary. 6.2.2 Connecting A0036418 5 Engineering unit: mm (in) Endress+Hauser... - Page 20 6 Engineering unit: mm (in) To remove the cable from the terminal again: Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes Simultaneously pull the cable end out of the terminal. Endress+Hauser...
-
Page 21: Operation Options
2.5 Nm. Operation options The device can be operated as follows: • Operation via operating menu (display) • DeviceCare and Fieldcare, see Operating Instructions • SmartBlue (app), Bluetooth (optional), see Operating Instructions A0033202 7 Download link Endress+Hauser... -
Page 22: Structure And Function Of The Operating Menu
Visualization of a parameter (here: parameter with picklist) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Picklist; marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser... - Page 23 • If present, opens the help text for the function of the parameter. • In a text and numeric editor: Pressing the key briefly: • Opens the selected group. • Carries out the selected action. • Carries out the selected action. Endress+Hauser...
-
Page 24: Access To The Operating Menu Via The Local Display
When you call up the "Expert" menu, you are always asked for an access code. If a customer-specific access code has not been defined, "0000" must be entered. 7.2.1 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: Endress+Hauser... -
Page 25: Switching On The Device
Disabling write protection If the device is write-protected, write protection must first be disabled. See the Operating Instructions of the device for this purpose: BA01009F (FMP56/FMP57, PROFIBUS PA) Setting the operating language Factory setting: English or ordered local language Endress+Hauser... - Page 26 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420 10 Taking the example of the local display Endress+Hauser...
-
Page 27: Device Configuration
Select bin type. Setup → Empty calibration Specify the empty distance E (distance from the reference point R to the 0% mark). Setup → Full calibration Specify the full distance F (distance from the 0% mark to the 100% mark). Endress+Hauser... - Page 28 Displays the distance D between the reference point R and the level L (for verification purposes). Setup → Signal quality Displays the signal quality of the analyzed level echo (for verification purposes). 10. Setup → Mapping → Confirm distance Compare the distance displayed with the actual value to start recording an interference echo map. Endress+Hauser...
- Page 32 *71565967* 71565967 www.addresses.endress.com...
