KA01319D/06/EN/03.22-00
71574825
2022-08-01
Products
Brief Operating Instructions
Flowmeter
Proline 500 – digital
Modbus RS485 transmitter
with Coriolis sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.

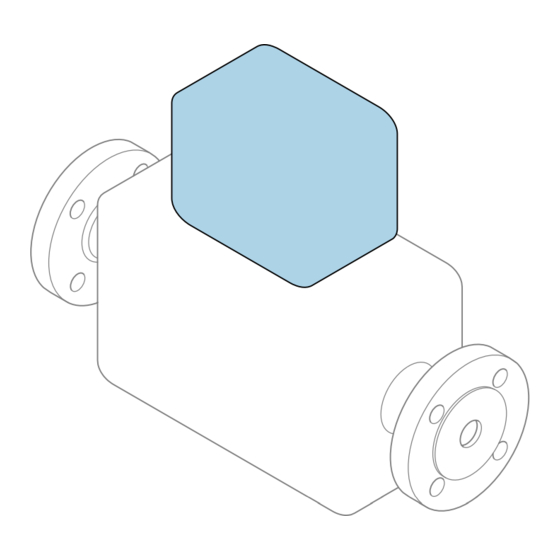

Brief Operating Instructions part 2 of 2: Transmitter
Contain information about the transmitter.
Brief Operating Instructions part 1 of 2: Sensor →  3
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline 500

Summary of Contents for Endress+Hauser Proline 500

  • Page 1 Services KA01319D/06/EN/03.22-00 71574825 2022-08-01 Brief Operating Instructions Flowmeter Proline 500 – digital Modbus RS485 transmitter with Coriolis sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Brief Operating Instructions part 2 of 2: Transmitter Contain information about the transmitter.
  • Page 2 Flowmeter Proline 500 – digital Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3 Flowmeter Proline 500 – digital Brief Operating Instructions for flowmeter Brief Operating Instructions for flowmeter The device consists of a transmitter and a sensor. The process of commissioning these two components is described in two separate manuals that together form the Brief Operating Instructions for the flowmeter: •...

  • Page 4: Table Of Contents

    Table of contents Flowmeter Proline 500 – digital Table of contents About this document ............. . 5 Symbols .

  • Page 5: About This Document

    Flowmeter Proline 500 – digital About this document About this document Symbols 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.
  • Page 6 About this document Flowmeter Proline 500 – digital Symbol Meaning Potential equalization connection (PE: protective earth) Ground terminals that must be connected to ground prior to establishing any other connections. The ground terminals are located on the interior and exterior of the device: •...

  • Page 7: Safety Instructions

    Flowmeter Proline 500 – digital Safety instructions Safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. ‣ Are authorized by the plant owner/operator.

  • Page 8: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 9: Product Safety

    (Statutory Instruments). These are listed in the UKCA Declaration of Conformity along with the designated standards. By selecting the order option for UKCA marking, Endress+Hauser confirms a successful evaluation and testing of the device by affixing the UKCA mark. Contact address Endress+Hauser UK: Endress+Hauser Ltd.
  • Page 10 Safety instructions Flowmeter Proline 500 – digital This includes organizational security measures such as the assignment of access authorization as well as technical measures such as network segmentation. Transmitters with an Ex de approval may not be connected via the service interface (CDI- RJ45)! Order code for "Approval transmitter + sensor", options (Ex de): BA, BB, C1, C2, GA, GB,...

  • Page 11: Product Description

    Flowmeter Proline 500 – digital Product description Product description The measuring system consists of a Proline 500 - digital transmitter and a Proline Promass or Cubemass Coriolis sensor. The transmitter and sensor are mounted in physically separate locations. They are interconnected by a connecting cable.

  • Page 12: Mounting

    Mounting Flowmeter Proline 500 – digital Mounting For detailed information about mounting the sensor, see the Sensor Brief Operating Instructions →  3 CAUTION Ambient temperature too high! Danger of electronics overheating and housing deformation. ‣ Do not exceed the permitted maximum ambient temperature .

  • Page 13: Wall Mounting

    Flowmeter Proline 500 – digital Mounting Wall mounting 17 (0.67) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0029054  2 Engineering unit mm (in) Depends on order code for "Transmitter housing" Order code for "Transmitter housing" • Option A, aluminum, coated: L =14 mm (0.55 in) •...

  • Page 14: Electrical Connection

    Electrical connection Flowmeter Proline 500 – digital Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.
  • Page 15 Flowmeter Proline 500 – digital Electrical connection Signal cable Modbus RS485 The EIA/TIA-485 standard specifies two types of cable (A and B) for the bus line which can be used for every transmission rate. Cable type A is recommended. For detailed information about the specification of the connecting cable, see the Operating Instructions for the device.
  • Page 16 Electrical connection Flowmeter Proline 500 – digital 5.2.3 Connecting cable Non-hazardous area, Ex Zone 2, Class I, Division 2 Standard cable A standard cable can be used as the connecting cable. Standard cable 4 cores (2 pairs); pair-stranded with common shield Shielding Tin-plated copper-braid, optical cover ≥...
  • Page 17 Flowmeter Proline 500 – digital Electrical connection Cross-section Cable length Termination 2 x 2 x 0.50 mm 50 m (165 ft) BN WT YE GN (AWG 22) • +, – = 0.5 mm • A, B = 0.5 mm 3 x 2 x 0.50 mm...
  • Page 18 Electrical connection Flowmeter Proline 500 – digital Supply voltage Input/output Input/output Input/output Input/output 1 (+) 2 (–) 26 (B) 27 (A) 24 (+) 25 (–) 22 (+) 23 (–) 20 (+) 21 (–) Device-specific terminal assignment: adhesive label in terminal cover.

  • Page 19: Connecting The Measuring Device

    Flowmeter Proline 500 – digital Electrical connection Connecting the measuring device NOTICE Limitation of electrical safety due to incorrect connection! ‣ Have electrical connection work carried out by appropriately trained specialists only. ‣ Observe applicable federal/national installation codes and regulations.
  • Page 20 Electrical connection Flowmeter Proline 500 – digital Connecting the connecting cable to the sensor connection housing Connection via terminals with order code for "Housing" Available for sensor Option A "Aluminum, coated" →  21 • Promass A, E, F, H, I, O, P, Q, S •...
  • Page 21 Flowmeter Proline 500 – digital Electrical connection Connecting the sensor connection housing via terminals 10 (0.4) 3 mm TX 20 TX 20 22 mm 24 mm A0029616 Loosen the securing clamp of the housing cover. Unscrew the housing cover. Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 22 Electrical connection Flowmeter Proline 500 – digital Connecting the sensor connection housing via terminals 10 (0.4) 8 mm 22 mm 24 mm A0029613 Release the securing screw of the housing cover. Open the housing cover. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 23 Flowmeter Proline 500 – digital Electrical connection Connecting the sensor connection housing via the connector A0029615 Connect the protective ground. Connect the connector. Endress+Hauser...
  • Page 24 Electrical connection Flowmeter Proline 500 – digital Connecting the connecting cable to the transmitter TX 20 TX 20 10 (0.4) 22 mm 24 mm A0029597 Loosen the 4 fixing screws on the housing cover. Open the housing cover. Fold open the terminal cover.
  • Page 25 Flowmeter Proline 500 – digital Electrical connection 5.3.2 Connecting the signal cable and the supply voltage cable A0028200 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output Terminal connection for connecting cable between sensor and transmitter Terminal connection for signal transmission, input/output;...

  • Page 26: Ensuring Potential Equalization

    Electrical connection Flowmeter Proline 500 – digital Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.

  • Page 27: Post-Connection Check

    Flowmeter Proline 500 – digital Electrical connection To guarantee the degree of protection IP66/67, Type 4X enclosure, carry out the following steps after the electrical connection: Check that the housing seals are clean and fitted correctly. Dry, clean or replace the seals if necessary.

  • Page 28: Operation Options

    Operation options Flowmeter Proline 500 – digital Operation options Overview of operation options A0030213 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Mobile handheld terminal with SmartBlue App Control system (e.g.

  • Page 29: Structure And Function Of The Operating Menu

    Flowmeter Proline 500 – digital Operation options Structure and function of the operating menu 6.2.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation task-oriented Setup Diagnostics Operating menu for experts Expert function-oriented A0014058-EN  3 Schematic structure of the operating menu 6.2.2...

  • Page 30: Access To The Operating Menu Via The Local Display

    Operation options Flowmeter Proline 500 – digital Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language 20.50 Ã English Deutsch Español Français Xxxxxxx A B C D E F G H I J K M N O P Q R S T U V W +0.000 Xx...
  • Page 31 Flowmeter Proline 500 – digital Operation options 6.3.1 Operational display Explanatory symbols for the measured value Status area • Depends on the device version, e.g.: The following symbols appear in the status area of the • : Volume flow operational display at the top right: •...
  • Page 32 Operation options Flowmeter Proline 500 – digital Numeric editor Confirms selection. Moves the input position one position to the left. Exits the input without applying the changes. Inserts decimal separator at the cursor position. Inserts minus sign at the cursor position.

  • Page 33: Access To The Operating Menu Via The Operating Tool

    Flowmeter Proline 500 – digital System integration Keys and meaning Minus/Enter key combination (press the keys simultaneously) With an operational display: • If keypad lock is active: Pressing the key for 3 s deactivates the keypad lock. • If keypad lock is not active: Pressing the key for 3 s opens the context menu including the option for activating the keypad lock.

  • Page 34: Commissioning

    Commissioning Flowmeter Proline 500 – digital Commissioning Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • Checklist for "Post-mounting check" →  13 • Checklist for "Post-connection check" →  27...

  • Page 35: Protecting Settings From Unauthorized Access

    Flowmeter Proline 500 – digital Diagnostic information Example: Available submenus, wizards Meaning System units Configuration of the units for all measured values Medium selection Definition of the medium Communication Configuration of the communication interface I/O configuration User configurable I/O module...
  • Page 36 Diagnostic information Flowmeter Proline 500 – digital measures can be called up from the diagnostic message, and contains important information on the fault. X X X X X X X X X X X X X X 20.50 S801 Supply voltage...
  • Page 40 *71574825* 71574825 www.addresses.endress.com...
