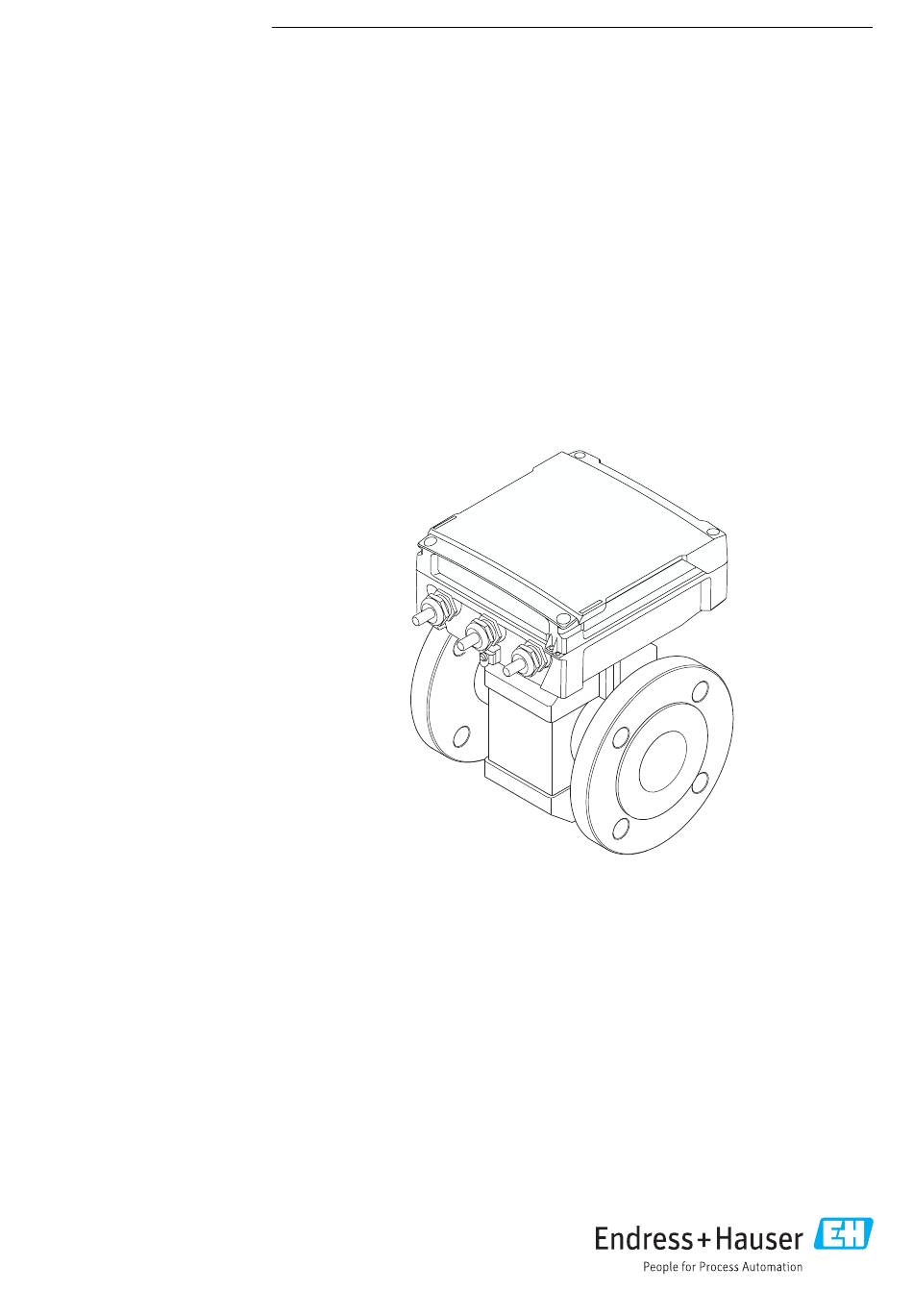

BA02080D/06/EN/01.21
71509498
2021-09-15
Valid as of version
01.00.zz (Device firmware)
Products
Operating Instructions
Proline Promag W 800
Electromagnetic flowmeter
Cellular radio
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag W 800

Summary of Contents for Endress+Hauser Proline Promag W 800

  • Page 1 Products Solutions Services BA02080D/06/EN/01.21 71509498 2021-09-15 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promag W 800 Electromagnetic flowmeter Cellular radio...
  • Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...

  • Page 3: Table Of Contents

    Proline Promag W 800 Cellular radio Table of contents Table of contents About this document ....5 Installation ..... . . 19 Document function .
  • Page 4 13.2 Measuring and test equipment ... . 77 13.3 Endress+Hauser services ....77 Overview of operation options ... . 55 Access to the operating menu via the SmartBlue App .

  • Page 5: About This Document

    Proline Promag W 800 Cellular radio About this document About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 6: Tool Symbols

    About this document Proline Promag W 800 Cellular radio 1.2.4 Tool symbols Symbol Meaning Torx screwdriver Flat blade screwdriver Phillips head screwdriver Allen key Open-ended wrench 1.2.5 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted.

  • Page 7: Documentation

    • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Detailed list of the individual documents along with the documentation code →...

  • Page 8: Safety Instructions

    Safety instructions Proline Promag W 800 Cellular radio Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.

  • Page 9: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 10: Security

    Safety instructions Proline Promag W 800 Cellular radio IT security Our warranty is valid only if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the settings.

  • Page 11: Access Via Bluetooth® Wireless Technology

    Proline Promag W 800 Cellular radio Safety instructions The parameter values are now read only and cannot be edited any more. The following parameters can always be modified even if parameter write protection is activated: • Enter access code • Contrast display •...

  • Page 12: Product Description

    Product description Proline Promag W 800 Cellular radio Product description The device consists of a transmitter and a sensor. Proline Promag 800 - Advanced Two device versions are available: • Compact version - transmitter and sensor form a mechanical unit.

  • Page 13: Incoming Acceptance And Product

    Is the envelope present with accompanying documents? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification" section →  14.

  • Page 14: Transmitter Nameplate

     7 sections • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1...

  • Page 15: Sensor Nameplate

    Proline Promag W 800 Cellular radio Incoming acceptance and product identification 4.2.2 Sensor nameplate Order Code: Ser.No.: Ext. ord. cd.: Material: Patents Date: A0032085  3 Example of sensor nameplate Name of the sensor Place of manufacture Order code Serial number (ser. no.)

  • Page 16: Symbols On Measuring Device

    Incoming acceptance and product identification Proline Promag W 800 Cellular radio 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. To determine the nature of the potential hazard and the measures required to avoid it, consult the documentation accompanying the measuring device.

  • Page 17: Storage And Transport

    Proline Promag W 800 Cellular radio Storage and transport Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.

  • Page 18: Transporting The Product

    Storage and transport Proline Promag W 800 Cellular radio Transporting the product Transport the measuring device to the measuring point in the original packaging. A0029252 Do not remove protective covers or caps installed on process connections. They prevent mechanical damage to the sealing surfaces and contamination in the measuring tube.

  • Page 19: Packaging Disposal

    Proline Promag W 800 Cellular radio Installation A0029319 Packaging disposal All packaging materials are environmentally friendly and 100 % recyclable: • Outer packaging of device Polymer stretch wrap that complies with EU Directive 2002/95/EC (RoHS) • Packaging • Wooden crate treated in accordance with ISPM 15 standard, confirmed by IPPC logo •...
  • Page 20 Installation Proline Promag W 800 Cellular radio A0033017 Installation in down pipes Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥ 5 m (16.4 ft). This precaution is to avoid low pressure and the consequent risk of damage to the measuring tube.
  • Page 21 Proline Promag W 800 Cellular radio Installation For permanent immersion in water, Proline 800 - Advanced Use the remote version for applications in permanently flooded areas. The fully welded remote version of the device can be used permanently under water down to 3 m (10 ft) or for 48 h at depths of 10 m (30 ft).
  • Page 22 Installation Proline Promag W 800 Cellular radio Orientation Recommendation Vertical orientation A0015591 Horizontal orientation, transmitter at top A0015589 2) 3) Horizontal orientation, transmitter at bottom A0015590 Horizontal orientation, transmitter at side A0015592 Applications with low process temperatures may decrease the ambient temperature. To maintain the minimum ambient temperature for the transmitter, this orientation is recommended.

  • Page 23: Environment And Process Requirements

    Proline Promag W 800 Cellular radio Installation ≥ 5 × DN ≥ 2 × DN A0028997 Device versions with 0 x DN inlet/outlet runs No inlet/outlet runs are to be taken into account for devices with the order code for "Design": Option C.
  • Page 24 Installation Proline Promag W 800 Cellular radio System pressure A0028777 Never install the sensor on the pump suction side in order to avoid the risk of low pressure, and thus damage to the liner. Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.
  • Page 25 Proline Promag W 800 Cellular radio Installation [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s 3 m/s max. 8° 2 m/s 1 m/s d / D A0029002 Length of connecting cable To obtain correct measurement results, observe the permitted connecting cable length of .

  • Page 26: Special Mounting Instructions

    Installation Proline Promag W 800 Cellular radio 6.1.3 Special mounting instructions External cellular antenna, Proline 800 - Advanced ‣ Check the signal strength of the cellular network before mounting the external cellular antenna. For detailed information on "mounting the external cellular antenna", see the Installation Instructions →...
  • Page 27 Proline Promag W 800 Cellular radio Installation 4. Observe required screw tightening torques →  27. 5. Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards.  A0029263 Mounting the seals...
  • Page 28 Installation Proline Promag W 800 Cellular radio Nominal diameter Rating Screws Flange Max. screw tightening thickness torque [Nm] [mm] [in] [bar] [mm] [mm] PN 16 8 × M16 PN 40 8 × M16 PN 16 8 × M16 PN 40 8 ×...
  • Page 29 Proline Promag W 800 Cellular radio Installation Maximum screw tightening torques for ASME B16.5 Nominal Pressure Screws Max. screw tightening torque diameter rating [mm] [in] [psi] [in] [Nm] [lbf · ft] [Nm] [lbf · ft] Class 150 4 × ½...
  • Page 30 Installation Proline Promag W 800 Cellular radio Nominal diameter Pressure rating Screws Max. screw tightening torque [Nm] [mm] [bar] [mm] 8 × M22 8 × M20 12 × M22 12 × M20 12 × M22 12 × M22 12 × M24 16 ×...

  • Page 31: Mounting The Transmitter Of The Remote Version, Proline 800 - Advanced

    Proline Promag W 800 Cellular radio Installation Nominal diameter Screws Max. screw tightening torque [Nm] [mm] [mm] 16 × M24 – 16 × M27 – Nominal screw tightening torques Nominal screw tightening torques for JIS B2220 Nominal diameter Pressure rating Screws Nom.
  • Page 32 Installation Proline Promag W 800 Cellular radio Wall mounting Proline 800 - Advanced 17 (0.67) 14 (0.55) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0020523  9 Engineering unit mm (in) 1. Drill the holes. 2. Insert wall plugs into the drilled holes.

  • Page 33: Turning The Transmitter Housing, Proline 800 - Advanced

    Proline Promag W 800 Cellular radio Installation 6.2.5 Turning the transmitter housing, Proline 800 - Advanced To provide easier access to the connection compartment or display module, the transmitter housing can be turned. A0044272 1. Loosen the fixing screws of the housing cover (when reassembling, pay attention to the tightening torque →...
  • Page 34 Installation Proline Promag W 800 Cellular radio A0043338 8. Disconnect the plug of the electronics module. 1 Nm (0.7 lbf ft) A0042853 9. Release the screws on the electronics module. A0042843 10. Remove the electronics module. TX 20 A0044276 11. Loosen the fixing screws of the main electronics module (when reassembling, pay attention to the tightening torque →...

  • Page 35: Mounting The External Cellular Antenna

    Proline Promag W 800 Cellular radio Installation 4 mm A0044277 13. Loosen the fixing screws of the transmitter housing (when reassembling, pay attention to the tightening torque →  35). 14. Lift the transmitter housing. 15. Turn the housing to the desired position in increments of 90°.

  • Page 36: Mounting The External Battery Pack

    Installation Proline Promag W 800 Cellular radio TX 15 A0044318 1 = Antenna (vertical installation) 2 = Antenna (horizontal installation) 3 = Grounding lug with Torx screw and washer 4 = Torx screw with washer 5 = Antenna holder 6.2.7 Mounting the external battery pack The external battery pack is mounted like the transmitter of the remote version →...

  • Page 37: Inserting The Sim Card

    Installation 6.2.8 Inserting the SIM card The device is equipped with an Endress+Hauser eSIM. The device automatically recognizes an additional SIM card that has been inserted. The additionally inserted SIM card may not be protected by a PIN. Only 1.8 V SIM cards are recognized.

  • Page 38: Electrical Connection

    Electrical connection Proline Promag W 800 Cellular radio Electrical connection NOTICE In the device versions with a mains connection (order code for "Power supply" option K or S), the device does not have an internal circuit breaker to disconnect from the power supply network.

  • Page 39: Required Tool

    Proline Promag W 800 Cellular radio Electrical connection Capacitance: core/core, ≤120 pF/m (37 pF/ft) shield grounded Operating temperature –25 to +70 °C (–13 to +158 °F) Test voltage for cable ≤ AC 1433 V r.m.s. 50/60 Hz or ≥ DC 2026 V...

  • Page 40: Terminal Assignment

    Electrical connection Proline Promag W 800 Cellular radio 7.2.3 Terminal assignment Transmitter The sensor can be ordered with terminals. Connection methods available Possible options for order code Power Outputs supply Terminals Terminals "Electrical connection" • Option A: coupling M20x1 • Option B: thread M20x1 •...

  • Page 41: Preparing The Measuring Device

    Proline Promag W 800 Cellular radio Electrical connection 7.2.5 Preparing the measuring device Carry out the steps in the following order: 1. Mount the sensor and transmitter. 2. Connection housing, sensor: Connect connecting cable. 3. Transmitter: Connect connecting cable. 4. Transmitter: Connect signal cable and cable for supply voltage.
  • Page 42 Electrical connection Proline Promag W 800 Cellular radio Transmitter Electrode cable Coil current cable (3.54) 100 (3.94)* 70 (2.76) 80 (3.15) 50 (1.97) 17 (0.67) 50 (1.97) 8 (0.31) 10 (0.39) 8 (0.31) A0032096  14 Engineering unit mm (in) A0032093 ...

  • Page 43: Connecting The Measuring Device

    Proline Promag W 800 Cellular radio Electrical connection Sensor Electrode cable Coil current cable 20 (0.79)* 20 (0.79)* 160 (6.30)* 170 (6.69)* 80 (3.15) 70 (2.76) 50 (1.97) 50 (1.97) 18.5 (0.73) 10 (0.39) 6 (0.24) 8 (0.31) ³1 (0.04)
  • Page 44 Electrical connection Proline Promag W 800 Cellular radio 3. Connect the transmitter. Attaching the connecting cable to the sensor connection housing 42 41 A0032103  15 Sensor: connection module 1. Loosen the securing clamp of the housing cover. 2. Unscrew and lift off the housing cover.

  • Page 45: Connecting The Transmitter

    Proline Promag W 800 Cellular radio Electrical connection Attaching the connecting cable to the transmitter 6 5 7 8 4 37 36 42 41 A0044280  16 Transmitter: main electronics module with terminals 1. Loosen the 4 fixing screws on the housing cover.
  • Page 46 Electrical connection Proline Promag W 800 Cellular radio T 20 22232021 26272425 10 (0.4) A0044281  17 Connecting the supply voltage 1. Loosen the 4 fixing screws on the housing cover. 2. Open the housing cover. 3. Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry.

  • Page 47: Ensuring Potential Equalization

    Proline Promag W 800 Cellular radio Electrical connection 7.3.3 Ensuring potential equalization Requirements For potential equalization: • Pay attention to in-house grounding concepts • Take account of operating conditions like the pipe material and grounding • Connect the medium, sensor and transmitter to the same electrical potential •...
  • Page 48 Electrical connection Proline Promag W 800 Cellular radio 3. If DN ≥ 350 (14"): Mount the ground cable directly on the metal transport bracket. Observe screw tightening torques: see the Sensor Brief Operating Instructions. 4. Connect the connection housing of the transmitter or sensor to ground potential by means of the ground terminal provided for the purpose.

  • Page 49: Power Supply Via Battery Packs, Proline 800 - Advanced

    Proline Promag W 800 Cellular radio Electrical connection 4. Connect the device to the optional power supply such that it is floating in relation to the ground potential (PE), (this step is not necessary if using a power supply without ground potential (PE)).
  • Page 50 Electrical connection Proline Promag W 800 Cellular radio 4 → 5 → A0044382 A0043823 ‣ Remove the cover of the battery pack. 6 → 7 → A0043734 A0043735 ‣ ‣ Insert the buffer capacitor. Plug the buffer capacitor into connector 3.

  • Page 51: Connecting The Cellular Antenna

    Proline Promag W 800 Cellular radio Electrical connection Connecting the cellular antenna 1 → 2 → A0042838 A0044338 ‣ ‣ Open the connection Plug in the antenna connector. compartment cover. 3 → A0044324 ‣ Guide the cable of the cellular antenna through the cable gland indicated.

  • Page 52: Connecting The Pressure Sensor

    Electrical connection Proline Promag W 800 Cellular radio Connecting the pressure sensor A0044314 Plug for the pressure sensor on the housing of the compact transmitter Plug for the pressure sensor on the housing of the remote transmitter ‣ Connect the pressure sensor to the plug indicated.

  • Page 53: Inserting Batteries Into The External Battery Pack

    Proline Promag W 800 Cellular radio Electrical connection 7.7.2 Inserting batteries into the external battery pack WARNING Batteries may explode if not handled properly! ‣ Do not recharge batteries. ‣ Do not take batteries apart. ‣ Do not expose batteries to naked flame.

  • Page 54: Post-Connection Check

    Electrical connection Proline Promag W 800 Cellular radio To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps after the electrical connection: 1. Check that the housing seals are clean and fitted correctly. Dry, clean or replace the seals if necessary.

  • Page 55: Operation Options

    • Device software update • Heartbeat report • Parameter report The SmartBlue App is available to download free of charge for Android devices (Google Playstore) and iOS devices (iTunes Apple Store): Endress+Hauser SmartBlue Directly to the app with the QR code: A0033202 Endress+Hauser...
  • Page 56 Operation options Proline Promag W 800 Cellular radio Downloading the SmartBlue App: 1. Install and start the SmartBlue App.  A Live List shows all the devices available. The list displays the devices with the configured tag name. The default setting of the device tag is EH_5W8C_XXYYZZ (XXYYZZ = the first 6 characters of the device serial number).

  • Page 57: System Integration

    Proline Promag W 800 Cellular radio System integration System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.00.zz • On the title page of the Operating instructions • On the transmitter nameplate • Firmware version Diagnostics →...

  • Page 58: Commissioning

    Commissioning Proline Promag W 800 Cellular radio Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist • "Post-connection check" checklist →  54 10.2 Preparatory steps The device can only be operated via the SmartBlue App.

  • Page 59: Write Protection Via Write Protection

    Proline Promag W 800 Cellular radio Commissioning 2. Open the User management submenu. 3. Open the Define access code wizard. 4. Define a string, consisting of up to 4 numbers, for the access code.  The parameters are write-protected. • If parameter write protection is activated via an access code, it can also only be deactivated via this access code .
  • Page 60 Commissioning Proline Promag W 800 Cellular radio WARNING Excessive tightening torque applied to the fixing screws! Risk of damaging the plastic transmitter. ‣ Tighten the fixing screws as per the tightening torque . Reverse the removal procedure to reassemble the transmitter.

  • Page 61: Operation

    Proline Promag W 800 Cellular radio Operation Operation 11.1 Wake on Touch If you touch the display for 5 seconds, the device displays measured values and status information. m /min A0043867 Locking status The device is locked via the hardware.

  • Page 62: Adapting The Measuring Device To The Process

    Operation Proline Promag W 800 Cellular radio 11.2 Adapting the measuring device to the process conditions To do so, users can choose from the following menus: • Guidance • Application Detailed information on "Guidance menu" and "Application menu": Device parameters →...
  • Page 63 Proline Promag W 800 Cellular radio Operation Parameter overview with brief description Parameter Description User entry / User interface Activate SW option Enter the application package code or code of another re- Positive integer ordered functionality to enable it. Software option overview Shows all enabled software options.

  • Page 64: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Proline Promag W 800 Cellular radio Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Solution Local display remains dark after Supply voltage does not match the Apply the correct supply voltage touching for longer than 5 seconds value indicated on the nameplate.

  • Page 65: Diagnostic Information On Local Display

    Proline Promag W 800 Cellular radio Diagnostics and troubleshooting For access Error Possible causes Solution No write access to parameters Hardware write protection enabled Set the write protection switch on the back of the display to the ON position →  10.

  • Page 66: Adapting The Diagnostic Information

    Diagnostics and troubleshooting Proline Promag W 800 Cellular radio Diagnostic behavior Diagnostic message Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Function check Process measured values are simulated to test the outputs/wiring.
  • Page 67 Proline Promag W 800 Cellular radio Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Data storage inconsistent 1. Check module connections Alarm 2. Contact service Memory content 1.
  • Page 68 Diagnostics and troubleshooting Proline Promag W 800 Cellular radio Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Memory content 1. Restart device Alarm 2. Delete T-DAT via ' R eset device' parameter 3.

  • Page 69: Pending Diagnostic Events

    Proline Promag W 800 Cellular radio Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Electronics temperature Increase ambient temperature Warning too low Process value above limit Low flow cut off active! Warning 1.

  • Page 70: Diagnostic List

    Diagnostics and troubleshooting Proline Promag W 800 Cellular radio Timestamp →  70 Operating time from restart →  70 →  70 Operating time Parameter overview with brief description Parameter Description User interface Actual diagnostics Shows the current occured diagnostic event along with its Positive integer diagnostic information.

  • Page 71: Filtering The Event Logbook

    Proline Promag W 800 Cellular radio Diagnostics and troubleshooting In addition to the operation time of its occurrence, each event is also assigned a symbol that indicates whether the event has occurred or is ended: • Diagnostic event • : Occurrence of the event •...

  • Page 72: Resetting The Measuring Device

    Diagnostics and troubleshooting Proline Promag W 800 Cellular radio Info number Info name I1445 Device verification failed I1457 Measurement error verification failed I1459 I/O module verification failed I1461 Sensor verification failed I1462 Electronic module verification failed I1512 Download started I1513...

  • Page 73: 12.10 Firmware History

    Proline Promag W 800 Cellular radio Diagnostics and troubleshooting Navigation "System" menu → Information → Device Parameter overview with brief description Parameter Description User interface Serial number Shows the serial number of the measuring device. Character string comprising numbers, letters...

  • Page 74: Maintenance

    Maintenance Proline Promag W 800 Cellular radio Maintenance 13.1 Maintenance tasks No special maintenance work is required. 13.1.1 Exterior cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing or the seals.
  • Page 75 Proline Promag W 800 Cellular radio Maintenance 3. Open Device reset. 4. Select Shut down device. 5. Press OK to confirm.  The device switches off and can be disconnected from the power supply without data loss. 6. Replace the empty battery pack.
  • Page 76 The following lithium thyionyl chloride batteries are recommended by Endress +Hauser: • Tadiran SL2780 • Saft LS33600 • Eve ER34615 • Tadiran SL2880 The following alkaline batteries are recommended by Endress+Hauser: • Energizer E95 • Duracell MX1300 • Panasonic LR20XWA • Varta 4020 Endress+Hauser...

  • Page 77: Measuring And Test Equipment

    13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. List of some of the measuring and testing equipment: →  80→  81 13.3...

  • Page 78: Repair

    • The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.

  • Page 79: Disposal

    (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions.

  • Page 80: Accessories

    Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 81: Service-Specific Accessories

    • Access to measured values, device status and diagnostics information SmartBlue is available as download for Android devices from the Google Play Store and for iOS devices from the iTunes Store: Endress+Hauser SmartBlue Directly to the app with the QR code:...

  • Page 82: Technical Data

    Technical data Proline Promag W 800 Cellular radio Technical data 16.1 Application The measuring device is intended only for the flow measurement of liquids with a minimum conductivity of 20 µS/cm. To ensure that the device remains in proper operating condition for its service life, use the measuring device only for media against which the process-wetted materials are sufficiently resistant.
  • Page 83 Proline Promag W 800 Cellular radio Technical data Nominal Recommended Factory settings diameter flow min./max. full scale value Pulse value Low flow cut off (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) [mm] [in] – 220 to 7 500 dm...

  • Page 84: Output

    Technical data Proline Promag W 800 Cellular radio Recommended measuring range Flow limit →  94 For custody transfer, the applicable approval determines the permitted measuring range, the pulse value and the low flow cut off. Operable flow range Over 1000 : 1 In the case of custody transfer, the applicable approval determines the permitted operable flow range.
  • Page 85 Proline Promag W 800 Cellular radio Technical data Assignable measured Volume flow variables Switch output Switching behavior Binary, conductive or non-conductive Switching delay Configurable: 0 to 100 s Number of switching Unlimited cycles Assignable functions • Off • On • Diagnostic behavior •...

  • Page 86: Power Supply

    Technical data Proline Promag W 800 Cellular radio Data logger The data logger logs up to 50,000 data items. A data item consists of a time stamp (hours:minutes:seconds) and the configured values. The data logger can log the following values: •...
  • Page 87 High-power lithium-thionyl chloride batteries are listed under Hazard Class 9: Miscellaneous Hazardous Materials. Observe the hazardous materials regulations described in the Safety Datasheet. The Safety Datasheet can be requested from any Endress+Hauser sales organization. Buffer capacitor specifications • Lithium hybrid layer capacitor •...
  • Page 88 Technical data Proline Promag W 800 Cellular radio Estimated battery lifetime A0040189  21 Operating principle of various data logging methods Flow profile Minimum measuring interval value (external power supply) Set measuring interval value between 0 and 200 Intelligent adaptation...

  • Page 89: Performance Characteristics

    Proline Promag W 800 Cellular radio Technical data • Data logger interval: 15 minutes • External pressure sensor • Ambient temperature: 25 °C (77 °F) The battery lifetime is significantly shortened by: • Shortening the EFM measuring interval • Frequently activating the display •...
  • Page 90 Technical data Proline Promag W 800 Cellular radio Maximum measured error Error limits under reference operating conditions o.r. = of reading Volume flow ±0.5 % o.r. ± 2 mm/s (0.08 in/s) Fluctuations in the supply voltage do not have any effect within the specified range.

  • Page 91: Installation

    Proline Promag W 800 Cellular radio Technical data 16.7 Installation Installation conditions →  19 16.8 Environment Ambient temperature →  23 range Storage temperature The storage temperature corresponds to the operating temperature range of the transmitter and the sensor →  23.

  • Page 92: Process

    Technical data Proline Promag W 800 Cellular radio Compact version • 2 to 8.4 Hz, 7.5 mm peak • 8.4 to 2 000 Hz, 2 g peak Remote version • 2 to 8.4 Hz, 7.5 mm peak • 8.4 to 2 000 Hz, 2 g peak...
  • Page 93 Proline Promag W 800 Cellular radio Technical data [°F] [°C] [°C] -20 -10 0 10 20 30 40 50 60 70 80 90 [° ] F A0038130 Ambient temperature Medium temperature Colored area: the ambient temperature range of –10 to –40 °C (+14 to –40 °F) and the medium temperature range of –10 to –20 °C (+14 to –4 °F) applies to stainless flanges only...
  • Page 94 Technical data Proline Promag W 800 Cellular radio Flow limit The diameter of the pipe and the flow rate determine the nominal diameter of the sensor. The optimum velocity of flow is between 2 to 3 m/s (6.56 to 9.84 ft/s).

  • Page 95: 16.10 Mechanical Construction

    Proline Promag W 800 Cellular radio Technical data [psi] [mbar] DN250 DN125 DN150 DN200 (10") (5") (6") (8") DN100 (4") DN300 (12") 800 1000 1200 1400 1600 1800 [m /h] ³ 1000 2000 3000 4000 5000 6000 7000 8000 [gal/min] A0032668-EN ...
  • Page 96 Technical data Proline Promag W 800 Cellular radio Weight All values (weight exclusive of packaging material) refer to devices with flanges of the standard pressure rating. The weight may be lower than indicated depending on the pressure rating and design.
  • Page 97 Proline Promag W 800 Cellular radio Technical data Weight in US units Order code for "Design", options C, D, E DN 25 to 400, DN 1" to 16" Nominal diameter Reference values ASME (Class 150) [mm] [in] [lb] – –...
  • Page 98 Technical data Proline Promag W 800 Cellular radio Nominal diameter Rating Measuring tube internal diameter EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE AS 4087 [mm] [in] [mm] [in] [mm] [in] [mm] [in] PN 40 Class 150 – –...
  • Page 99 Proline Promag W 800 Cellular radio Technical data Remote version (wall-mount housing) • Housing material: Polycarbonate • Window material: Polycarbonate Sensor connection housing • Aluminum, AlSi10Mg, coated • Polycarbonate plastic (only in conjunction with order code for "Sensor option", options CB …...
  • Page 100 Technical data Proline Promag W 800 Cellular radio Process connections For flanges made of carbon steel: • DN ≤ 300 (12"): with Al/Zn protective coating or protective varnish • DN ≥ 350 (14"): protective varnish All carbon steel lap joint flanges are supplied with a hot-dip galvanized finish.

  • Page 101: 16.11 Human Interface

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. RCM-tick symbol The measuring system meets the EMC requirements of the "Australian Communications...

  • Page 102: 16.13 Application Packages

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 103: 16.14 Accessories

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation Technical Information...
  • Page 104 Technical data Proline Promag W 800 Cellular radio Contents Documentation code Display with Bluetooth Interface SD02655D Using Open Source Software Licenses SD02658D Quick Reference Guide SD02659D OPC-UA SD02663D Information on Custody Transfer Measurement SD02038D Installation Instructions Contents Comment Installation instructions for spare part sets and •...

  • Page 105: Index

    Proline Promag W 800 Cellular radio Index Index Device description files ..... . . 57 Device documentation Adapters ........24 Supplementary documentation .
  • Page 106 Index Proline Promag W 800 Cellular radio Field of application Length of connecting cable ....25 Residual risks ......9 Low flow cut off .
  • Page 107 Proline Promag W 800 Cellular radio Index Settings Adapting the measuring device to the process Packaging disposal ......19 conditions .
  • Page 108 Index Proline Promag W 800 Cellular radio Version data for the device ....57 Vibration- and shock-resistance ....91 Vibrations .
