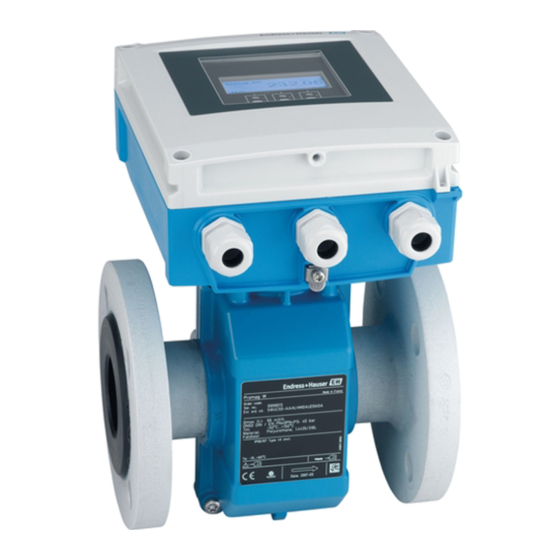

Endress+Hauser Proline Promag W 400 HART Operating Instructions Manual

Electromagnetic flowmeter
Hide thumbs Also See for Proline Promag W 400 HART:
Table of Contents

Advertisement

Quick Links

Download this manual
BA01063D/06/EN/04.15
71280368
Valid as of version
01.00.zz (Device firmware)
Products

Operating Instructions

Proline Promag W 400
HART
Electromagnetic flowmeter
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag W 400 HART

Summary of Contents for Endress+Hauser Proline Promag W 400 HART

  • Page 1: Operating Instructions

    Products Solutions Services BA01063D/06/EN/04.15 71280368 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promag W 400 HART Electromagnetic flowmeter...
  • Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these Instructions. Endress+Hauser...

  • Page 3: Table Of Contents

    Proline Promag W 400 HART Table of contents Table of contents 6.2.2 Preparing the measuring device ..24 Document information ....6 6.2.3 Mounting the sensor .
  • Page 4 10.8 Simulation ......111 13.3 Endress+Hauser services ....141...
  • Page 5 14.2 Spare parts ......142 14.3 Endress+Hauser services ....142 14.4 Return .

  • Page 6: Document Information

    Document information Proline Promag W 400 HART Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 7: Symbols For Certain Types Of Information

    • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. For a detailed list of the individual documents along with the documentation code...

  • Page 8: Standard Documentation

    Registered trademark of the HART Communication Foundation, Austin, USA ® Microsoft Registered trademark of the Microsoft Corporation, Redmond, Washington, USA Applicator ® , FieldCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...

  • Page 9: Basic Safety Instructions

    Proline Promag W 400 HART Basic safety instructions Basic safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task ‣...

  • Page 10: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 11: Product Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device.

  • Page 12: Product Description

    Product description Proline Promag W 400 HART Product description The device consists of a transmitter and a sensor. Two device versions are available: • Compact version - transmitter and sensor form a mechanical unit. • Remote version - transmitter and sensor are mounted in separate locations.

  • Page 13: Incoming Acceptance And Product

    • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"...

  • Page 14: Transmitter Nameplate

    "Supplementary device-dependent documentation" →  8 • The W@M Device Viewer: Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1...

  • Page 15: Sensor Nameplate

    Proline Promag W 400 HART Incoming acceptance and product identification 4.2.2 Sensor nameplate Order Code: Ser.No.: Ext. ord. cd.: Material: Patents Date: A0017186  3 Example of sensor nameplate Name of the sensor Manufacturing location Order code Serial number (ser. no.) Extended order code (ext.

  • Page 16: Symbols On Measuring Device

    Incoming acceptance and product identification Proline Promag W 400 HART 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation.

  • Page 17: Storage And Transport

    Proline Promag W 400 HART Storage and transport Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Do not remove protective covers or protective caps installed on process connections.

  • Page 18: Measuring Devices With Lifting Lugs

    Storage and transport Proline Promag W 400 HART 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. ‣...

  • Page 19: Installation

    Proline Promag W 400 HART Installation Installation Installation conditions 6.1.1 Mounting position Mounting location A0023343 Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥ 2 × DN To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...
  • Page 20 Installation Proline Promag W 400 HART A0017063 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping). An optimum orientation position helps avoid gas and air accumulations and deposits in the measuring tube.

  • Page 21: Requirements From Environment And Process

    Proline Promag W 400 HART Installation 5 × DN 2 × DN ≥ ≥ A0016275 To keep within the in-service maximum permissible errors for custody transfer no additional requirements apply with regard to the graphic illustrated above. Installation dimensions For the dimensions and installation lengths of the device, see the "Technical Information"...
  • Page 22 Installation Proline Promag W 400 HART Never install the sensor on the pump suction side in order to avoid the risk of low pressure, and thus damage to the liner. Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.

  • Page 23: Special Mounting Instructions

    Proline Promag W 400 HART Installation [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s d / D A0016359 6.1.3 Special mounting instructions Display protection ‣ To ensure that the optional display protection can be easily opened, maintain the following minimum head clearance: 350 mm (13.8 in)

  • Page 24: Mounting The Measuring Device

    Installation Proline Promag W 400 HART Buried applications A0017298 Mounting the measuring device 6.2.1 Required tools For transmitter • Torque wrench • For wall mounting: Open-ended wrench for hexagonal screw max. M5 • For pipe mounting: – Open-ended wrench AF 8 –...
  • Page 25 Proline Promag W 400 HART Installation 2. To ensure compliance with device specifications, install the measuring device between the pipe flanges in a way that it is centered in the measurement section. 3. If using ground disks, comply with the Installation Instructions provided.
  • Page 26 Installation Proline Promag W 400 HART Nominal diameter Pressure rating Threaded fasteners Max. screw tightening torque [Nm] [mm] [bar] [mm] Hard rubber Polyurethane PN 16 8 × M16 PN 40 8 × M24 PN 16 8 × M20 PN 40 8 ×...
  • Page 27 Proline Promag W 400 HART Installation Nominal diameter Pressure rating Threaded fasteners Max. screw tightening torque [Nm] [mm] [bar] [mm] Hard rubber Polyurethane PN 10 28 × M30 PN 16 28 × M36 PN 25 28 × M45 1 000 PN 6 28 ×...
  • Page 28 Installation Proline Promag W 400 HART Nominal diameter Pressure rating Threaded fasteners Max. screw tightening torque [Nm] ([lbf · ft]) [mm] [in] [psi] [in] Hard rubber Polyurethane Class 150 12 × 7/8 101 (74) 75 (55) Class 150 12 × 7/8...
  • Page 29 Proline Promag W 400 HART Installation Nominal diameter Threaded fasteners Max. screw tightening torque [Nm] [mm] [mm] Hard rubber Polyurethane 20 × M30 – 20 × M30 – 24 × M30 – 1 000 24 × M30 – 1 200 32 ×...

  • Page 30: Mounting The Transmitter Of The Remote Version

    Installation Proline Promag W 400 HART Nominal diameter Pressure rating Threaded fasteners Max. screw tightening torque [Nm] [mm] [bar] [mm] Hard rubber Polyurethane 8 × M16 8 × M16 8 × M20 8 × M16 8 × M20 8 × M20 8 ×...
  • Page 31 Proline Promag W 400 HART Installation Wall mounting 17 (0.67) 14 (0.55) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0020523  7 Engineering unit mm (in) 1. Drill the holes. 2. Insert wall plugs into the drilled holes. 3. Screw in the securing screws slightly at first.

  • Page 32: Turning The Transmitter Housing

    Installation Proline Promag W 400 HART ø TX 25 20…70 ø ( 0.79…2.75) SW 8 A0020705  8 Engineering unit mm (in) 6.2.5 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned.
  • Page 33 Proline Promag W 400 HART Installation TX 20 A0021604 4 mm A0021605 1. Loosen the fixing screws of the housing cover (when reassembling, pay attention to the tightening torque →  34). 2. Open the housing cover. 3. Unlock the display module.

  • Page 34: Turning The Display Module

    Installation Proline Promag W 400 HART Step Fixing screw Tightening torques for housing made of: Aluminum Plastic Housing cover 2.5 Nm (1.8 lbf ft) 1 Nm (0.7 lbf ft) Smart sensor electronics module 0.6 Nm (0.4 lbf ft) Main electronics module 1.5 Nm (1.1 lbf ft)

  • Page 35: Post-Installation Check

    Proline Promag W 400 HART Installation Reassembling the transmitter housing WARNING Excessive tightening torque applied to the fixing screws! Damage to the transmitter. ‣ When reassembling, tighten the fixing screws as per the tightening torque: Step Fixing screw Tightening torque for housing made of:...

  • Page 36: Electrical Connection

    Electrical connection Proline Promag W 400 HART Electrical connection The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
  • Page 37 Proline Promag W 400 HART Electrical connection Capacitance: core/shield ≤420 pF/m (128 pF/ft) Operating temperature –20 to +80 °C (–68 to +176 °F) Coil current cable Standard cable (18 AWG) with common, braided copper shield ( ~ 7 mm (0.28")) 2 ×0.75 mm...

  • Page 38: Terminal Assignment

    Electrical connection Proline Promag W 400 HART 7.1.3 Terminal assignment Transmitter 0-20 mA/4-20 mA HART connection version with additional outputs and inputs The sensor can be ordered with terminals. Connection methods available Possible options for order code Power "Electrical connection"...
  • Page 39 Proline Promag W 400 HART Electrical connection Signal transmission 0-20 mA/4-20 mA HART with additional outputs and inputs Order code for Terminal numbers "Output" and Output 1 Output 2 Output 3 Input "Input" 26 (+) 27 (-) 24 (+) 25 (-)

  • Page 40: Shielding And Grounding

    Electrical connection Proline Promag W 400 HART 7.1.4 Shielding and grounding 7.1.5 Requirements for the supply unit Supply voltage Transmitter Order code for "Power supply" Terminal voltage Frequency range AC100 to 240 V 50/ 60 Hz, ±4 Hz Option L AC/DC24 V 50/ 60 Hz, ±4 Hz...

  • Page 41: Connecting The Measuring Device

    Proline Promag W 400 HART Electrical connection Sensor Electrode cable Coil current cable 20 (0.79)* 20 (0.79)* 160 (6.30)* 170 (6.69)* 80 (3.15) 70 (2.76) 50 (1.97) 50 (1.97) 18.5 (0.73) 10 (0.39) 6 (0.24) 8 (0.31) ³1 (0.04) A0016489...
  • Page 42 Electrical connection Proline Promag W 400 HART 3. Connect the transmitter. TX 20 6 5 7 8 4 37 36 42 41 A0017445  13 Transmitter: main electronics module with terminals 1. Loosen the 4 fixing screws on the housing cover.

  • Page 43: Connecting The Transmitter

    Proline Promag W 400 HART Electrical connection 6. Firmly tighten the cable glands. 7. WARNING! Housing degree of protection may be voided due to insufficient sealing of the housing. Screw in the screw without using any lubricant. The threads on the cover are coated with a dry lubricant.

  • Page 44: Ensuring Potential Equalization

    Electrical connection Proline Promag W 400 HART 7.2.3 Ensuring potential equalization Requirements CAUTION Electrode damage can result in the complete failure of the device! ‣ Same electrical potential for the fluid and sensor ‣ Remote version: same electrical potential for the sensor and transmitter ‣...
  • Page 45 Proline Promag W 400 HART Electrical connection Plastic pipe or pipe with insulating liner This connection method also applies in situations where: • The customary potential equalization is not used • Equalizing currents are present Ground cable Copper wire, at least6 mm (0.0093 in...

  • Page 46: Special Connection Instructions

    Electrical connection Proline Promag W 400 HART Special connection instructions Ensuring the degree of protection 7.4.1 Degree of protection IP66/67, Type 4X enclosure The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type 4X enclosure. To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps after the electrical connection: 1.
  • Page 47 Proline Promag W 400 HART Electrical connection Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"  →  46 ? Only for remote version: is the sensor connected to the right transmitter? ...

  • Page 48: Operation Options

    Operation options Proline Promag W 400 HART Operation options Overview of operation options A0015607 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370 Field Communicator 475 Control system (e.g.

  • Page 49: Structure And Function Of The Operating Menu

    Proline Promag W 400 HART Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu with menus and parameters →  180 Operating menu for operators and maintenances...

  • Page 50: Operating Philosophy

    Operation options Proline Promag W 400 HART 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. For custody transfer, once the device has been put into circulation or sealed, its operation is restricted.

  • Page 51: Access To The Operating Menu Via The Local Display

    Proline Promag W 400 HART Operation options Menu User role and tasks Content/meaning Expert function-oriented Tasks that require detailed knowledge Contains all the parameters of the device and makes it possible of the function of the device: to access these parameters directly using an access code. The •...
  • Page 52 Operation options Proline Promag W 400 HART Display area In the display area, each measured value is prefaced by certain symbol types for further description: Measured variable Measurement channel Diagnostic behavior number ↓ ↓ ↓ Example Appears only if a diagnostics event is present for this measured variable.

  • Page 53: Navigation View

    Proline Promag W 400 HART Operation options 8.3.2 Navigation view In the submenu In the wizard /../Operation 0091-1 /../Curr. output 1 Access stat.disp Assign curr. Operator Volume flow Locking status Display A0013993-EN A0016327-EN Navigation view Navigation path to current position...
  • Page 54 Operation options Proline Promag W 400 HART Display area Menus Symbol Meaning Operation Appears: • In the menu next to the "Operation" selection • At the left in the navigation path in the "Operation" menu Setup Appears: • In the menu next to the "Setup" selection •...

  • Page 55: Editing View

    Proline Promag W 400 HART Operation options 8.3.3 Editing view Numeric editor Text editor A0013941 A0013999 Editing view Display area of the entered values Input mask Operating elements →  56 Input mask The following input symbols are available in the input mask of the numeric and text editor:...

  • Page 56: Operating Elements

    Operation options Proline Promag W 400 HART Selection of letters from a to z. abc _ … Selection of special characters. "'^ _ … ~& Confirms selection. Switches to the selection of the correction tools. Exits the input without applying the changes.

  • Page 57: Opening The Context Menu

    Proline Promag W 400 HART Operation options Meaning Enter key For operational display • Pressing the key briefly opens the operating menu. • Pressing the key for 2 s opens the context menu. In a menu, submenu • Pressing the key briefly: –...
  • Page 58 Operation options Proline Promag W 400 HART 2. Press  +  simultaneously.  The context menu is closed and the operational display appears. Calling up the menu via the context menu 1. Open the context menu. 2. Press  to navigate to the desired menu.

  • Page 59: Navigating And Selecting From List

    Proline Promag W 400 HART Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.

  • Page 60: Calling Up Help Text

    Operation options Proline Promag W 400 HART The direct access code consists of a 4-digit number and the channel number, which identifies the channel of a process variable: e.g. 0914-1. In the navigation view, this appears on the right-hand side in the header of the selected parameter.

  • Page 61: Changing The Parameters

    Proline Promag W 400 HART Operation options 8.3.9 Changing the parameters For a description of the editing display - consisting of text editor and numeric editor - with symbols →  55, for a description of the operating elements →  56 Example: Changing the tag name in the "Tag description"...

  • Page 62: User Roles And Related Access Authorization

    Operation options Proline Promag W 400 HART Ent. access code Invalid or out of range input value Min:0 Max:9999 A0014049-EN 8.3.10 User roles and related access authorization The two user roles "Operator" and "Maintenance" have different write access to the parameters if the customer defines a user-specific access code.

  • Page 63: Access To The Operating Menu Via The Web Browser

    Proline Promag W 400 HART Operation options Switching on the keypad lock The keypad lock is switched on automatically: • Each time the device is restarted. • If the device has not been operated for longer than one minute in the measured value display.

  • Page 64: Establishing A Connection

    Operation options Proline Promag W 400 HART Computer settings User rights User rights are required for TCP/IP and proxy server settings (for changes to the IP address, subnet mask etc.). Proxy server settings of the The Web browser setting Use proxy server for LAN must be disabled.

  • Page 65: Logging On

    Proline Promag W 400 HART Operation options Device name Device tag Webserv.language English Ent. access code Access stat.tool Maintenance A0017362 Device tag Picture of device If a login page does not appear, or if the page is incomplete →  123 8.4.4...

  • Page 66: Disabling The Web Server

    Operation options Proline Promag W 400 HART Function row Functions Meaning Measured values The measured values of the device are displayed Access to the operating menu structure of the device, same as for the local display and Menu operating tool...

  • Page 67: Logging Out

    Proline Promag W 400 HART Operation options 8.4.7 Logging out Before logging out, perform a data backup via the Data management function (upload configuration from device) if necessary. 1. Select the Logout entry in the function row.  The home page with the Login box appears.

  • Page 68: Field Xpert Sfx350, Sfx370

    FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.

  • Page 69: Ams Device Manager

    Proline Promag W 400 HART Operation options Establishing a connection Via service interface (CDI-RJ45) 1. Start FieldCare and launch the project. 2. In the network: Add a device.  The Add device window opens. 3. Select the CDI Communication TCP/IP option from the list and press OK to confirm.

  • Page 70: Simatic Pdm

    Operation options Proline Promag W 400 HART Source for device description files See data →  71 8.5.5 SIMATIC PDM Function scope SIMATIC PDM is a standardized, manufacturer-independent program from Siemens for the operation, configuration, maintenance and diagnosis of intelligent field devices via HART protocol.

  • Page 71: System Integration

    Proline Promag W 400 HART System integration System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.05.zz • On the title page of the Operating instructions • On transmitter nameplate →  13 •...

  • Page 72: Other Settings

    System integration Proline Promag W 400 HART • Expert → Communication → HART output → Output → Assign PV • Expert → Communication → HART output → Output → Assign SV • Expert → Communication → HART output → Output → Assign TV •...
  • Page 73 Proline Promag W 400 HART System integration Burst variable 0 Burst variable 1 Burst variable 2 Burst variable 3 Burst variable 4 Burst variable 5 Burst variable 6 Burst variable 7 Burst trigger mode Burst trigger level Min. update period Max.
  • Page 74 System integration Proline Promag W 400 HART Parameter Description Selection / User entry Factory setting Burst variable 0 Assignment of the individual HART • Volume flow Volume flow variables (PV, SV, TV, QV) and assignment • Mass flow of the process variables available in the •...

  • Page 75: Commissioning

    Proline Promag W 400 HART Commissioning Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist →  35 • "Post-connection check" checklist →  46 10.2...

  • Page 76: Configuring The Measuring Device

    Commissioning Proline Promag W 400 HART 10.5 Configuring the measuring device The Setup menu with its guided wizards contains all the parameters needed for standard operation. Navigation to the Setup menu X X X X X X X 20.50 Main menu...
  • Page 77 Proline Promag W 400 HART Commissioning Current span 0/4 mA value 20 mA value Failure mode Failure current ‣ Pulse/frequency/switch output 1 to 2 Operating mode Assign pulse output Assign frequency output Switch output function Assign diagnostic behavior Assign limit...
  • Page 78 Commissioning Proline Promag W 400 HART Pulse width Failure mode Minimum frequency value Maximum frequency value Measuring value at minimum frequency Measuring value at maximum frequency Failure mode Failure frequency Switch-on value Switch-off value Switch-on delay Switch-off delay Failure mode Invert output signal ‣...
  • Page 79 Proline Promag W 400 HART Commissioning ‣ Output conditioning Display damping Assign current output Damping output 1 Measuring mode output 1 Assign frequency output Damping output 1 Measuring mode output 1 Assign pulse output Measuring mode output 1 ‣ Low flow cut off...
  • Page 80 Commissioning Proline Promag W 400 HART Burst command Slot number Timeout Failure mode Failure value ‣ Advanced setup Enter access code ‣ System units Volume flow unit Volume unit Conductivity unit Temperature unit Mass flow unit Mass unit Density unit ‣...
  • Page 81 Proline Promag W 400 HART Commissioning 0% bargraph value 1 100% bargraph value 1 Decimal places 1 Value 2 display Decimal places 2 Value 3 display 0% bargraph value 3 100% bargraph value 3 Decimal places 3 Value 4 display...

  • Page 82: Defining The Tag Name

    Commissioning Proline Promag W 400 HART ECC cleaning cycle ECC Polarity ‣ Administration ‣ Define access code Define access code Confirm access code Device reset 10.5.1 Defining the tag name To enable fast identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting.
  • Page 83 Proline Promag W 400 HART Commissioning Structure of the submenu ‣ Status input Assign status input Active level Response time status input Parameter overview with brief description Parameter Description Selection / User entry Factory setting Assign status input Select the function for the status input.

  • Page 84: Configuring The Current Output

    Commissioning Proline Promag W 400 HART 10.5.3 Configuring the current output The "Current output 1" wizard guides you systematically through all the parameters that have to be set for configuring the current output. Navigation "Setup" menu → Current output 1 Structure of the wizard Assign curr.

  • Page 85: Configuring The Pulse/Frequency

    Proline Promag W 400 HART Commissioning Parameter overview with brief description Parameter Description Selection / User entry Factory setting Assign current output Select process variable for current output. • Off Volume flow • Volume flow • Mass flow • Flow velocity • Conductivity •...
  • Page 86 Commissioning Proline Promag W 400 HART Configuring the pulse output Navigation "Setup" menu → Pulse/frequency/switch output 1 to 2 Structure of the wizard for the pulse output Operating mode Pulse Assign pulse Volume flow Mass flow Volume unit Mass unit...
  • Page 87 Proline Promag W 400 HART Commissioning Parameter Description Selection / User entry Factory setting Volume unit Select volume unit. Unit choose list Country-specific: • l Result • gal (us) The selected unit is taken from: Volume flow unit parameter Density unit Select density unit.
  • Page 88 Commissioning Proline Promag W 400 HART Structure of the wizard for the frequency output Operating mode Frequency Assign freq. Volume flow Conductivity Mass flow Volume unit Conductiv. unit Mass unit Density unit Fixed density Min. freq. value Max. freq. value Val.
  • Page 89 Proline Promag W 400 HART Commissioning Parameter Description Selection / User entry Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Result • lb/min The selected unit applies for: • Output • Low flow cut off •...
  • Page 90 Commissioning Proline Promag W 400 HART Structure of the wizard for the switch output Operating mode Switch Switch out funct Diag. behavior Assign diag. beh Alarm or Warning Alarm warning Invert outp.sig. End of wizard A0017439-EN  28 "Pulse/frequency/switch output 1 to 2" wizard in the "Setup" menu: "Operating mode" parameter"Switch"...
  • Page 91 Proline Promag W 400 HART Commissioning Operating mode Switch Switch out funct Fl. direct. Limit Status check Assign Assign Assign limit dir.check status Conduc- Empty Volume Mass Totalizer Volume Mass Low flow tivity pipe det. flow flow 1/2/3 flow flow...

  • Page 92: Configuring The Local Display

    Commissioning Proline Promag W 400 HART Parameter Description Selection / User entry Factory setting Assign limit Select process variable for limit function. • Off Volume flow • Volume flow • Mass flow • Flow velocity • Conductivity • Electronic temperature • Totalizer 1 •...
  • Page 93 Proline Promag W 400 HART Commissioning Structure of the wizard Format display Value 1 display 0% bargraph value 1 100% bargraph value 1 Value 2 display Value 3 display 0% bargraph value 3 100% bargraph value 3 Value 4 display...

  • Page 94: Configuring The Output

    Commissioning Proline Promag W 400 HART Parameter Prerequsite Description Selection / User Factory setting entry 0% bargraph value 1 – Enter 0% value for bar graph Signed floating-point 0 l/h display. number 100% bargraph value 1 – Enter 100% value for bar Signed floating-point 0.025 l/h...
  • Page 95 Proline Promag W 400 HART Commissioning Structure of the "Output conditioning" wizard/"Output conditioning" submenu Display damping Damping out. 1 Damping out. 2 Assign curr. Volume flow Conductivity Mass flow Assign pulse Volume flow Mass flow Assign freq. Volume flow Conductivity...

  • Page 96: Configuring The Low Flow Cut Off

    Commissioning Proline Promag W 400 HART Parameter Description User entry / Selection Factory setting Assign frequency output Select process variable for frequency output. • Off • Volume flow • Mass flow • Flow velocity • Conductivity • Electronic temperature Damping output 1 Set reaction time for output signal to 0 to 999.9 s...
  • Page 97 Proline Promag W 400 HART Commissioning Structure of the wizard Assign variable Volume flow Mass flow On value Off value Pres. shock sup. End of wizard A0020524-EN  32 "Low flow cut off" wizard in the "Setup" menu Parameter overview with brief description...

  • Page 98: Configuring Empty Pipe Detection

    Commissioning Proline Promag W 400 HART 10.5.8 Configuring empty pipe detection The Empty pipe detection wizard guides you systematically through all the parameters that have to be set for configuring empty pipe detection. Navigation "Setup" menu → Empty pipe detection Structure of the wizard Empty pipe det.

  • Page 99: Configuring The Hart Input

    Proline Promag W 400 HART Commissioning 10.5.9 Configuring the HART input The HART input submenu contains all the parameters that must be configured for the configuration of the HART input. Navigation "Setup" menu → HART input Capture mode Burst network Master network Assign ext.
  • Page 100 Commissioning Proline Promag W 400 HART Parameter Description Selection / User entry Factory setting Burst command Select command to read in external process • Command 1 Command 1 variable. • Command 3 • Command 9 • Command 33 Slot number Define position of external process variable 1 to 4 in burst command.

  • Page 101: Advanced Settings

    Proline Promag W 400 HART Commissioning 10.6 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu Language English Display/operat.
  • Page 102 Commissioning Proline Promag W 400 HART Mass flow unit Mass unit Density unit ‣ Sensor adjustment Installation direction ‣ Totalizer 1 to 3 Assign process variable Unit totalizer Totalizer operation mode Failure mode ‣ Display Format display Value 1 display...

  • Page 103: Setting The System Units

    Proline Promag W 400 HART Commissioning Display interval Display damping Header Header text Separator Backlight ‣ Electrode cleaning circuit Electrode cleaning circuit ECC duration ECC recovery time ECC cleaning cycle ECC Polarity ‣ Administration ‣ Define access code Define access code...
  • Page 104 Commissioning Proline Promag W 400 HART Temperature unit Mass flow unit Mass unit Density unit Parameter overview with brief description Parameter Description Selection Factory setting Volume flow unit Select volume flow unit. Unit choose list Country-specific: • l/h Result • gal/min (us) The selected unit applies for: •...

  • Page 105: Carrying Out A Sensor Adjustment

    Proline Promag W 400 HART Commissioning 10.6.2 Carrying out a sensor adjustment The Sensor adjustment submenu contains parameters that pertain to the functionality of the sensor. Navigation "Setup" menu → Advanced setup → Sensor adjustment ‣ Sensor adjustment Installation direction...

  • Page 106: Carrying Out Additional Display Configurations

    Commissioning Proline Promag W 400 HART 10.6.4 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣ Display...
  • Page 107 Proline Promag W 400 HART Commissioning Parameter overview with brief description Parameter Prerequsite Description Selection / User Factory setting entry Format display – Select how measured values • 1 value, max. size 1 value, max. size are shown on the display. • 1 bargraph + 1 value •...

  • Page 108: Performing Electrode Cleaning

    Commissioning Proline Promag W 400 HART Parameter Prerequsite Description Selection / User Factory setting entry Display language – Set display language. • English English • Deutsch (alternatively, the • Français ordered language is • Español preset in the device) • Italiano • Nederlands •...

  • Page 109: Administration Configuration

    Proline Promag W 400 HART Commissioning ECC cleaning cycle ECC Polarity Parameter overview with brief description Parameter Description Selection / User entry / User Factory setting interface Electrode cleaning circuit Enable the cyclic electrode cleaning circuit. • Off • On ECC duration Enter the duration of electrode cleaning in 0.01 to 30 s...

  • Page 110: Function Range Of "Configuration Management" Parameter

    Commissioning Proline Promag W 400 HART Navigation "Setup" menu → Advanced setup → Configuration backup display ‣ Configuration backup display Operating time Last backup Configuration management Comparison result Parameter overview with brief description Parameter Prerequsite Description User interface /  Factory setting...

  • Page 111: Simulation

    Proline Promag W 400 HART Commissioning Options Description Compare The device configuration saved in the display module is compared with the current device configuration of the integrated HistoROM. Clear backup data The backup copy of the device configuration is deleted from the display module of the device.
  • Page 112 Commissioning Proline Promag W 400 HART Diagnostic event category Simulation diagnostic event Parameter overview with brief description Parameter Prerequsite Description Selection / User Factory setting entry Assign simulation process variable – Select a process variable for • Off the simulation process that is •...

  • Page 113: Protecting Settings From Unauthorized

    Proline Promag W 400 HART Commissioning Parameter Prerequsite Description Selection / User Factory setting entry Diagnostic event category – Select the category of the • Sensor Process diagnostic event. • Electronics • Configuration • Process Simulation diagnostic event – Switch simulation of the •...

  • Page 114: Write Protection Via Write Protection

    Commissioning Proline Promag W 400 HART parameters automatically after 60 s if the user skips back to the operational display mode from the navigation and editing view. • If write access is activated via access code, it can be also be deactivated only via the access code →...
  • Page 115 Proline Promag W 400 HART Commissioning + - + - + - + - A0017260 1. Loosen the 4 fixing screws on the housing cover and open the housing cover. 2. Setting the write protection switch (WP) on the main electronics module to the ON position enables the hardware write protection.

  • Page 116: Operation

    Operation Proline Promag W 400 HART Operation 11.1 Reading the device locking status The write protection types that are currently active can be determined using the Locking status parameter. Navigation "Operation" menu → Locking status Function scope of "Locking status" parameter...

  • Page 117: Totalizer

    Proline Promag W 400 HART Operation Parameter overview with brief description Parameter Description User interface Volume flow Displays the volume flow currently measured. Signed floating-point number Mass flow Displays the mass flow currently calculated. Signed floating-point number Conductivity Displays the corrected volume flow currently calculated.

  • Page 118: Output Values

    Operation Proline Promag W 400 HART Parameter overview with brief description Parameter Description User interface Factory setting Value status input Displays the current input signal level. • High • Low 11.4.4 Output values The Output values submenu contains all the parameters needed to display the current measured values for every output.

  • Page 119: Adapting The Measuring Device To The Process

    Proline Promag W 400 HART Operation Parameter Description User interface Factory setting Pulse output 1 Displays the value currently measured for Positive floating-point number 0 Hz the pulse output. Switch status 1 Displays the current switch output status. • Open Open •...

  • Page 120: Showing Data Logging

    Operation Proline Promag W 400 HART Parameter overview with brief description Parameter Description Selection / User entry Factory setting Control Totalizer 1 to 3 Control totalizer value. • Totalize Totalize • Reset + hold • Preset + hold • Reset + totalize •...
  • Page 121 Proline Promag W 400 HART Operation Assign channel 4 Logging interval Clear logging data ‣ Display channel 1 ‣ Display channel 2 ‣ Display channel 3 ‣ Display channel 4 Parameter overview with brief description Parameter Description Selection / User entry Factory setting Assign channel 1 to 4 Assign process variable to logging channel.

  • Page 122: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Proline Promag W 400 HART Diagnostics and troubleshooting 12.1 General troubleshooting For local display Problem Possible causes Remedial action Local display dark and no output Supply voltage does not match that Apply the correct supply voltage .

  • Page 123: Diagnostic Information Via Light Emitting

    Proline Promag W 400 HART Diagnostics and troubleshooting For access Problem Possible causes Remedial action No write access to parameters Hardware write protection enabled Set the write protection switch on the main electronics module to the OFF position . No write access to parameters Current user role has limited access 1.
  • Page 124 Diagnostics and troubleshooting Proline Promag W 400 HART Color Meaning Communication Flashing white HART communication is active. Alarm Green Measuring device is ok Flashing green Measuring device not configured Firmware error Main error Flashing red Error Flashing red/green Start measuring device...

  • Page 125: Diagnostic Information On Local Display

    Proline Promag W 400 HART Diagnostics and troubleshooting 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. Operational display in alarm condition...
  • Page 126 Diagnostics and troubleshooting Proline Promag W 400 HART Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. A0013961 • The background lighting changes to red.

  • Page 127: Calling Up Remedial Measures

    Proline Promag W 400 HART Diagnostics and troubleshooting 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...

  • Page 128: Diagnostic Information In The Web Browser

    Diagnostics and troubleshooting Proline Promag W 400 HART 12.4 Diagnostic information in the Web browser 12.4.1 Diagnostic options Any faults detected by the measuring device are displayed in the Web browser on the home page once the user has logged on.

  • Page 129: Diagnostic Information In Fieldcare

    Proline Promag W 400 HART Diagnostics and troubleshooting 12.5 Diagnostic information in FieldCare 12.5.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established. Xxxxxx/…/…/...

  • Page 130: Calling Up Remedy Information

    Diagnostics and troubleshooting Proline Promag W 400 HART 12.5.2 Calling up remedy information Remedy information is provided for every diagnostic event to ensure that problems can be rectified quickly: • On the home page Remedy information is displayed in a separate field below the diagnostics information.

  • Page 131: Overview Of Diagnostic Information

    Proline Promag W 400 HART Diagnostics and troubleshooting Available status signals Configuration as per HART 7 Specification (Condensed Status), in accordance with NAMUR NE107. Symbol Meaning Failure A device error has occurred. The measured value is no longer valid. A0013956 Function check The device is in service mode (e.g.
  • Page 132 Diagnostics and troubleshooting Proline Promag W 400 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Modules incompatible 1. Check electronic modules 2. Alarm Change electronic modules Electronic modules 1. Restart device Alarm 2.
  • Page 133 Proline Promag W 400 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Simulation failure mode Deactivate simulation Alarm Simulation measured Deactivate simulation Warning variable Simulation current output Deactivate simulation...

  • Page 134: Pending Diagnostic Events

    Diagnostics and troubleshooting Proline Promag W 400 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] EMC interference 1. Check ambient conditions Alarm regarding EMC influence 2. Change main electronic module Special event 4...

  • Page 135: 12.10 Event Logbook

    Proline Promag W 400 HART Diagnostics and troubleshooting Navigation path Diagnostics menu→Diagnostic list submenu / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  39 Illustrated using the example of the local display To call up the measures to rectify a diagnostic event: •...

  • Page 136: 12.10.2 Filtering The Event Logbook

    Diagnostics and troubleshooting Proline Promag W 400 HART 12.10.2 Filtering the event logbook Using the Filter options parameter, you can define which category of event messages is displayed in the Events list submenu. Navigation path "Diagnostics" menu → Event logbook → Filter options Filter categories •...

  • Page 137: 12.11 Resetting The Measuring Device

    Proline Promag W 400 HART Diagnostics and troubleshooting Info number Info name I1457 Failed:Measured error verification I1459 Failed: I/O module verification I1461 Failed: Sensor verification I1462 Failed:Sensor electronic module verific. I1517 Custody transfer active I1518 Custody transfe inactive 12.11 Resetting the measuring device Using the Device reset parameter it is possible to reset the entire device configuration or some of the configuration to a defined state.
  • Page 138 Diagnostics and troubleshooting Proline Promag W 400 HART Navigation "Diagnostics" menu → Device information ‣ Device information Device tag Serial number Firmware version Device name Order code Extended order code 1 Extended order code 2 Extended order code 3 ENP version...
  • Page 139 Proline Promag W 400 HART Diagnostics and troubleshooting Parameter Description User interface Factory setting Firmware version Displays the device firmware version Character string with the 01.05 installed. following format: xx.yy.zz Device name Displays the name of the transmitter. Character string composed of...

  • Page 140: 12.13 Firmware History

    "Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser Internet site: www.endress.com → Download • Specify the following details: –...

  • Page 141: Maintenance

    Replacement seals (accessory) →  178 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. For a list of some of the measuring and test equipment, refer to the "Accessories"...

  • Page 142: Repair

    • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by correspondingly trained customers. • Certified devices can be converted into other certified devices by Endress+Hauser Service or at the factory only. Notes for repair and conversion For repair and modification of a measuring device, observe the following notes: •...

  • Page 143: Disposing Of The Measuring Device

    Proline Promag W 400 HART Repair 2. WARNING! Danger to persons from process conditions. Beware of hazardous process conditions such as pressure in the measuring device, high temperatures or aggressive fluids. Carry out the mounting and connection steps from the chapters "Mounting the measuring device"...

  • Page 144: Accessories

    Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 145: Service-Specific Accessories

    The application already contains the data of your Endress+Hauser device. Endress +Hauser also takes care of maintaining and updating the data records.

  • Page 146: Technical Data

    Technical data Proline Promag W 400 HART Technical data 16.1 Application The measuring device described in these Instructions is intended only for flow measurement of liquids with a minimum conductivity of 5 μS/cm. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
  • Page 147 Proline Promag W 400 HART Technical data Nominal Recommended Factory settings diameter flow Full scale value current Min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)
  • Page 148 Technical data Proline Promag W 400 HART Nominal Recommended Factory settings diameter flow Full scale value current Min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)

  • Page 149: Output

    Input signal External measured values Various pressure transmitters and temperature measuring devices can be ordered from Endress+Hauser: see "Accessories" section →  145 It is recommended to read in external measured values to calculate the following measured variables: Corrected volume flow...
  • Page 150 Technical data Proline Promag W 400 HART Pulse/frequency/switch output Function • With the order code for "Output; Input", option H: output 2 can be set as a pulse or frequency output • With the order code for "Output; Input", option I: output 2 and 3 can be set as a pulse, frequency or switch output •...
  • Page 151 Proline Promag W 400 HART Technical data Current output 4-20 mA Failure mode Selectable (as per NAMUR recommendation NE 43): • Minimum value: 3.6 mA • Maximum value: 22 mA • Defined value: 3.59 to 22.5 mA • Actual value •...

  • Page 152: Power Supply

    Technical data Proline Promag W 400 HART Web browser Plain text display With information on cause and remedial measures Low flow cut off The switch points for low flow cut off are user-selectable. Galvanic isolation The following connections are galvanically isolated from each other: •...

  • Page 153: Performance Characteristics

    Proline Promag W 400 HART Technical data Potential equalization →  44 Terminals Transmitter • Supply voltage cable: plug-in spring terminals for wire cross-sections 0.5 to 2.5 mm (20 to 14 AWG) • Signal cable: plug-in spring terminals for wire cross-sections 0.5 to 2.5 mm...
  • Page 154 Technical data Proline Promag W 400 HART 0.5 % 0.2 % 10 [m/s] 32 [ft/s] A0005531  41 Maximum measured error in % o.r. 0.5 % 0.2 % 10 [m/s] 32 [ft/s] A0017051  42 Flat Spec in % o.r.

  • Page 155: Installation

    • If protection caps or protective covers are mounted these should never be removed before installing the measuring device. Atmosphere If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this can damage the housing. If you are unsure, please contact your Endress+Hauser Sales Center for clarification. Endress+Hauser...

  • Page 156: Process

    Technical data Proline Promag W 400 HART Degree of protection Transmitter • As standard: IP66/67, type 4X enclosure • When housing is open: IP20, type 1 enclosure Sensor • As standard: IP66/67, type 4X enclosure • Optionally available for remote version: –...

  • Page 157: 16.10 Mechanical Construction

    Proline Promag W 400 HART Technical data Conductivity ≥ 5 μS/cm for liquids in general Note that in the case of the remote version, the requisite minimum conductivity also depends on the cable length . Pressure-temperature An overview of the pressure-temperature ratings for the process connections is ratings provided in the "Technical Information"...
  • Page 158 Technical data Proline Promag W 400 HART Weight Compact version Weight data: • Including the transmitter – Order code for "Housing", option M, Q: 1.3 kg (2.9 lb) – Order code for "Housing", option A, R: 2.0 kg (4.4 lb) •...
  • Page 159 Proline Promag W 400 HART Technical data AS 4087, PN 16 Weight [kg] [mm] Order code for "Housing", option M, Q Order code for "Housing", option A, R Polycarbonate plastic Aluminum, AlSi10Mg, coated 12.7 14.7 24.7 JIS B2220, 10K Weight [kg] [mm] Order code for "Housing", option M, Q...
  • Page 160 Technical data Proline Promag W 400 HART EN 1092-1 (DIN 2501) Order code for "Housing", option M, Q [mm] Polycarbonate plastic Weight [kg] PN 6 PN 10 PN 16 1 800 1 419 2 108 2 354 2 000 1 878...
  • Page 161 Proline Promag W 400 HART Technical data EN 1092-1 (DIN 2501) Pressure rating Weight [kg] [mm] Order code for "Housing", option M, Q Order code for "Housing", option A, R Polycarbonate plastic Aluminum, AlSi10Mg, coated PN 40 PN 40 10.7 PN 40 11.7...
  • Page 162 Technical data Proline Promag W 400 HART Weight in US units Standard version ASME B16.5, Class 150 Weight [lbs] [in] Order code for "Housing", option M, Q Order code for "Housing", option A, R Polycarbonate plastic Aluminum, AlSi10Mg, coated 12.5 1½...
  • Page 163 Proline Promag W 400 HART Technical data Order code for "Design", option A Option A "Insertion length short; ISO/DVGW to DN400, DN450-2000 1:1" ASME B16.5, Class 150 Weight [lbs] [in] Order code for "Housing", option M, Q Order code for "Housing", option A, R...
  • Page 164 Technical data Proline Promag W 400 HART Transmitter remote version Wall-mount housing Depends on the material of the wall-mount housing: • Polycarbonate plastic: 1.3 kg (2.9 lb) • Aluminum, AlSi10Mg, coated: 2.0 kg (4.4 lb) Sensor remote version Weight data: •...
  • Page 165 Proline Promag W 400 HART Technical data AS 4087, PN 16 Weight [mm] [kg] JIS B2220, 10K Weight [mm] [kg] Order code for "Design", option A Option A "Insertion length short; ISO/DVGW to DN400, DN450-2000 1:1" EN 1092-1 (DIN 2501)
  • Page 166 Technical data Proline Promag W 400 HART AS 2129, Table E Weight [mm] [kg] 1 000 1 200 1 237 AS 4087, PN 16 Weight [mm] [kg] 1 000 1 200 1 219 Order code for "Calibration flow", options H and K or order code for "Sensor option", option...
  • Page 167 Proline Promag W 400 HART Technical data EN 1092-1 (DIN 2501) Pressure rating [kg] [mm] PN 16 PN 10 PN 10 PN 10 AS 4087, PN 16 [kg] [mm] JIS B2220, 10K Weight [mm] [kg] Weight in US units Standard version ASME B16.5, Class 150...
  • Page 168 Technical data Proline Promag W 400 HART ASME B16.5, Class 150 Weight [in] [lbs] AWWA C207, Class D Weight [in] [lbs] 1 010 1 208 1 760 1 980 2 421 3 083 4 847 5 949 8 154 9 036 10 139 Order code for "Design", option A...
  • Page 169 Proline Promag W 400 HART Technical data AWWA C207, Class D Weight [in] [lbs] 1 477 1 987 1 273 3 515 4 699 5 662 6 864 Order code for "Sensor option", option CA Option CA "IP66/67, Type 4X, fully welded; corrosion protection EN ISO 12944 C5-M"...
  • Page 170 Technical data Proline Promag W 400 HART Nominal diameter Pressure rating Measuring tube internal diameter EN (DIN) ASME AS 2129 Hard rubber Polyurethane AWWA AS 4087 [mm] [in] [mm] [in] [mm] [in] – – PN 16 – 15.4 – –...
  • Page 171 Proline Promag W 400 HART Technical data Remote version (wall-mount housing) • Order code for "Housing", option P "Compact, aluminum coated": Aluminum, AlSi10Mg, coated • Order code for "Housing", option N: polycarbonate plastic • Window material: – For order code for "Housing", option P: glass –...
  • Page 172 Technical data Proline Promag W 400 HART Sensor connection housing • Standard: aluminum, AlSi10Mg, coated (IP66/67) • Option: – Polycarbonate for IP68 with DN 50 to 300 (2 to 12") – Polycarbonate for order code "Sensor option", option CA…CE "Corrosion protection" with DN 350 to 2000 (14 to 78")
  • Page 173 Proline Promag W 400 HART Technical data AWWA C207 • DN 48": Carbon steel, A105/A181/P265GH/S275JR • DN 54 to 72": Carbon steel, P265GH similar to 1.0425 • DN 48 to 78" Carbon steel, A105/A181/P265GH/S275JR AS 2129 • DN 50 to 1200: Carbon steel, A105/S235JRG2 •...

  • Page 174: 16.11 Operability

    Technical data Proline Promag W 400 HART Process connections • EN 1092-1 (DIN 2501) – DN ≤ 300: fixed flange (PN 10/16/25/40) = form A – DN ≥ 350: fixed flange (PN 6/10/16/25) = flat face – DN 450 to 2000 : fixed flange (PN 6/10/16) = flat face •...
  • Page 175 Proline Promag W 400 HART Technical data Operating elements External operation via touch control; 3 optical keys: Additional functionality • Data backup function The device configuration can be saved in the display module. • Data comparison function The device configuration saved in the display module can be compared to the current device configuration.

  • Page 176: 16.12 Certificates And Approvals

    EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 177: 16.13 Application Packages

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 178: 16.14 Accessories

    • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...
  • Page 179 Proline Promag W 400 HART Technical data Supplementary device- Special documentation dependent documentation Contents Documentation code Heartbeat Technology SD01183D Information on Custody Transfer Measurement SD01230D Installation Instructions Contents Documentation code  Installation Instructions for spare part sets Overview of accessories available for order →  144...

  • Page 180: Appendix

    Appendix Proline Promag W 400 HART Appendix 17.1 Overview of the operating menu The following graphic provides an overview of the entire operating menu structure with its menus, submenus and parameters. The page reference indicates where a description of the parameter can be found in the manual.

  • Page 181: Setup" Menu

    Proline Promag W 400 HART Appendix Backlight →  108 Display interval →  108 ‣ Totalizer handling Control Totalizer 1 to 3 →  120 Preset value 1 to 3 →  120 Reset all totalizers →  120 17.1.2...
  • Page 182 Appendix Proline Promag W 400 HART ‣ Pulse/frequency/switch output 1 →  86 to 2 Operating mode →  86 Assign pulse output →  86 Assign frequency output →  88 Switch output function →  91 →  91...
  • Page 183 Proline Promag W 400 HART Appendix Measuring value at maximum →  89 frequency →  89 Failure mode →  89 Failure frequency Switch-on value →  92 Switch-off value →  92 Switch-on delay →  92 Switch-off delay →...
  • Page 184 Appendix Proline Promag W 400 HART Assign frequency output →  96 Damping output 1 →  96 Measuring mode output 1 →  96 Assign pulse output →  96 Measuring mode output 1 →  96 ‣ →  96...
  • Page 185 Proline Promag W 400 HART Appendix Failure mode →  100 Failure value →  100 ‣ Advanced setup →  101 Enter access code ‣ System units →  103 Volume flow unit →  104 Volume unit →  104 Conductivity unit →...
  • Page 186 Appendix Proline Promag W 400 HART Value 2 display →  94 Decimal places 2 →  107 Value 3 display →  94 0% bargraph value 3 →  94 100% bargraph value 3 →  94 →  107...

  • Page 187: Diagnostics" Menu

    Proline Promag W 400 HART Appendix ECC cleaning cycle →  109 ECC Polarity →  109 ‣ Administration →  109 ‣ Define access code →  113 Define access code →  109 Confirm access code Device reset →...
  • Page 188 Appendix Proline Promag W 400 HART ‣ Device information →  137 Device tag →  138 Serial number →  138 Firmware version →  139 Device name →  139 →  139 Order code Extended order code 1 →...
  • Page 189 Proline Promag W 400 HART Appendix ‣ Totalizer →  105 Totalizer value 1 to 3 →  117 Totalizer overflow 1 to 3 →  117 ‣ Input values →  117 Value status input →  118 ‣...
  • Page 190 Appendix Proline Promag W 400 HART ‣ Heartbeat ‣ Performing verification Year Month Hour AM/PM Minute Verification mode External device information External reference voltage 1 External reference voltage 2 Start verification Progress Measured values Output values Status Overall result ‣...

  • Page 191: Expert" Menu

    Proline Promag W 400 HART Appendix Sensor electronic module I/O module ‣ Monitoring results Noise Coil current shot time Reference electrode potential against ‣ Simulation →  111 Assign simulation process variable →  112 Value process variable →  112 Simulation status input →...
  • Page 192 Appendix Proline Promag W 400 HART Navigation  Expert  Expert Direct access (0106) Locking status (0004) Access status display (0091) Access status tooling (0005) Enter access code (0003) ‣ System →  192 ‣ Sensor →  194 ‣...
  • Page 193 Proline Promag W 400 HART Appendix Value 2 display (0108) →  94 Decimal places 2 (0117) →  107 Value 3 display (0110) →  94 0% bargraph value 3 (0124) →  94 100% bargraph value 3 (0126) →...
  • Page 194 Appendix Proline Promag W 400 HART Assign behavior of diagnostic no. 832 (0681) Assign behavior of diagnostic no. 833 (0682) Assign behavior of diagnostic no. 862 (0745) Assign behavior of diagnostic no. 937 (0743) Assign behavior of diagnostic no. 302 (0739) ‣...
  • Page 195 Proline Promag W 400 HART Appendix ‣ Input values →  117 Value status input (1353) →  118 ‣ Output values →  118 Output current 1 (0361–1) →  118 Measured current 1 (0366–1) →  118 Pulse output 1 (0456–1) →...
  • Page 196 Appendix Proline Promag W 400 HART User mass offset (0562) User mass factor (0561) ‣ Process parameters Filter options (6710) Flow damping (6661) Flow override (1839) Conductivity damping (1803) Conductivity measurement (6514) ‣ Low flow cut off →  96 Assign process variable (1837) →...
  • Page 197 Proline Promag W 400 HART Appendix ECC duration (6555) →  109 ECC recovery time (6556) →  109 ECC cleaning cycle (6557) →  109 ECC Polarity (6631) →  109 ‣ External compensation External value (6707) External density (6630) Fixed density (6623) ‣...
  • Page 198 Appendix Proline Promag W 400 HART "Current input" submenu Navigation  Expert → Input → Current input ‣ Input ‣ Current input Current span (1605) 4 mA value (1606) 20 mA value (1607) Failure mode (1601) Failure value (1602) ‣...
  • Page 199 Proline Promag W 400 HART Appendix Output current 1 (0361–1) →  118 Measured current 1 (0366–1) →  118 ‣ Pulse/frequency/switch output 1 →  86 to 2 Operating mode (0469–1 to 2) →  86 Assign pulse output (0460–1 to 2) →...
  • Page 200 Appendix Proline Promag W 400 HART Assign limit (0483–1 to 2) →  92 Switch-on value (0466–1 to 2) →  92 Switch-off value (0464–1 to 2) →  92 Assign flow direction check →  92 (0484–1 to 2) →...
  • Page 201 Proline Promag W 400 HART Appendix Failure mode (7011) →  100 Failure value (7012) →  100 ‣ Input Value (7003) Status (7004) ‣ HART output ‣ Configuration HART short tag (0220) Device tag (0215) →  82 HART address (0219) No.
  • Page 202 Appendix Proline Promag W 400 HART Min. update period (2042–1 to 3) →  74 Max. update period (2041–1 to 3) →  74 ‣ Information Device revision (0204) →  139 Device ID (0221) →  139 Device type (0209)
  • Page 203 Proline Promag W 400 HART Appendix IP address (7209) →  139 Subnet mask (7211) →  139 Default gateway (7210) →  139 Web server functionality (7222) →  66 ‣ Diagnostic configuration Event category 004 (0238) Event category 441 (0210)
  • Page 204 Appendix Proline Promag W 400 HART Preset value 1 to 3 (0913–1 to 3) →  120 Failure mode (0901–1 to 3) →  105 ‣ Diagnostics →  134 Actual diagnostics (0691) →  134 Previous diagnostics (0690) →  134...
  • Page 205 Proline Promag W 400 HART Appendix Extended order code 3 (0022) →  139 Configuration counter (0233) ENP version (0012) →  139 Custody transfer counter (14402) →  139 Timestamp last custody transfer →  139 (14403) Counter custody transfer changes →...
  • Page 206 Appendix Proline Promag W 400 HART ‣ Min/max values Reset min/max values (6541) ‣ Main electronic temperature Minimum value (6547) Maximum value (6545) ‣ Heartbeat ‣ Heartbeat base settings Plant operator (2754) Location (2755) ‣ Performing verification Year (2846) Month (2845)
  • Page 207 Proline Promag W 400 HART Appendix Status (12153) Overall result (12149) ‣ Verification results Date/time (12142) Verification ID (12141) Operating time (12126) Overall result (12149) Sensor (12152) Sensor electronic module (12151) I/O module (12145) ‣ Monitoring results Noise (12158) Coil current shot time (12150)
  • Page 208 Appendix Proline Promag W 400 HART Pulse value 1 to 2 (0459–1 to 2) →  112 Switch output simulation 1 to 2 →  112 (0462–1 to 2) Switch status 1 to 2 (0463–1 to 2) →  112 Simulation device alarm (0654) →...

  • Page 209: Index

    Proline Promag W 400 HART Index Index Access authorization to parameters Declaration of Conformity ..... 11 Read access ......62 Define access code .
  • Page 210 Index Proline Promag W 400 HART Fitted electrodes ......173 Flow direction ......20 ECC .
  • Page 211 Proline Promag W 400 HART Index For measuring device configuration ... . 76 For specific settings ..... . 101...
  • Page 212 Index Proline Promag W 400 HART Electrode cleaning circuit (Submenu) ..108 Device components ..... . . 142 Empty pipe detection (Wizard) .
  • Page 213 Proline Promag W 400 HART Index Submenu Tool tip Administration ..... . 109, 137 see Help text Advanced setup ......101 Tools Burst configuration 1 to 3 .
  • Page 214 www.addresses.endress.com...

Table of Contents
