d. Pinch the latch release and carefully press downward to seat the Drive Assembly the rest
of the way.
Step 6 : Push the enclosure back into the rack to ensure proper cooling.
4.7 CMA Replacement
Attention: The CMA Lite replacement package includes a CMA arm and spacer brackets.
Replacing the CMA arm can be done with the enclosure in place in the rack. To replace the
spacer brackets, the enclosure must be removed from the rack. For the replacement of a CMA
arm alone, anything pertaining to the spacer brackets may be skipped.
Table 42: Replacement Procedure Info
Required Tools
•
# 2 Philips Screwdriver
•
Cable Ties (for
configurations
with greater than
10 total cables)
•
Tape Measure
Step 1 : Place the CMA(s) into the service position.

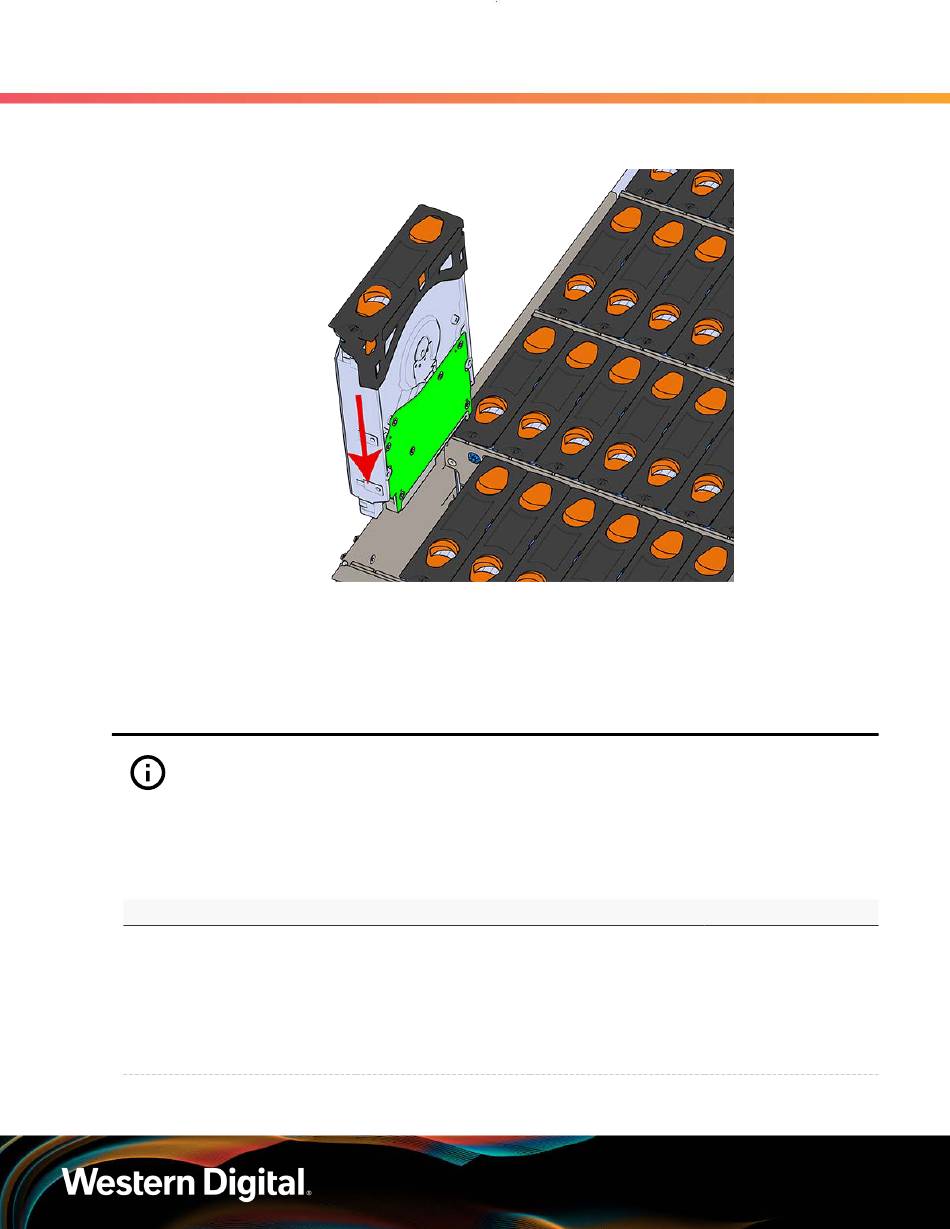

Figure 63: Installing a Drive Assembly
Required Parts
•
Low-Profile
M4 x 3.2mm
Philips screws
4. Part Replacement

4.7 CMA Replacement

# of People Required
1
Time Required
15m
