Step 8 : Follow the previous step for each drive in the enclosure. Attach a label or mark the drives with
the drive slot they were removed from in order to add them to the same slot in the future. Store
the drives in an ESD safe location until the drives are ready to be installed back into an enclosure.
Step 9 : Release the safety latch on the inner rails on each side of the chassis as shown in the following
image.
Step 10 : Remove the chassis from the rack.
a. Be prepared to support the enclosure once it is free of the rails by having a second
person or a lift to support the enclosure
b. Grasp both handles at the front of the enclosure and pull with even pressure until the
enclosure will not extend further.
c. Locate the safety catches on the inner rails attached to the enclosure.

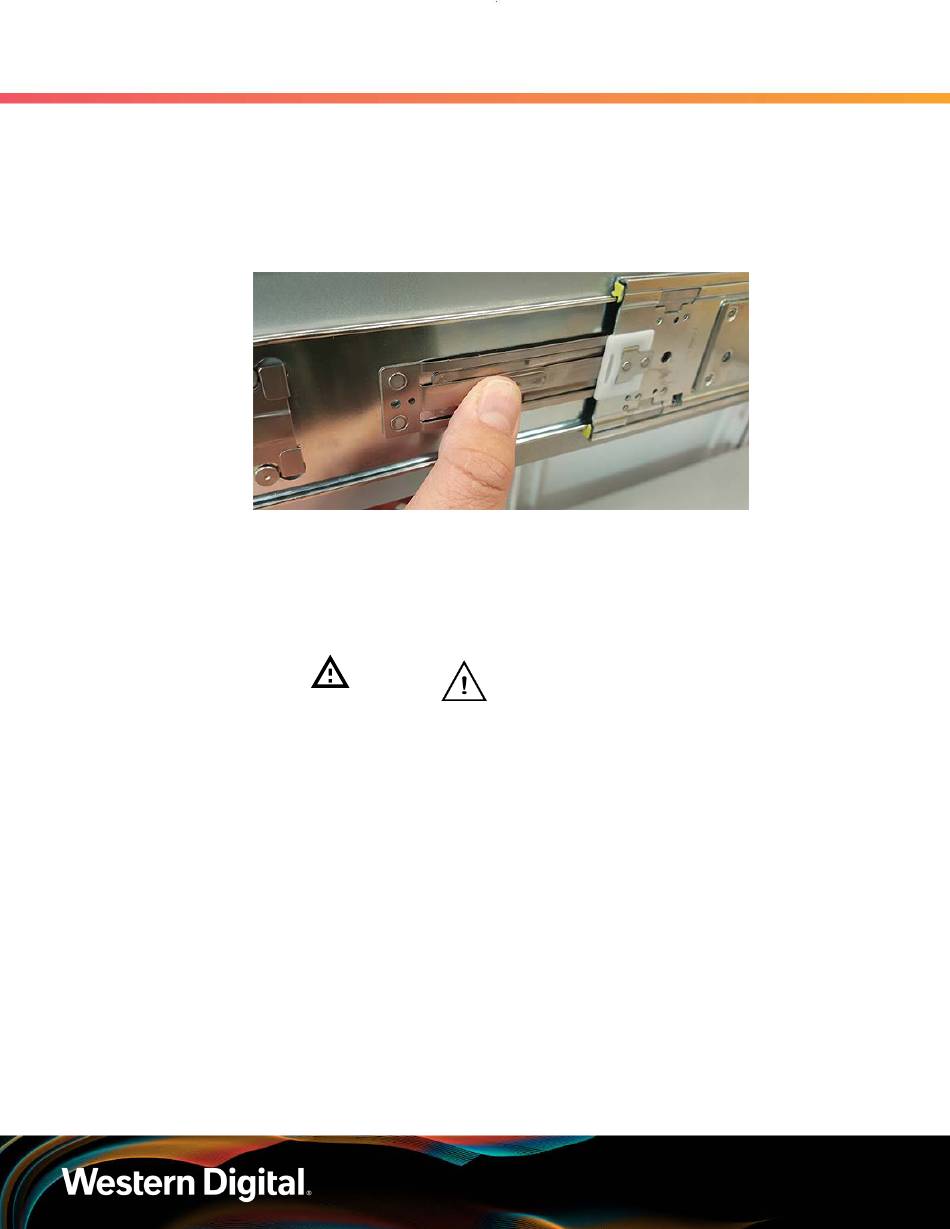

Figure 72: Inner Rail Safety Latch Release
Warning:
intended to be used to support the weight of the Ultrastar Data60.
Lifting the unit by the chassis handles or trying to support the
unit on the handles can cause them to fail. This can cause serious
damage to the unit or serious bodily harm to those handling the
unit. Always team lift the chassis by gripping the underside of the
unit, and never try to lift a chassis that is filled with drives.
The handles on the front of the chassis are not
4. Part Replacement
4.7 CMA Replacement
81
