Step 2 : Remove the IOM Fan.
a. With one hand, grasp around the center square of the fan housing as shown in the
following image.
b. Pinch the IOM fan housing to release the latching mechanism and pull it straight out from
the chassis.
Step 3 : Install the IOM Fan.
a. Align the IOM Fan as shown in the following image.
b. Pinch the latch release mechanism slightly and carefully lower the IOM Fan into the slot.
Step 4 : Push the enclosure back into the rack to ensure proper cooling.

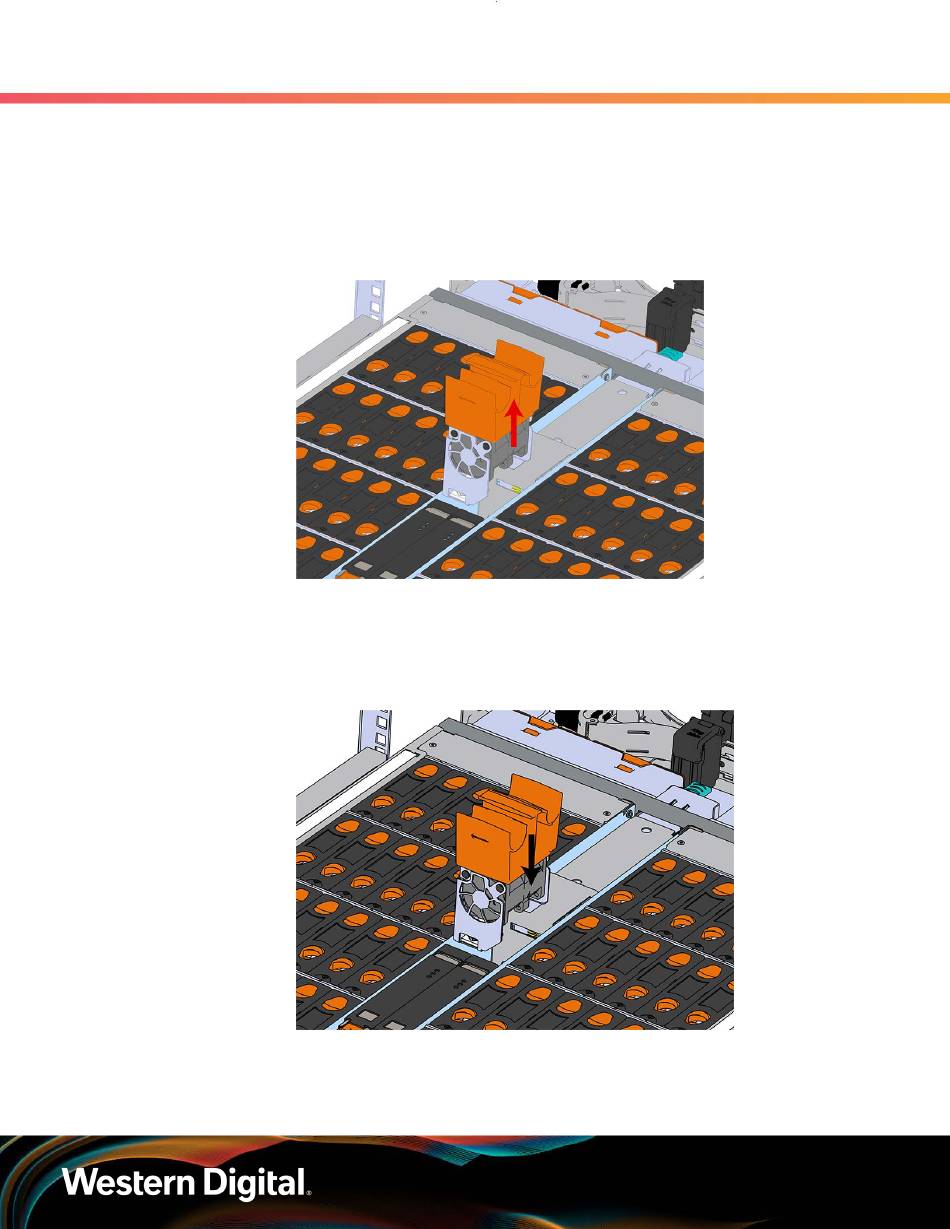

Figure 56: Removing IOM Fan
Figure 57: Installing the IOM Fan
4. Part Replacement
4.5 IOM Fan Replacement
71
