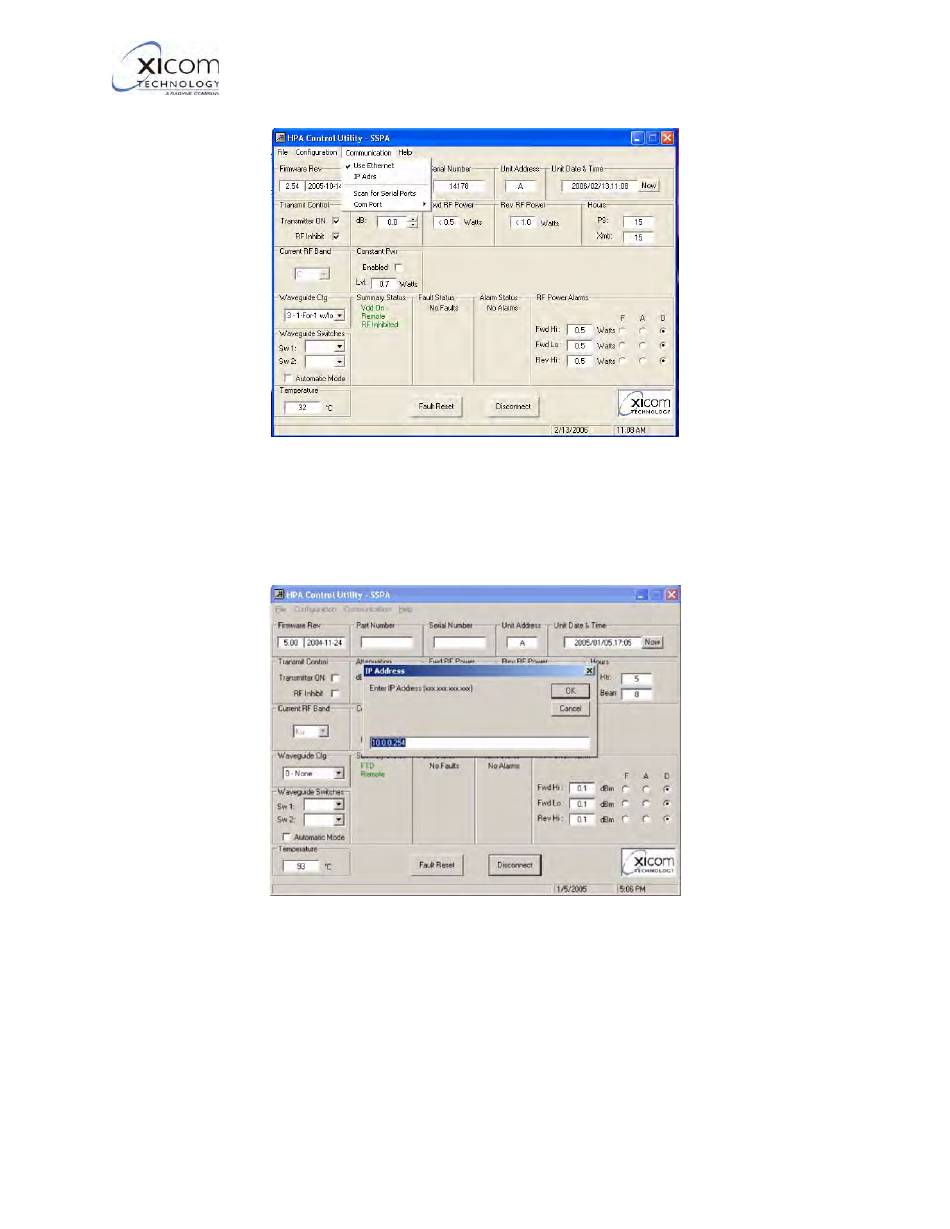

Figure 26, Communications Menu
13. Refer to Figure 27. The "IP Adrs" menu allows you to tell the HPA
Control program the IP address of the amplifier that you wish to
communicate with.
Figure 27, Set Ethernet IP Address
14. The "Scan for Serial Ports" option (Figure 26) allows you to scan
the M&C PC for available RS232 communication ports.
15. Refer to Figure 28. The "COM Port" option on the
Communications menu allows you to set the Baud Rate, number
of Data Bits, Parity and number of Stop bits used on the PC side
of the connection.
