Chapter 3
Installation Procedures
Section 3.4.3
Pole Mounting

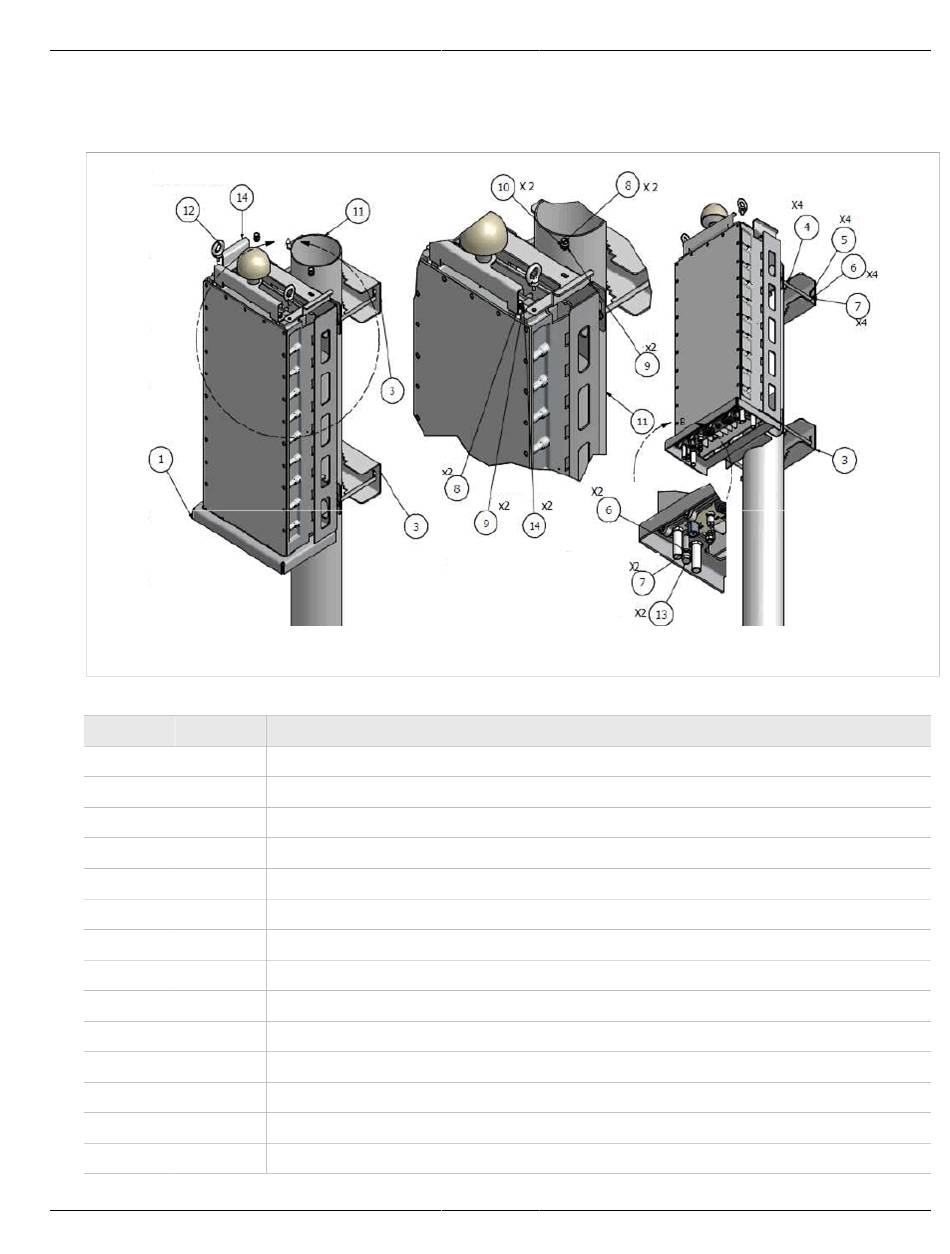

Figure 6: WIN7000 Pole Mounting Diagram
Table: WIN7000 Pole Mount Parts List
Item
Quantity
1
1
2
1
3
2
4
4
5
8
6
10
7
10
8
4
9
4
10
4
11
1
12
2
13
2
14
1
12
Description
Mounting brackets
WIN7000
Fastening brackets
Screw 5/16" hex cap × 6"
Nut NF 16 hex
Washer flat 5/16"
Washer spring 5/16"
Screw NC 1/4" × 1/2" hex
Washer flat NC 1/4"
Washer spring NC 1/4
Pole
Bolt NC 1/4"
Screw NC 5/16" × 1/2"
Mounting Upper Bracket
RUGGEDCOM WIN7000
Installation Guide
Pole Mounting
