RUGGEDCOM WIN7000
Installation Guide

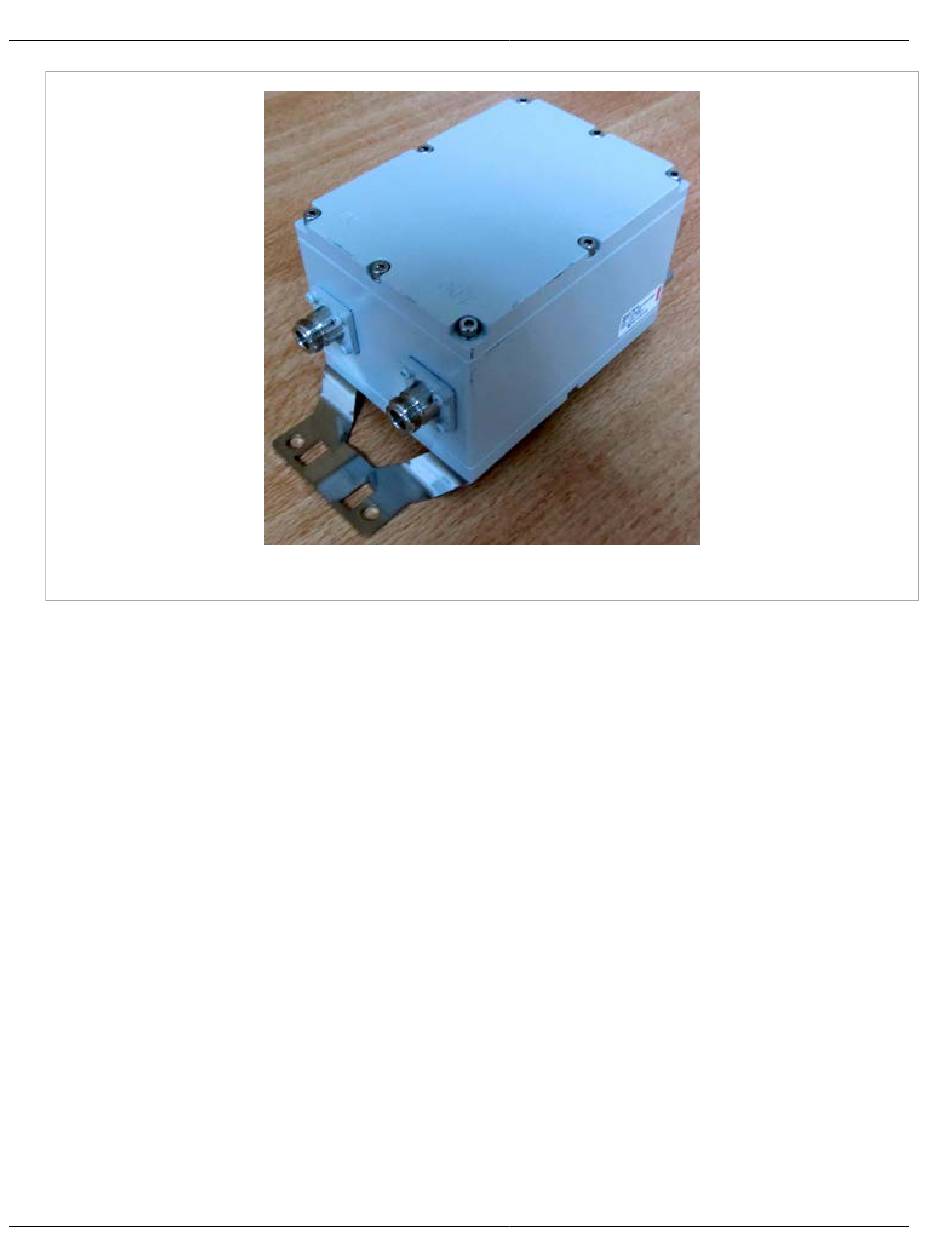

Figure 19: C+D Band Cavity Filter
The cavity filter mounting kit provides the following mounting options:
• Pole mounting: Attach the filters to any pipe or pole with a diameter of 1.75" to 10".
• Wall mounting: Attach the filters to any wall that can support the weight of the filters and mounting bracket.
Procedure: Assembling and Connecting Cavity Filters
1.
Position the cavity filters (Item 1 × 2) on the baseplate (Item 2).
2.
Secure the filters to the baseplate using Flat Washer (M5), Spring Washer (M5), and Screw (M5) (Items 3, 4,
and 5 × 8).
2.3GHz Band Cavity Filters Installation
Chapter 3
Installation Procedures
23
