RUGGEDCOM WIN7000
Installation Guide
Port
Connector
Number
Name
7
ANT2
Section 3.4.6.2
SFA (Optical) Type Base Station
The power system is supplied by Siemens (WINPS).
To connect the power system and cables, do the following:
Procedure: Connecting the Power System and Cables
1.
Connect the supplied DC cable to the power system (WINPS) port labeled DC+ETH.
2.
Connect the other end of the cable to the DC/ETH port on the WIN7000 shown as port 4 in
3.
Connect the optical cable to the F/O connector on the WIN7000 (for more information, see
4.
Connect the optical cable to the network switch.
NOTE
The fiber optic standard is Gigabit Ethernet 1000 Base-LX.

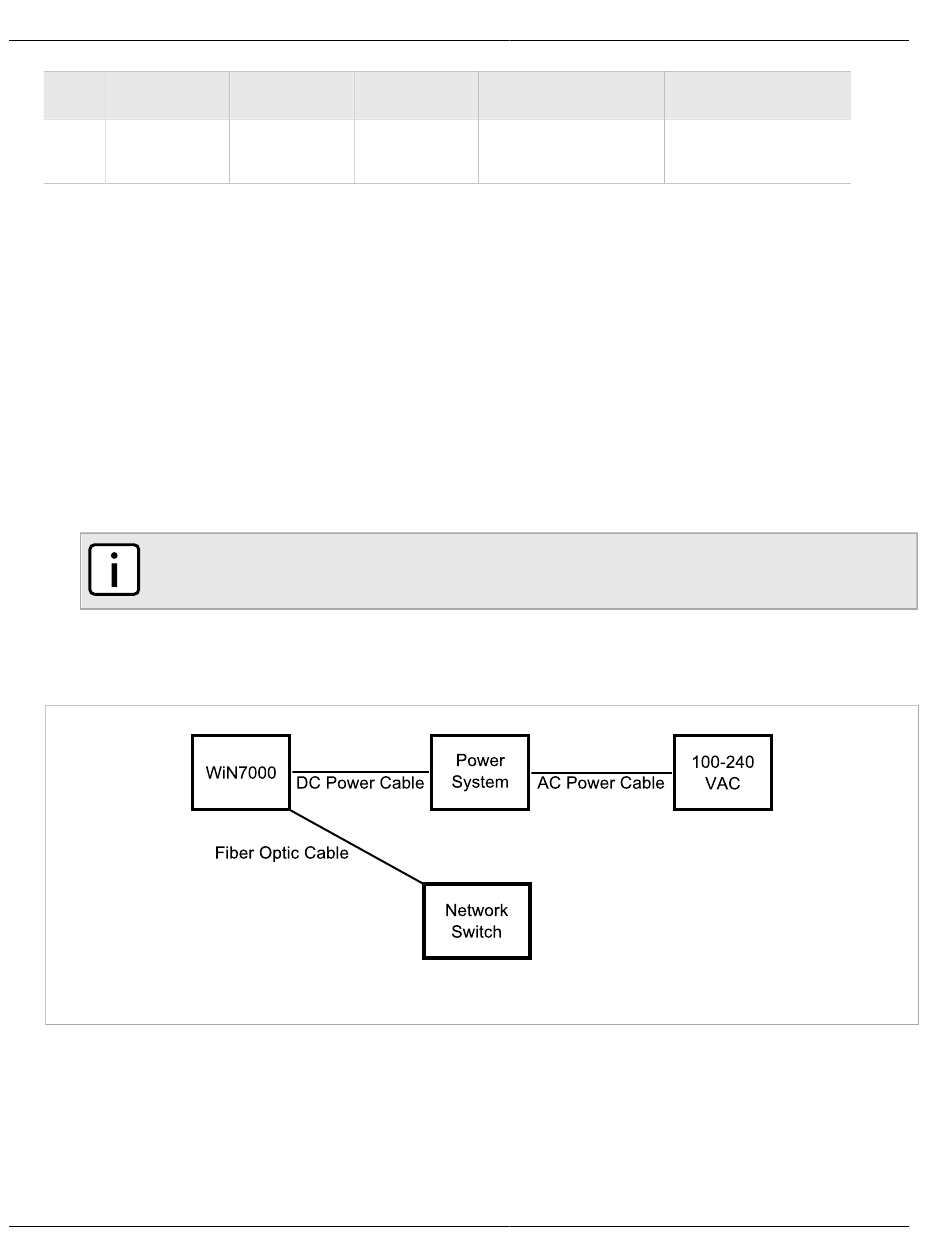

The following figure shows the physical connection between the WIN7000, the power system, and the AC power
source.
Figure 10: Base Station Power Connection
The following figure and table show the ports, connectors and cables.
SFA (Optical) Type Base Station
Connector Type
Cable Type
N type Female
RG 6 or 9
Function
Connected to external
antenna or omni-directional
antenna
Installation Procedures
Connected to
Antenna
Figure
11.
Figure
11).
Chapter 3
17
