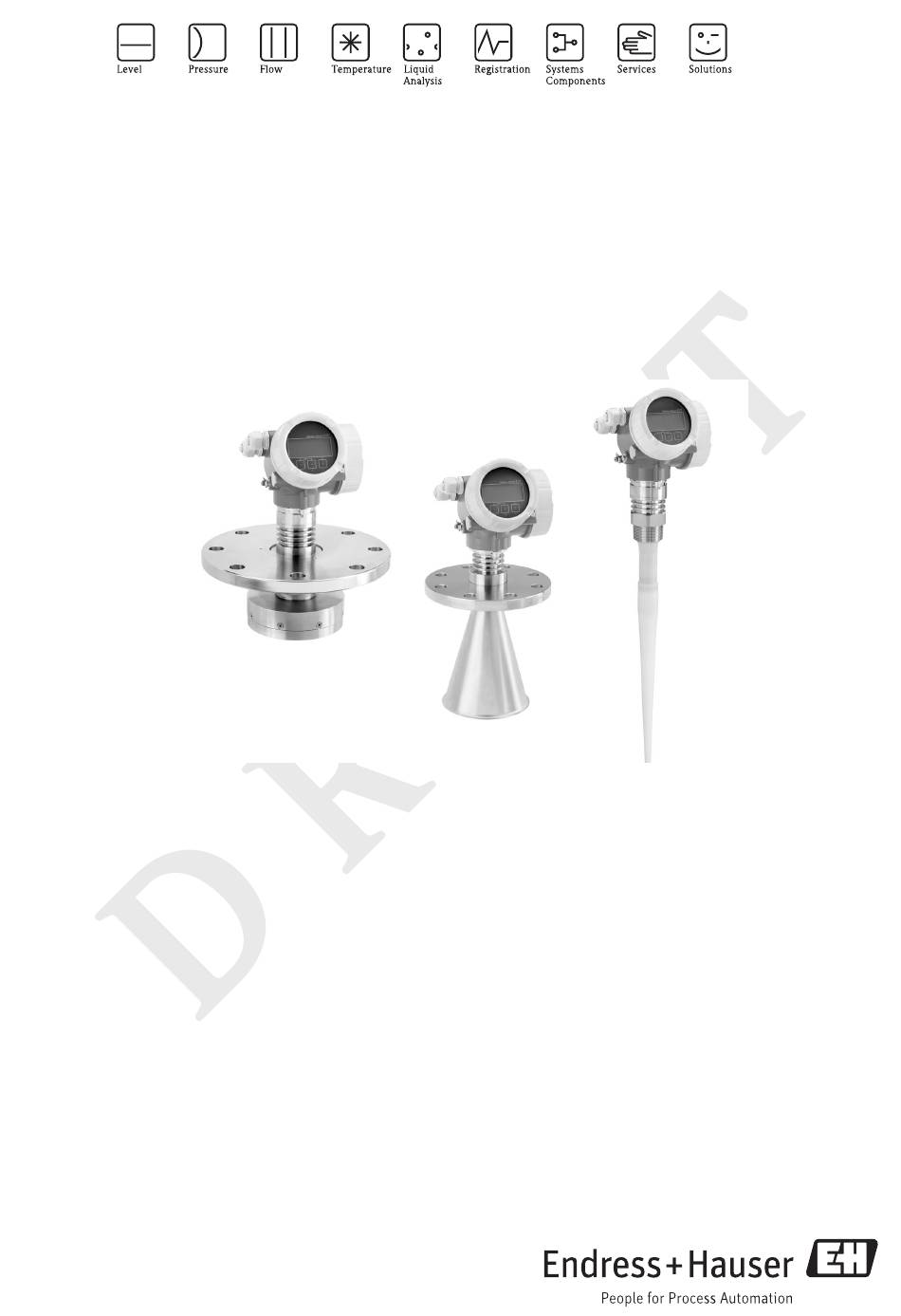

Technical Information
Micropilot FMR53, FMR54
Level radar
Level measurement in liquids
Application
Continuous, non-contact level measurement of liquids,
pastes and slurries
Features FMR53:
• Especially suited for small process connections; PTFE
sensors usable in chemically aggressive media
• Rod antenna
• Maximum measuring range: 20 m (66 ft)
• Process connection: 1½" thread or flange
• Temp. range: –40 to +150 °C (–40 to +302 °F)
• Pressure range: –1 to +40 bar (–14.5 to +580 psi)
• Accuracy: ± 6 mm
Features FMR54:
• Ideally suited for measurements in bypasses and
stilling wells
• Horn or planar antenna
• Maximum measuring range: 20 m (66 ft)
• Process connection: flange
• Temp. range: –196 to +400 °C (–321 to +752 °F)
• Pressure range: –1 to +160 bar (–14.5 to +2 320 psi)
• Accuracy: ± 6 mm
TI01041F/00/EN/01.12
71162678
Your benefits
• Reliable measurement even for changing product and
process conditions
• Integrated data memory (HistoROM) for high
availability
• Intuitive operating menu in national languages for
easy commissioning
• Simple integration into control or asset management
systems
• Exact diagnostic and process information to assist fast
decisions
• International approvals for use in hazardous areas
• 5-point linearity protocol
• WHG and marine approvals
• SIL2 according to IEC 61508, SIL3 in case of
homogeneous or heterogeneous redundancy
• System integration via HART/PROFIBUS PA (Profile
3.02)/FOUNDATION Fieldbus
