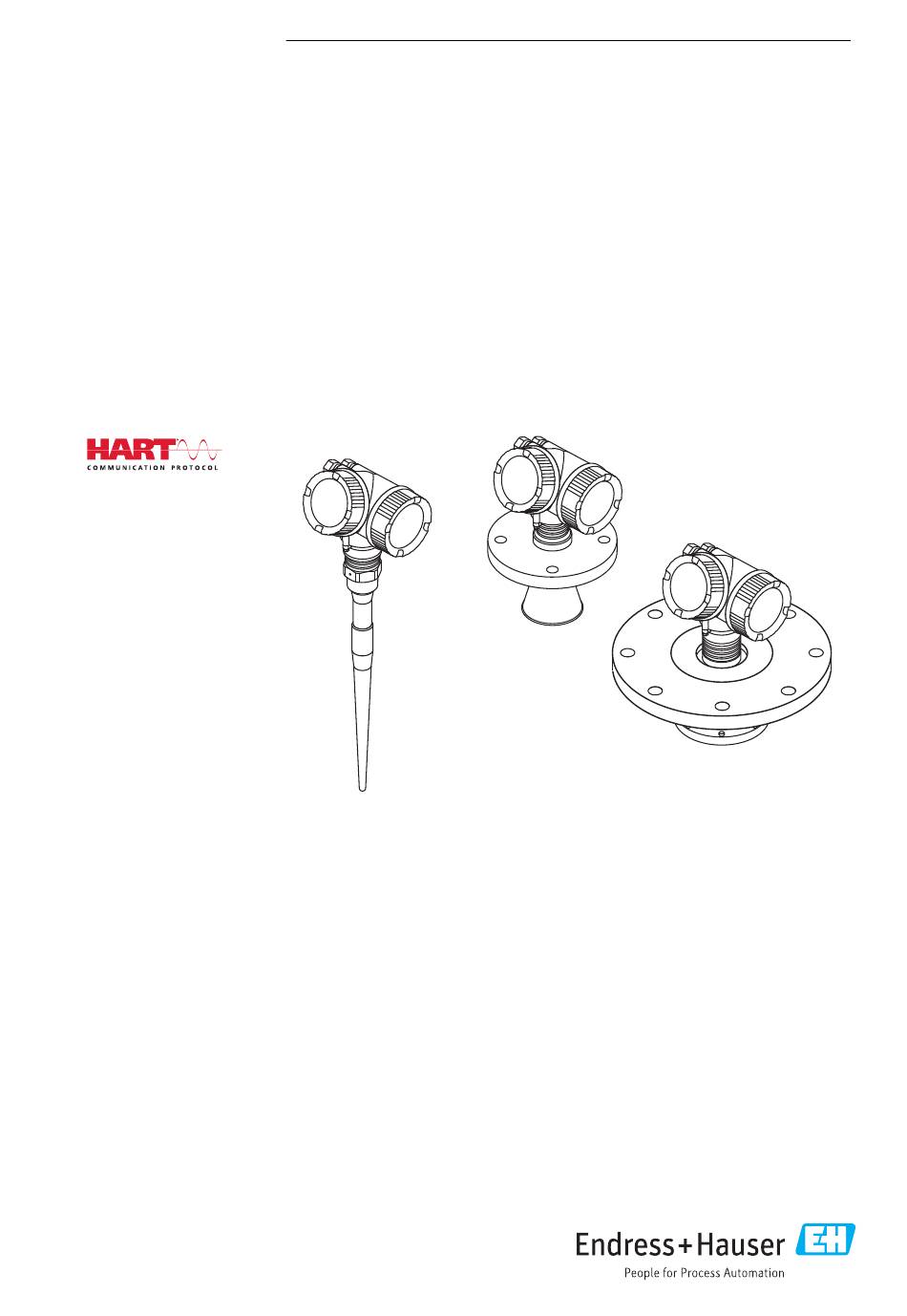

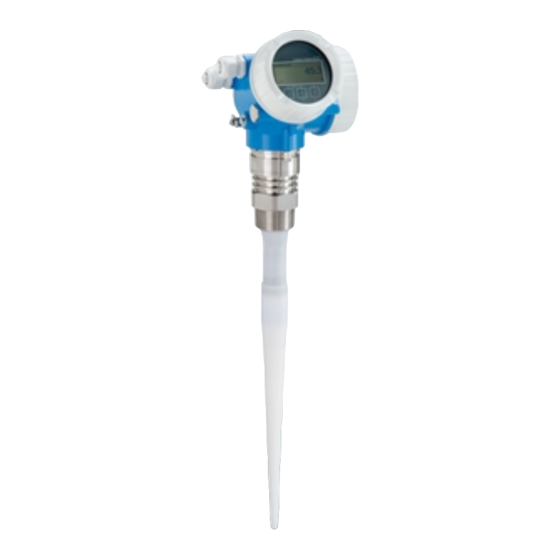

Brief Operating Instructions
Micropilot FMR53, FMR54
HART
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Micropilot FMR53 HART
Summary of Contents for Endress+Hauser Micropilot FMR53 HART
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Micropilot FMR53, FMR54 HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
User-specific applications ............. . . 53 Endress+Hauser... -
Page 4: Important Document Information
• Inner ground terminal: Connects the protectiv earth to the mains supply. • Outer ground terminal: Connects the device to the plant grounding system. 1.1.3 Tool symbols A0011222 A0011220 A0011219 A0013442 A0011221 Cross-head Flat blade Torx screwdriver Allen key Hexagon wrench screwdriver screwdriver Endress+Hauser... - Page 5 Indicates the non-hazardous area. 1.1.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables. Endress+Hauser...
-
Page 6: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability. -
Page 7: Workplace Safety
The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Endress+Hauser... - Page 8 The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the EAC mark. Endress+Hauser...
-
Page 9: Product Description
Micropilot FMR53, FMR54 HART Product description Product description Product design 3.1.1 Micropilot FMR53 A0016790 1 Design of the Micropilot FMR53 (6 GHz) Electronics housing Flange Inactive length Active part of the antenna Process connection (Thread) Endress+Hauser... -
Page 10: Incoming Acceptance And Product Identification
• Do the nameplate data match the ordering information on the delivery note? • Is the DVD with the operating tool present? If required (see nameplate): Are the Safety Instructions (XA) present? If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center. Endress+Hauser... -
Page 11: Product Identification
): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. -
Page 12: Storage, Transport
Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the antenna horn but at the process connection. Take into account the mass center of the device in order to avoid unintended tilting. ‣ Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs) (IEC61010). A0016875 Endress+Hauser... -
Page 13: Installation
• Not in the center (2), as interference can cause signal loss. • Not above the fill stream (3). • It is recommended to us a weather protection cover (1) in order to protect the device from direct sun or rain. A0016882 Endress+Hauser... - Page 14 Installation Micropilot FMR53, FMR54 HART 6.1.2 Vessel installations Avoid any installations (point level switches, temperature sensors, braces, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take into account the beam angle → 17. A0018944 Endress+Hauser...
- Page 15 If the outer wall of the vessel is made of a non-conductive material (e.g. GRP), microwaves can also be reflected off interfering installations outside the vessel (e.g. metallic pipes (1), ladders (2), grates (3), ...). Therefore, there should be no such interfering installations in the signal beam. Please contact Endress+Hauser for further information. Endress+Hauser...
- Page 16 Take into account the marker on the flange or threaded connection → 20 → 23. • Stilling well A stilling well can be applied to avoid interferences → 25. • Metallic screens mounted at a slope They spread the radar signals and can, therefore, reduce interference echoes. Endress+Hauser...
- Page 17 6 m (20 ft) 2.44 m (8 ft) 9 m (30 ft) 3.66 m (12 ft) 12 m (39 ft) 4.88 m (16 ft) 15 m (49 ft) 6.1 m (20 ft) 20 m (66 ft) 8.14 m (27 ft) Endress+Hauser...
-
Page 18: Measuring Conditions
A (see figure) to the tip of the antenna. Affected compounds are e.g. R134a, R227, Dymel 152a. Dielectric constants of important media commonly used in various industries are summarized in the DC manual (CP01076F) and in the Endress+Hauser "DC Values App" (available for Android and iOS). Endress+Hauser... - Page 19 FMR53 50 mm (1.97 in) FMR54 - horn antenna 50 mm (1.97 in) > 0.5 m (1.6 ft) 150 to 300 mm (5.91 to 11.8 in) > 1.5 m (4.9 ft) FMR54 - planar antenna 1 m (3.28 ft) Endress+Hauser...
-
Page 20: Mounting Cladded Flanges
• Align the antenna vertically to the product surface. • A marking at the flange (somwhere between the flange holes) or the boss enables alignment of the antenna. This marking must be aligned towards the tank wall as well as possible. Endress+Hauser... - Page 21 Micropilot FMR53, FMR54 HART Installation ° ° ° ° ° ° A0018974 Depending on the device version the marking may be a circle or two short parallel lines. Endress+Hauser...
- Page 22 • Usually, the PTFE flange cladding also serves as a seal between the nozzle and the device flange. Threaded connection • Tighten with the hexagonal nut only. • Tool : 55 mm hexagonal wrench • Maximum permissible torque: – Thread PVDF: 35 Nm (26 lbf ft) – Thread 316L: 60 Nm (44 lbf ft) Endress+Hauser...
- Page 23 Nozzle mounting The horn antenna must extend below the nozzle; if necessary select the device version with antenna extension 100 to 400 mm (4 to 16 in) See product structure: feature 610 "Accessory Mounted", options OM, ON, OR, OS. Endress+Hauser...
- Page 24 • Do not mount any potential reflectors (e.g. pipes) outside the tank in the signal beam. Suitable thickness of the tank ceiling Penetrated material PTFE Plexiglas DK / ε Optimum thickness 16 mm (0.65 in) 17 mm (0.68 in) 16 mm (0.65 in) 14 mm (0.56 in) Endress+Hauser...
-
Page 25: Installation In Stilling Well
• Select horn antenna as big as possible. For intermedaite sizes (e.g. 180 mm (7 in)) select next larger antenna and adapt it mechanically (for horn antennas) • At any transition (i.e. when using a ball valve or mending pipe segments), no gap may be left exceeding 1 mm (0.04 in). Endress+Hauser... -
Page 26: Installation In Bypass
• Measurements can be performed through an open full bore ball valve without any problems. • After mounting, the housing can be turned 350° in order to facilitate access to the display and the terminal compartment → 27. Endress+Hauser... -
Page 27: Vessels With Heat Insulation
The insulation may not exceed beyond the neck of the housing. Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: Endress+Hauser... -
Page 28: Turning The Display Module
Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Screw the electronics compartment cover back onto the transmitter housing. Tighten the securing clamp with an Allen screw (torque: 2.5 Nm). Endress+Hauser... -
Page 29: Post-Installation Check
• Ambient temperature range • Measuring range Are the measuring point identification and labeling correct (visual inspection)? Is the device adequately protected from precipitation and direct sunlight? Are the securing screw and securing clamp tightened securely? Endress+Hauser... -
Page 30: Electrical Connection
Terminal assignment 2-wire; 4-20mA HART Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥ 250 Ω): Observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Endress+Hauser... - Page 31 Micropilot FMR53, FMR54 HART Electrical connection Analog display device: Observe maximum load Cable screen; observe cable specification 4-20mA HART (passive): Terminals 1 and 2 Overvoltage protection module Terminal for potential equalization line Cable entry Endress+Hauser...
- Page 32 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display device: Observe maximum load Cable screen; observe cable specification 4-20mA HART (passive): Terminals 1 and 2 Switch output (open collector): Terminals 3 and 4 Terminal for potential equalization line Endress+Hauser...
- Page 33 Micropilot FMR53, FMR54 HART Electrical connection Cable entry for 4-20mA HART line Cable entry for switch output line Overvoltage protection module Endress+Hauser...
- Page 34 Connection current output 1 Supply voltage for current output 1 (e.g. RN221N); Observe terminal voltage Cable screen; observe cable specification HART communication resistor (≥ 250 Ω): Observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Endress+Hauser...
- Page 35 Terminal for the potential equalization line Cable entry for current output 1 Cable entry for current output 2 This version is also suited for single-channel operation. In this case, current output 1 (terminals 1 and 2) must be used. Endress+Hauser...
- Page 36 Protective earth, observe cable specification 4...20mA HART (active): Terminals 3 and 4 Supply voltage: Terminals 1 and 2 Supply voltage: Observe terminal voltage, observe cable specification Terminal for potential equalization Cable entry for signal line Cable entry for power supply Endress+Hauser...
- Page 37 Protective earth, observe cable specification 4...20mA HART (active): Terminals 3 and 4 Supply voltage: Terminals 1 and 2 Supply voltage: Observe terminal voltage, observe cable specification Terminal for potential equalization Cable entry for signal line Cable entry for power supply Endress+Hauser...
- Page 38 (flange or threaded connection) or to the external ground terminal. An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010). Endress+Hauser...
- Page 39 For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected Signal - Ground A0011175 Pin assignment of the 7/8" plug connector Meaning Signal - Signal + Not connected Screen A0011176 Endress+Hauser...
- Page 40 In the current simulation mode a voltage U ≥ 12.5 V is required. For ambient temperatures T ≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6 mA). Endress+Hauser...
- Page 41 ≤ -30 °C (-22 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6 mA). Polarity reversal protection Admissible residual ripple at < 1 V f = 0 to 100 Hz Admissible residual ripple at < 10 mV f = 100 to 10000 Hz Endress+Hauser...
- Page 42 < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...
-
Page 43: Connecting The Measuring Device
Loosen the screw of the securing clamp on the connection compartment cover and turn the securing clamp 90° counterclockwise. Unscrew the connection compartment cover. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. Endress+Hauser... - Page 44 In the case of devices without integrated overvoltage protection, electrical connection is via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can be inserted directly into the terminal without using the lever, and create a contact automatically. Endress+Hauser...
-
Page 45: Post-Connection Check
If required: Has protective ground connection been established ? If supply voltage is present, is the device ready for operation and do values appear on the display module? Are all housing covers installed and securely tightened? Is the securing clamp tightened correctly? Endress+Hauser... -
Page 46: Commissioning Via Wizard
If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser... -
Page 47: Commissioning (Via Operating Menu)
Representation of a parameter (here: a parameter with selection list) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Selection list; marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser... - Page 48 Closes the text or numeric editor without applying changes. Minus/Enter key combination (press and hold down the keys simultaneously) Reduces the contrast (brighter setting). A0032910 Plus/Enter key combination (press and hold down the keys simultaneously) Increases the contrast (darker setting). A0032911 Endress+Hauser...
- Page 49 The context menu is closed and the operational display appears. Calling up the menu via the context menu Open the context menu. Press to navigate to the desired menu. Press to confirm the selection. The selected menu opens. Endress+Hauser...
-
Page 50: Operating Menu
In case of operation via operating tools (e.g. FieldCare), the "Language" parameter is located at "Setup → Advanced Setup → Display" On entering the "Expert" menu, an access code is always requested. If a customer specific access code has not been defined, "0000" has to be entered. Endress+Hauser... -
Page 51: Unlock The Device
Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420 17 Using the example of the local display Endress+Hauser... -
Page 52: Configuration Of A Level Measurement
"Setup → Advanced Setup → Level → Tank/silo height" parameter. If there is an outlet cone, the tank or silo height should not be adjusted as usually E is not << tank/silo height in these applications. Endress+Hauser... -
Page 53: User-Specific Applications
Advanced setup submenu. User-specific applications For details of setting the parameters of user-specific applications, see separate documentation: BA01150F (Operating Instructions, FMR53/FMR54, HART) For the Expert submenu refer to: GP01014F/00/EN (Description of Device Parameters, FMR5x, HART) Endress+Hauser... - Page 56 *71378708* 71378708 www.addresses.endress.com...
