Brief Operating Instructions

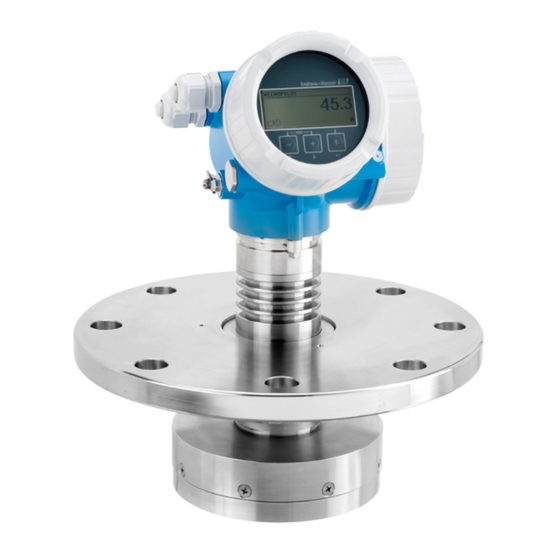

Micropilot FMR53, FMR54
HART
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser HART Micropilot FMR53
Summary of Contents for Endress+Hauser HART Micropilot FMR53
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: Associated Documentation
Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols used 2.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. - Page 3 Symbols for certain types of information and graphics Permitted Procedures, processes or actions that are permitted Forbidden Procedures, processes or actions that are forbidden Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Endress+Hauser...
-
Page 4: Basic Safety Instructions
To ensure that the measuring device remains in proper condition for the operation time: ‣ Use the measuring device only for media to which the process-wetted materials are sufficiently resistant. ‣ Observe the limit values in the "Technical data". Endress+Hauser... -
Page 5: Workplace Safety
Clarification in the case of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 6: Incoming Acceptance And Product Identification
• Does the data on the nameplate match the order specifications on the delivery note? • Is the DVD with the operating tool present? If required (see nameplate), have the Safety Instructions (XA) been provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Storage and transport 4.2.1 Storage conditions •... -
Page 7: Mounting Location
15 cm (5.91 in) to the tank wall. Use of a weather protection cover; protection from direct sunlight or rain Installation in the center, interference can cause signal loss Do not install above the filling curtain Endress+Hauser... - Page 8 Micropilot FMR53, FMR54 HART Orientation Internal vessel fittings α A0018944 Avoid the location of internal fittings (limit switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take into account the beam angle. Avoiding interference echoes α A0016890 Endress+Hauser...
-
Page 9: Beam Angle
6 m (20 ft) 2.44 m (8 ft) 9 m (30 ft) 3.66 m (12 ft) 12 m (39 ft) 4.88 m (16 ft) 15 m (49 ft) 6.1 m (20 ft) 20 m (66 ft) 8.14 m (27 ft) Endress+Hauser... - Page 10 • Align the antenna perpendicular to the product surface. • A marking is provided on the flange (at a point between the flange holes) or the gland to aid the alignment. This marking must be aligned towards the tank wall as much as possible. Endress+Hauser...
- Page 11 Micropilot FMR53, FMR54 HART Mounting 90° 90° 90° 90° 90° 90° 90° 90° 90° 90° A0018974 Depending on the device version the marking may be a circle or two parallel lines. Endress+Hauser...
- Page 12 Information concerning threaded connections • Tighten by the hexagonal nut only. • Tool: open-ended wrench 55 mm • Maximum permissible torque: • Thread PVDF: 35 Nm (26 lbf ft) • Thread 316L: 60 Nm (44 lbf ft) Endress+Hauser...
- Page 13 60 to 90 Nm NPS 8" Cl.150 115 to 170 Nm NPS 8" Cl.300 90 to 135 Nm 10K 50A 40 to 60 Nm 10K 80A 25 to 35 Nm 10K 100A 35 to 55 Nm 10K 150A 75 to 115 Nm Endress+Hauser...
- Page 14 Depending on the device version the marking may be a circle or two parallel lines. Information concerning nozzles The horn antenna should project out of the nozzle; if necessary, select the version with antenna extension 100 to 400 mm (4 to 16 in) (accessory). Endress+Hauser...
- Page 15 • Do not install any fittings or attachments between the antenna and the tank that could reflect the signal. Suitable thickness of the tank ceiling: Penetrated material PTFE Plexiglass ε Optimum thickness 16 mm (0.65 in) 17 mm (0.68 in) 16 mm (0.65 in) 14 mm (0.56 in) Endress+Hauser...
-
Page 16: Container With Heat Insulation
350° 8 mm 8 mm A0032242 Unscrew the securing screw using an open-ended wrench. Rotate the housing in the desired direction. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or stainless steel housing). Endress+Hauser... -
Page 17: Turning The Display
Turn the display module to the desired position: Max. 8 × 45 ° in each direction. Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Endress+Hauser... -
Page 18: Electrical Connection
Without integrated overvoltage protection With integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, without integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser... - Page 19 Connection, switch output (open collector): terminals 3 and 4, without integrated overvoltage protection Connection, switch output (open collector): terminals 3 and 4, with integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
- Page 20 Connection current output 2, 4 to 20 mA: terminals 3 and 4, with integrated overvoltage protection Connection current output 1, 4 to 20 mA HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
- Page 21 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V A0036516 10 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V Connection 4 to 20 mA HART (active): terminals 3 and 4 Connection, supply voltage: terminals 1 and 2 Terminal for cable shield Endress+Hauser...
- Page 22 Terminal assignment, 4-wire: 4 to 20 mA HART (90 to 253 V A0036519 12 Terminal assignment, 4-wire: 4 to 20 mAHART (90 to 253 V Connection 4 to 20 mA HART (active): terminals 3 and 4 Connection, supply voltage: terminals 1 and 2 Terminal for cable shield Endress+Hauser...
- Page 23 Cable screen; observe cable specification Measuring device Supply voltage; observe terminal voltage, observe cable specification 6.1.2 Device plug In the case of the device versions with a plug, the housing does not need to be opened to connect the signal cable. Endress+Hauser...
- Page 24 3) 4) 5) A: 2-wire; • Non-Ex 10.4 to 35 V [Ω 4-20mA • Ex nA HART • Ex ic • CSA GP 3) 4) 5) Ex ia / IS 10.4 to 30 V U 0 [V] 10.4 21.4 Endress+Hauser...
- Page 25 At ambient temperatures T ≤ -30 °C, a terminal voltage ≥ U 16 V is required to start the device with the minimum error current (3.6 mA). When using the Bluetooth module, this minimum supply voltage increases by 3 V. Endress+Hauser...
-
Page 26: Connecting The Device
Check to ensure that the power supply matches the information on the nameplate. ‣ Switch off the power supply before connecting the device. ‣ Connect the potential matching line to the outer ground terminal before applying the power supply. Endress+Hauser... - Page 27 Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. Remove the cable sheath. Strip the cable ends 10 mm (0.4 in). In the case of stranded cables, also fit ferrules. Firmly tighten the cable glands. Endress+Hauser...
- Page 28 Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes Simultaneously pull the cable end out of the terminal. 6.2.4 Closing the cover of the connection compartment 3 mm 2,5 Nm A0021491 Endress+Hauser...
-
Page 29: Operation Options
2.5 Nm. Operation options The device can be operated as follows: • Operation via operating menu (display) • DeviceCare / FieldCare, see Operating Instructions • SmartBlue (app), Bluetooth (optional), see Operating Instructions A0033202 18 Download link Endress+Hauser... -
Page 30: Structure And Function Of The Operating Menu
Visualization of a parameter (here: parameter with picklist) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Picklist; marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser... - Page 31 • If present, opens the help text for the function of the parameter. • In a text and numeric editor: Pressing the key briefly: • Opens the selected group. • Carries out the selected action. • Carries out the selected action. Endress+Hauser...
-
Page 32: Opening The Context Menu
The context menu is closed and the operational display appears. Calling up the menu via the context menu Open the context menu. Press to navigate to the desired menu. Press to confirm the selection. The selected menu opens. Endress+Hauser... -
Page 33: Operating Menu
FMR5x, HART has been defined. Disabling write protection If the device is write-protected, it must first be unlocked, see Operating Instructions. BA01150F - Operating Instructions, FMR53/FMR54, HART Setting the operating language Factory setting: English or ordered local language Endress+Hauser... - Page 34 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420 21 Taking the example of the local display Endress+Hauser...
-
Page 35: Configuring Level Measurement
Continuous level monitoring in the upper third of a tank or silo. Note: For tanks with conical outlet, this parameter should not be changed as in this type of applications ' E mpty calibration' is usually not << the tank or silo height. Endress+Hauser... -
