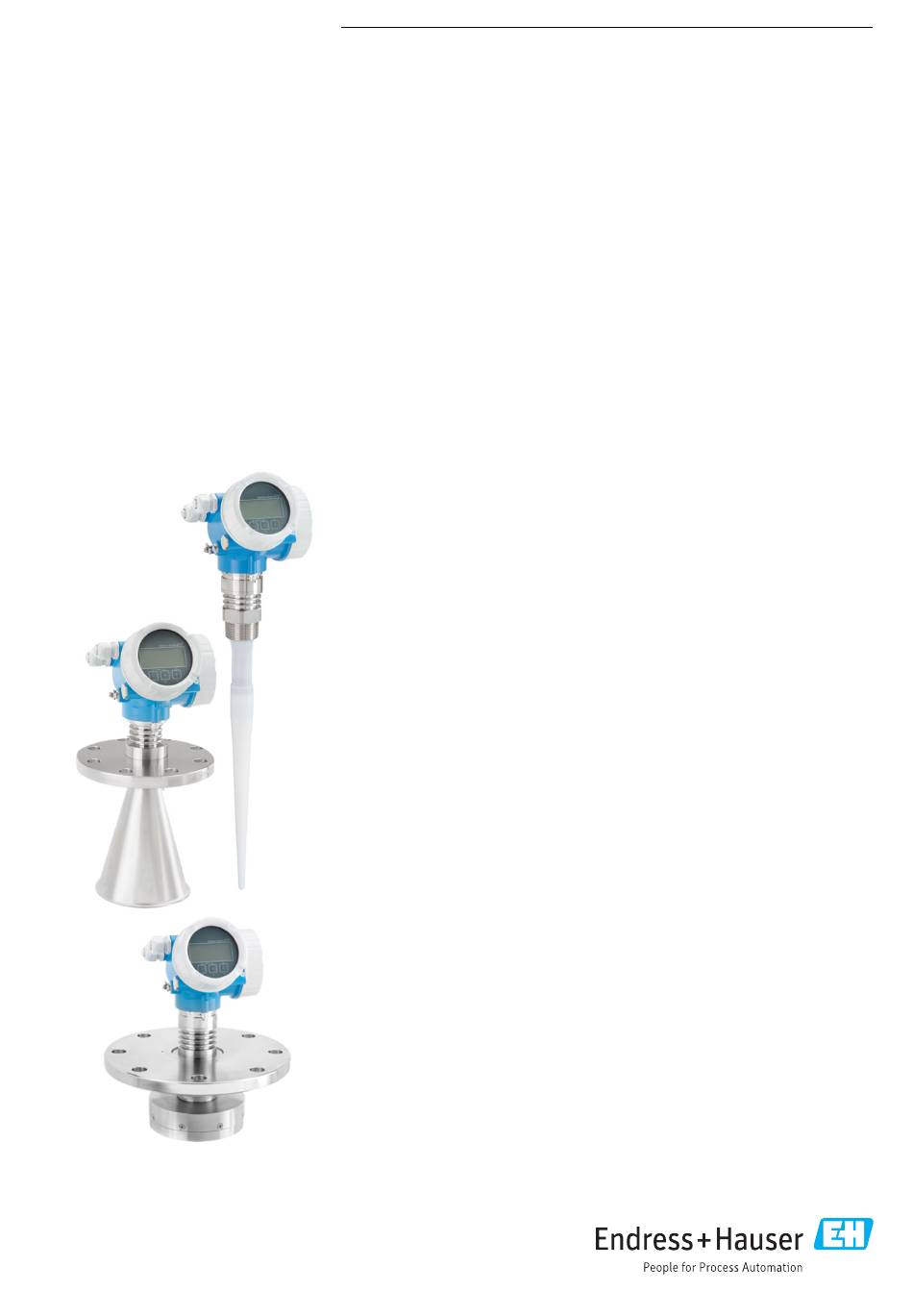

TI01041F/00/EN/10.20
71486057
2020-07-31
Products
Technical Information

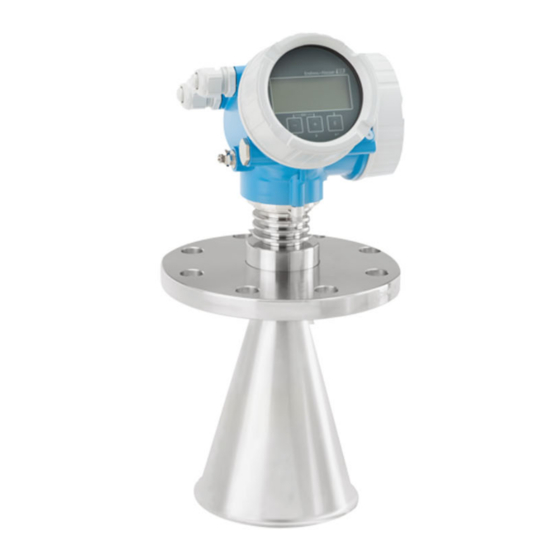

Micropilot FMR53, FMR54
Free space radar
Level measurement in liquids
Application
• Continuous, non-contact level measurement of liquids, pastes and slurries
• Rod antenna (FMR53); horn or planar antenna (FMR54)
• Maximum measuring range: 20 m (66 ft);
for FMR54 with planar antenna in stilling well: 38 m (125 ft)
• Process temperature: –196 to +400 °C (–321 to +752 °F)
• Process pressure: –1 to +160 bar (–14.5 to +2 320 psi)
• Accuracy: ± 6 mm
• International explosion protection certificates; WHG; marine approvals
• Linearity protocol (3-point, 5-point)
Your benefits
• Reliable measurement even for changing product and process conditions
• HistoROM data management for easy commissioning, maintenance and
diagnostics
• Highest reliability due to Multi-Echo Tracking
• SIL2 according to IEC 61508, SIL3 in case of homogeneous or heterogeneous
redundancy
• Seamless integration into control or asset management systems
• Intuitive user interface in national languages
• Bluetooth® wireless technology for commissioning, operation and maintenance via
free iOS / Android app SmartBlue
• Easy proof test for SIL and WHG
• Heartbeat Technology™
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR53

Summary of Contents for Endress+Hauser Micropilot FMR53

  • Page 1 Solutions Services TI01041F/00/EN/10.20 71486057 2020-07-31 Technical Information Micropilot FMR53, FMR54 Free space radar Level measurement in liquids Application • Continuous, non-contact level measurement of liquids, pastes and slurries • Rod antenna (FMR53); horn or planar antenna (FMR54) • Maximum measuring range: 20 m (66 ft);...
  • Page 2 Micropilot FMR53, FMR54 Table of contents Important document information ....4 Environment ......49 Document function .
  • Page 3 Micropilot FMR53, FMR54 Ordering information ..... . . 91 Ordering information ......91 3-point linearity protocol .

  • Page 4: Document Function

    Micropilot FMR53, FMR54 Important document information Document function These Operating Instructions provide all of the information that is required in various phases of the life cycle of the device including: • Product identification • Incoming acceptance • Storage • Installation •...

  • Page 5: Terms And Abbreviations

    Document type "Safety Instructions" Nominal pressure FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...

  • Page 6: Registered Trademarks

    Registered trademark of SCHNEIDER AUTOMATION, INC. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 7: Measuring Principle

    Micropilot FMR53, FMR54 Function and system design Measuring principle The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method (ToF). It measures the distance from the reference point R (process connection of the measuring device) to the product surface. Radar pulses are emitted by an antenna, reflected off the product surface and received again by the radar system.

  • Page 8: Operation

    • Measurement is independent of product properties • Hardware and software developed according to SIL IEC 61508 Procurement • As the global market leader in level measurement, Endress+Hauser guarantees the security of your investment • Worldwide support and service Installation •...

  • Page 9: Measuring Range

    Treat ammonia gas (NH ) like "group A" media. For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Endress+Hauser...
  • Page 10 Micropilot FMR53, FMR54 Device Storage vessel Buffer vessel A0018833 A0018835 Calm surface (e.g. bottom filling, filling via immersion tube or rare Moving surface (e.g. continuous free filling from above, mixing filling from above) jets) Antenna type/size Antenna type/size FMR53 Rod 390 mm (15 in)
  • Page 11 Micropilot FMR53, FMR54 Device Vessel with agitator Stilling well Bypass A0018840 A0018839 A0018837 Turbulent surface (e.g. filling from above, agitators, baffles etc.) Antenna type/size Antenna type/size FMR53 Rod 390 mm (15 in) Rod 540 mm (21 in) FMR54 Horn 150 mm (6 in)

  • Page 12: Operating Frequency

    Micropilot FMR53, FMR54 Operating frequency C-band (~ 6 GHz) As the transmission pulses are statistically coded, up to 8 Micropilot transmitters can be installed in the same tank. Transmission power Distance Mean power density in the direction of the beam 1 m (3.3 ft)
  • Page 13 Micropilot FMR53, FMR54 Output Output signal HART • Signal coding: FSK ±0.5 mA over current signal • Data transmission rate: 1 200 Bit/s • Galvanic isolation: Bluetooth® wireless technology • Device version: Order code 610 "Accessory mounted", option NF "Bluetooth"...

  • Page 14: Galvanic Isolation

    Micropilot FMR53, FMR54 • Scan rate: Corresponds to the measuring cycle • Signal source / device variables: • Level linearized • Distance • Terminal voltage • Electronic temperature • Relative echo amplitude • Diagnostic values, advanced diagnostic blocks • Only for active interface measurement •...
  • Page 15 Micropilot FMR53, FMR54 HART device variables The measured values can be freely assigned to the device variables. Measured values for PV (primary variable) • Level linearized • Distance • Electronic temperature • Relative echo amplitude • Area of incoupling • Analog output adv. diagnostics 1 •...
  • Page 16 Micropilot FMR53, FMR54 Input values Analog Output: • Analog value from PLC (for sensor block, external pressure to compensate for gas phase effects) • Analog value from PLC for transmission to display Digital Output: • Extended Diagnostic Block • Level Limiter •...
  • Page 17 Contains parameters for backing up the device No output values Transducer Block configuration in the display module and for writing the saved configuration to the device. Access to these parameters is reserved for Endress+Hauser Service. Function blocks Block Contents Number of...
  • Page 18 Micropilot FMR53, FMR54 Block Contents Number of Number of Execution Functionality permanent instantiatable time blocks blocks Multiple The Multiple Analog Output 20 ms Standard Analog Output Block is used to transmit analog Block values from the bus to the device.

  • Page 19: Terminal Assignment

    Micropilot FMR53, FMR54 Power supply Terminal assignment Terminal assignment 2-wire: 4-20 mA HART A0036498  2 Terminal assignment 2-wire: 4-20 mA HART Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 20 Micropilot FMR53, FMR54 Terminal assignment 2-wire: 4-20 mA HART, switch output A0036500  4 Terminal assignment 2-wire: 4-20 mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 21 Micropilot FMR53, FMR54 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA A0036500  6 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 1, 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage...
  • Page 22 Micropilot FMR53, FMR54 Terminal assignment 4-wire: 4-20 mA HART (10.4 to 48 V A0036516  8 Terminal assignment 4-wire: 4-20 mA HART (10.4 to 48 V Connection 4-20 mA HART (active): terminals 3 and 4 Connection supply voltage: terminals 1 and 2 Terminal for cable screen Block diagram 4-wire: 4-20 mA HART (10.4 to 48 V...
  • Page 23 Micropilot FMR53, FMR54 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V A0036519  10 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V Connection 4-20 mA HART (active): terminals 3 and 4 Connection supply voltage: terminals 1 and 2...
  • Page 24 Micropilot FMR53, FMR54 Block diagram 4-wire: 4-20 mA HART (90 to 253 V A0036527  11 Block diagram 4-wire: 4-20 mA HART (90 to 253 V Evaluation unit, e.g. PLC HART communication resistor (≥ 250 Ω); observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display device;...
  • Page 25 Micropilot FMR53, FMR54 Block diagram PROFIBUS PA / FOUNDATION Fieldbus A0036530  13 Block diagram PROFIBUS PA / FOUNDATION Fieldbus Cable screen; observe cable specifications Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector) Endress+Hauser...
  • Page 26 Micropilot FMR53, FMR54 Connection examples for the switch output For HART devices, the switch output is available as an option. A0015909  14 Connection of a relay A0015910  15 Connection to a digital input Pull-up resistor Digital input For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or pull-up resistor) of <...
  • Page 27 Micropilot FMR53, FMR54 Device plugs In device versions with a device plug (M12 or 7/8"), it is not necessary to open the housing in order to connect the signal cable. A0011175  16 Pin assignment of M12 plug Signal + Not assigned Signal –...
  • Page 28 Micropilot FMR53, FMR54 Supply voltage An external power supply is necessary. Various power supply units can be ordered from Endress+Hauser: see "Accessories" section 2-wire, 4-20mA HART, passive "Power supply, "Approval" Terminal voltage U Maximum load R, depending on the supply voltage U of the power supply unit output"...
  • Page 29 Micropilot FMR53, FMR54 "Power supply, "Approval" Terminal voltage U at Maximum load R, depending on the supply voltage U of the power supply unit output" device 3) 4) C: 2-wire; 4-20mA 13 to 28 V R [ ] HART, 4-20mA...

  • Page 30: Current Consumption

    Micropilot FMR53, FMR54 4-wire, 4-20mA HART, active "Power supply; output" Terminal voltage U Maximum load R K: 4-wire 90-253VAC; 4-20mA HART 90 to 253 V (50 to 60 Hz), overvoltage 500 Ω category II L: 4-wire 10.4-48VDC; 4-20mA HART 10.4 to 48 V...

  • Page 31: Potential Equalization

    Micropilot FMR53, FMR54 FOUNDATION Fieldbus Device basic current 15 mA Failure current FDE (Fault 0 mA Disconnection Electronic) FISCO 17.5 V 550 mA 5.5 W 5 nF 10 μH Power supply failure • Configuration is retained in the HistoROM (EEPROM).

  • Page 32: Overvoltage Protection

    400 to 700 V Threshold impulse voltage < 800 V Capacitance at 1 MHz < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. Endress+Hauser...

  • Page 33: Performance Characteristics

    Micropilot FMR53, FMR54 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) ±5 °C (±9 °F) conditions • Pressure = 960 mbar abs. (14 psia) ±100 mbar (±1.45 psi) • Humidity = 60 % ±15 % • Reflector: metal plate with a diameter ≥ 1 m (40 in) •...
  • Page 34 Micropilot FMR53, FMR54 Gas phase Temperature Pressure 1 bar (14.5 psi) 10 bar (145 psi) 50 bar (725 psi) 100 bar (1 450 psi) 160 bar (2 320 psi) Water (saturated steam) 100 °C (212 °F) 0.02 % 180 °C (356 °F) 2.1 %...

  • Page 35: Installation

    Micropilot FMR53, FMR54 Installation Installation conditions Orientation A0016882 • Recommended distance A wall - nozzle outer edge: ~ 1/6 of the vessel diameter. However, the device must not under any circumstances be mounted closer than 30 cm (11.8 in) to the tank wall.
  • Page 36 Micropilot FMR53, FMR54 Internal vessel fittings α A0018944 Avoid the location of internal fittings (limit switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take the beam angle into account. Avoiding interference echoes α A0016890 Metal orifice plates, installed at an angle to scatter the radar signals, help prevent interference echoes.

  • Page 37: Optimization Options

    Micropilot FMR53, FMR54 Measurement in a plastic vessel If the outer wall of the vessel is made of a non-conductive material (e.g. GFRP) microwaves can also be reflected off interfering installations outside of the vessel (e.g. metallic pipes (1), ladders (2), grates (3) etc.).
  • Page 38 DC Manual (CP00019F) and in Endress+Hauser' s "DC Values App" (available for Android and iOS). • In principle it is possible to measure up to the tip of the antenna with FMR51, FMR53 and FMR54.
  • Page 39 Micropilot FMR53, FMR54 100% A0042709 Horn antenna: antenna length + 50 mm (2 in); min. 200 mm (7.87 in) Planar antenna: 1 m (3.28 ft) 150 to 300 mm (5.91 to 11.8 in); (water-based medium up to ε = 2) >...
  • Page 40 Micropilot FMR53, FMR54 Flange size Number of screws Tightening torque 10K 50A 40 to 60 Nm 10K 80A 25 to 35 Nm 10K 100A 35 to 55 Nm 10K 150A 75 to 115 Nm Free-space installation in Rod antenna (FMR53)
  • Page 41 Micropilot FMR53, FMR54 Information concerning nozzles A0016821  19 Nozzle height for rod antenna (FMR53) Antenna inactive length Beam exit from here Length of antenna 390 mm (15.4 in) 540 mm (21.3 in) Nozzle height H < 100 mm (3.94 in) <...
  • Page 42 Micropilot FMR53, FMR54 90° 90° 90° 90° 90° 90° 90° 90° 90° 90° A0018974 Depending on the device version the marking may be a circle or two parallel lines. Information concerning nozzles The horn antenna should project out of the nozzle; select the version with the antenna extension 100 to 400 mm (4 to 16 in) if necessary (accessory).

  • Page 43: Installation In Stilling Well

    Micropilot FMR53, FMR54 • If possible, avoid installation positions in which condensate or buildup can form between the antenna and the vessel. • In the case of outdoor installations, ensure that the area between the antenna and the tank is protected from the weather.
  • Page 44 Micropilot FMR53, FMR54 • The stilling well must be smooth on the inside (average roughness R ≤ 6.3 μm (248 μin)). Use an extruded or parallel-welded metal pipe as the measuring pipe. The pipe can be extended with welding neck flanges or pipe sleeves. Flush-align the flange and pipe properly on the inside.
  • Page 45 Micropilot FMR53, FMR54 Example for the design of a stilling well 100% 100% A0019009 Micropilot FMR50/FMR51: horn 40 mm (1½") Micropilot FMR50/FMR51/FMR52/FMR54: horn 80 mm (3") Stilling well with slots Full bore ball valve Marking for axial alignment Threaded connection e.g.
  • Page 46 Micropilot FMR53, FMR54 Installation in the bypass 90° 90° A0019446  22 Installation in the bypass Marking to align the antenna Tank connectors • Align the marker at a 90 ° angle to the tank connectors. • Measurements can be performed through an open full bore ball valve without any problems.
  • Page 47 Micropilot FMR53, FMR54 Example for the design of a bypass 100% A0019010 Micropilot FMR50/FMR51/FMR52/FMR54: horn 80 mm (3") Full bore ball valve Minimum distance to upper connecting pipe: 400 mm (15.7 in) Marking for axial alignment e.g. welding neck flange DIN2633 Diameter of connecting pipes as small as possible Do not weld through the pipe wall;...

  • Page 48: Container With Heat Insulation

    Micropilot FMR53, FMR54 Container with heat insulation A0032207 If process temperatures are high, the device should be included in the usual container insulation system (2) to prevent the electronics from heating as a result of thermal radiation or convection. The insulation should not be higher than the neck of the device (1).

  • Page 49: Temperature Range

    Micropilot FMR53, FMR54 Environment Temperature range Measuring device –40 to +80 °C (–40 to +176 °F); –50 °C (–58 °F) with manufacturer declaration on request Measuring device (option –50 to +80 °C (–58 to +176 °F) for FMR51, FMR52 and...
  • Page 50 Micropilot FMR53, FMR54 FMR53 Process connection: PVDF thread Housing GT18 (316 L) Temperature specifications: °C (°F) A0019351 Power supply; output (item 2 in the product structure) Channel 2 not used (-40) (176) (176) (176) (176) (176) (176) (-40) (-40) (-40)
  • Page 51 Micropilot FMR53, FMR54 FMR53 Process connection: PVDF thread Housing GT20 (aluminum coated) Temperature specifications: °C (°F) A0019351 Power supply; output (item 2 in the product structure) (-40) (176) (176) (176) (176) (176) (176) (-40) (-40) (-40) Switch output not used...
  • Page 52 Micropilot FMR53, FMR54 FMR53 Process connection: • Thread 316L • Flange GT19 housing (plastic PBT) Temperature specifications: °C (°F) A0019351 Power supply; output (item 2 in the product structure) (-40) (176) (176) (176) (302) (131) (302) (-40) (-40) (-40) Switch output not used...
  • Page 53 Micropilot FMR53, FMR54 FMR54 Horn antenna Seal: • Viton • EPDM • Kalrez Housing GT18 (316 L) A0019351 Temperature specifications: °C (°F) Power supply; output (item 2 in the product structure) (-40) (178) (178) (178) (392) (126) (392) (-40) (-40)
  • Page 54 Micropilot FMR53, FMR54 FMR54 Horn antenna Seal: • Viton • EPDM • Kalrez Housing GT20 (aluminum coated) A0019351 Temperature specifications: °C (°F) Power supply; output (item 2 in the product structure) (-40) (178) (178) (178) (392) (135) (392) (-40) (-40)
  • Page 55 Micropilot FMR53, FMR54 FMR54 Horn antenna Seal: graphite –196 to 280 °C (–321 to 536 °F) GT19 housing (plastic PBT) Temperature specifications: °C (°F) A0019344 Power supply; output (item 2 in the product structure) -196 -196 (-321) (176) (176) (176)
  • Page 56 Micropilot FMR53, FMR54 FMR54 Horn antenna Seal: graphite –196 to 400 °C (–321 to 752 °F) Housing GT18 (316 L) Temperature specifications: °C (°F) A0019344 Power supply; output (item 2 in the product structure) -196 -196 (-321) (178) (178) (178)
  • Page 57 Micropilot FMR53, FMR54 FMR54 Horn antenna Seal: graphite –196 to 400 °C (–321 to 752 °F) Housing GT20 (aluminum coated) Temperature specifications: °C (°F) A0019344 Power supply; output (item 2 in the product structure) -196 -196 (-321) (178) (178) (178)

  • Page 58: Storage Temperature

    Micropilot FMR53, FMR54 FMR54 Planar antenna GT19 housing (plastic PBT) Temperature specifications: °C (°F) A0019351 Power supply; output (item 2 in the product structure) (-40) (176) (176) (176) (302) (140) (302) (-40) (-40) (-40) Switch output not used (-40) (169)

  • Page 59: Vibration Resistance

    Micropilot FMR53, FMR54 Altitude according to • Generally up to 2 000 m (6 600 ft) above MSL. • Above 2 000 m (6 600 ft) if the following conditions are met: IEC61010-1 Ed.3 • Ordering feature 020 "Power supply; Output" = A, B, C, E or G (2-wire versions) •...

  • Page 60: Process Temperature, Process Pressure

    Micropilot FMR53, FMR54 Process Process temperature, process The pressure ranges indicated can be reduced by the choice of process connection. The nominal pressure pressure (PN) indicated on the nameplate refers to a reference temperature of 20 °C, and of 100 °F for ASME flanges. Observe pressure-temperature dependency.
  • Page 61 Micropilot FMR53, FMR54 FMR54 [bar] ([psi]) 64 (928) 0 (0) -1 (-14.5) [°C] +150 +200 (-40) (+32) (+302) (+392) ([°F]) [bar] ([psi]) 64 (928) 0 (0) -1 (-14.5) [°C] +150 +200 (-40) (-4) (+32) (+302) (+392) ([°F]) [bar] ([psi]) 160 (2320)
  • Page 62 Micropilot FMR53, FMR54 [bar] ([psi]) 25 (375) 20 (300) 10 (150) 5 (75) A0020552-EN  25 FMR54 with planar antenna: Permitted range for process temperature and process pressure Feature 070 "Antenna" Feature 090 Process temperature Process pressure range "Seal" range •...

  • Page 63: Mechanical Construction

    Micropilot FMR53, FMR54 Mechanical construction Dimensions Dimensions of the electronics housing 98 (3.86)* 78 (3.07) 90 (3.54) A0011666  26 Housing GT18 (316L). Unit of measurement mm (in) *For devices with integrated overvoltage protection. 99 (3.9)* 78 (3.07) 90 (3.54) A0011346 ...
  • Page 64 Micropilot FMR53, FMR54 FMR53 with flange øD øD ø33 (1.3) ø33 (1.3) A0023390  29 Dimensions of device with flange. Unit of measurement mm (in) Process connection: flange 316/316L (without cladding) Process connection: flange PTFE>316L (cladded) Reference point of measurement...
  • Page 65 Micropilot FMR53, FMR54 Flanges as per JIS B2220 Nominal diameter Pressure rating ØD 10 K 16 mm (0.63 in) 155 mm (6.1 in) 10 K 18 mm (0.71 in) 185 mm (7.28 in) 100A 10 K 18 mm (0.71 in) 210 mm (8.27 in)
  • Page 66 Micropilot FMR53, FMR54 FMR53 with thread ø33 (1.3) ø33 (1.3) A0023391  30 Dimensions of device with thread. Unit of measurement mm (in) Process connection: thread 316L Process connection: PVDF thread Reference point of measurement Length of antenna Inactive length Antenna Rod 390mm/15"...
  • Page 67 Micropilot FMR53, FMR54 FMR54 with horn antenna (3.07) ød ød ød øD øD øD ød øD A0017809  31 Dimensions of FMR54 with horn antenna. Unit of measurement mm (in) Seal: Viton/EPDM/Kalrez Seal: graphite, –196 to +280 °C (–321 to +536 °F)(XT) Seal: graphite, –196 to +400 °C (–321 to +752 °F)(HT)
  • Page 68 Micropilot FMR53, FMR54 FMR54 with planar antenna ø150(5.91) ø150(5.91) øE øe øE A0017810 Unit of measurement mm (in) With horn extension (for planar antenna 200mm/8" to 300mm/12") Without horn extension (for planar antenna 150mm/6") Reference point of measurement ØE As per flange standard ASME B16.5 / EN1092-1 / JIS B2220 As per flange standard ASME B16.5 / EN1092-1 / JIS B2220...
  • Page 69 Micropilot FMR53, FMR54 Materials: Housing GT18 (stainless steel, corrosion- resistant) A0036037 No. Component part Material Housing CF3M similar to 316L/1.4404 2.1 Electronics compartment cover • Cover: CF3M (similar to 316L/ 1.4404) • Window: glass • Cover seal: NBR • Window seal: NBR •...

  • Page 70: Materials: Gt19 Housing (Plastic)

    Micropilot FMR53, FMR54 Materials: GT19 housing (plastic) A0013788 No. Component part Material Housing 2.1 Electronics compartment cover • Sight glass: PC • Rim: PBT-PC • Cover seal: EPDM • Thread coating: graphite-based lubricant varnish 2.2 Connection compartment cover • Cover: PBT •...

  • Page 71: Materials: Gt20 Housing (Die-Cast Aluminum, Powder- Coated)

    Micropilot FMR53, FMR54 Materials: GT20 housing (die-cast aluminum, powder- coated) A0036037 No. Component part Material Housing, RAL 5012 (blue) • Housing: AlSi10Mg(<0.1% Cu) • Coating: polyester 2.1 Electronics compartment cover, RAL 7035 (gray) • Cover: AlSi10Mg(<0.1% Cu) • Window: glass •...
  • Page 72 Micropilot FMR53, FMR54 No. Component part Material Ground terminal • Screw: A2 • Spring washer: A2 • Clamp: 304 (1.4301) • Bracket: 304 (1.4301) Adhesive nameplate Plastic In the version with the M12 plug, the seal material is Viton (different from standard).
  • Page 73 Micropilot FMR53, FMR54 FMR54 with horn antenna A0018956 Compact version For version with antenna extension High-temperature version Item Component part Material Horn antenna 316L (1.4404) Screw Spring washer (compact) Nordlock washer (XT and HT version) Process separation cone Compact version:...
  • Page 74 Micropilot FMR53, FMR54 FMR54 with planar or drip-off antenna A0018957 Version with horn Version without horn Item Component part Material Sensor adapter 316L (1.4404) Antenna retaining ring 316L (1.4404) Screw Planar antenna PTFE Sealing ring Flange 316L (1.4404/1.4435) Housing adapter 316L (1.4404)

  • Page 75: Materials: Weather Protection Cover

    Micropilot FMR53, FMR54 Materials: Weather protection cover A0015473 Component: Material Protection cover: 316L (1.4404) Rubber molded part (4x): EPDM Tensioning screw: 316L (1.4404) + carbon thread Holder: 316L (1.4404) Ground terminal • Screw: A4 • Spring washer: A4 • Clamp: 316L (1.4404) •...
  • Page 76 Micropilot FMR53, FMR54 Operability Operating concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnostics • Expert level Operating languages • English • Deutsch • Français • Español • Italiano • Nederlands • Portuguesa • Polski • русский язык (Russian) •...
  • Page 77 Micropilot FMR53, FMR54 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in event of device error Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)
  • Page 78 Micropilot FMR53, FMR54 Operation via Bluetooth® Requirements wireless technology A0036790  33 Device with Bluetooth module Electronics housing of the device Bluetooth module This operation option is only available for devices with Bluetooth module. There are the following options: • The device has been ordered with a Bluetooth module: Feature 610 "Accessory Mounted", option NF "Bluetooth"...
  • Page 79 Micropilot FMR53, FMR54 Remote operation Via HART protocol A0036169  35 Options for remote operation via HART protocol PLC (Programmable Logic Controller) Transmitter power supply unit, e.g. RN221N (with communication resistor) Connection for Commubox FXA191, FXA195 and Field Communicator 375, 475 Field Communicator 475 Computer with operating tool (e.g.
  • Page 80 Micropilot FMR53, FMR54 Via FOUNDATION Fieldbus FF-HSE FF-H1 FF-H1 A0017188  37 FOUNDATION Fieldbus system architecture with associated components FFblue Bluetooth modem Field Xpert SFX350/SFX370 DeviceCare/FieldCare NI-FF interface card Industrial network FF-HSE High Speed Ethernet FF-H1 FOUNDATION Fieldbus-H1 Linking Device FF-HSE/FF-H1...
  • Page 81 Micropilot FMR53, FMR54 DeviceCare/FieldCare via service interface (CDI) A0032466  38 DeviceCare/FieldCare via service interface (CDI) Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with DeviceCare/FieldCare operating tool Endress+Hauser...
  • Page 82 Micropilot FMR53, FMR54 Integration in tank gauging The Endress+Hauser Tank Side Monitor NRF81 provides integrated communications for sites with multiple tanks, each with one or more sensors on the tank, such as radar, spot or average system temperature, capacitive probe for water detection and/or pressure sensors. Multiple protocols out of the Tank Side Monitor guarantee connectivity to nearly any of the existing industry standard tank gauging protocols.
  • Page 83 Micropilot FMR53, FMR54 SupplyCare inventory SupplyCare is a web-based operating program for coordinating the flow of material and information along the supply chain. SupplyCare provides a comprehensive overview of the levels of management software geographically distributed tanks and silos, for instance, providing complete transparency over the current inventory situation, regardless of time and location.
  • Page 84 Micropilot FMR53, FMR54 A0034288  40 Example of inventory management platform with SupplyCare Enterprise SCE30B SupplyCare Enterprise (via Web browser) SupplyCare Enterprise installation SupplyCare Enterprise on mobile devices (via Web browser) Ethernet/WLAN/UMTS Fieldgate FXA42 Power supply 24 V DC Modbus TCP via Ethernet as server/client...
  • Page 85 Micropilot FMR53, FMR54 Cloud-based application: SupplyCare Hosting SupplyCare Hosting is offered as a hosting service (software as a service). Here, the software is installed within the Endress+Hauser IT infrastructure and made available to the user in the Endress +Hauser portal. A0034289 ...

  • Page 86: Certificates And Approvals

    CE mark in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous RoHS Substances Directive 2011/65/EU (RoHS 2).

  • Page 87: Marine Approval

    Micropilot FMR53, FMR54 Pressure equipment with Pressure instruments with a flange and threaded boss that do not have a pressurized housing do not fall within the scope of the Pressure Equipment Directive, irrespective of the maximum allowable allowable pressure pressure.
  • Page 88 Micropilot FMR53, FMR54 Feature 100 in the product structure Process connection NPS 2" Cl.150 RF, 316/316L NPS 2" Cl.150, PTFE >316/316L NPS 3" Cl.150 RF, 316/316L NPS 3" Cl.150, PTFE >316/316L NPS 4" Cl.150 RF, 316/316L NPS 4" Cl.150, PTFE >316/316L NPS 6"...

  • Page 89: Hard-Copy Product Documentation

    Micropilot FMR53, FMR54 Test, certificate Feature 580 Designation "Test, certificate" 3.1 Material documentation, wetted metal parts, EN10204-3.1 inspection certificate Conformity to NACE MR0175, wetted metallic parts 3.1 Material certificate, pressurized parts, EN10204-3.1 inspection certificate Conformity to NACE MR0103, wetted metallic parts...
  • Page 90 Micropilot FMR53, FMR54 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 91: Ordering Information

    • Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser...
  • Page 92 Micropilot FMR53, FMR54 3-point linearity protocol The following points must be considered if option F3 (3-point linearity protocol) was selected in feature 550 ("Calibration"). The 3 points of the linearity protocol are defined as follows: A0023274  42 Points of the 3-point linearity protocol; engineering unit: mm (in)
  • Page 93 Micropilot FMR53, FMR54 5-point linearity protocol The following points must be considered if option F4 (5-point linearity protocol) was selected in feature 550 ("Calibration"). The 5 points of the linearity protocol are evenly distributed over the measuring range (0% - 100%).

  • Page 94: Customer-Specific Configuration

    Micropilot FMR53, FMR54 Customer-specific If the option IJ: "Customized parameterization HART", IK "Customized parameterization PA" or IL "Customized parameterization FF" has been selected in feature 570 "Service", presettings that differ configuration from the default settings can be selected for the following parameters:...

  • Page 95: Application Packages

    Micropilot FMR53, FMR54 Application packages Heartbeat Diagnostics Availability Available in all device versions. Function • Continuous self-monitoring of the device. • Diagnostic messages output to • the local display. • an asset management system (e.g. FieldCare/DeviceCare). • an automation system (e.g. PLC).

  • Page 96: Heartbeat Verification

    Micropilot FMR53, FMR54 Heartbeat Verification Availability Available for the following versions of feature 540 "Application package": • EH: Heartbeat Verification + Monitoring • EJ:   Heartbeat Verification Device functionality checked on demand • Verification of the correct functioning of the measuring device within specifications.
  • Page 97 Micropilot FMR53, FMR54 Heartbeat Monitoring Availability Available for the following versions of feature 540 "Application package": EH: Heartbeat Verification + Monitoring Function • In addition to the verification parameters, the corresponding parameter values are also logged. • Existing measured variables, such as the echo amplitude, are used in the Foam detection and Build-up detection wizards.
  • Page 98 Micropilot FMR53, FMR54 Accessories Device-specific accessories Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  43 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").
  • Page 99 • 200 mm (8 in) • 300 mm (12 in) • 400 mm (16 in) Detailed ordering information is available from the following sources: • In the Product Configurator on the Endress+Hauser webpage: www.endress.com • From your Endress+Hauser Sales Center: www.endress.com/worldwide...

  • Page 100: Remote Display Fhx50

    Micropilot FMR53, FMR54 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) •...

  • Page 101: Gas-Tight Feedthrough

    Micropilot FMR53, FMR54 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold impulse voltage: < 800 V •...
  • Page 102 Micropilot FMR53, FMR54 Bluetooth module for HART devices Accessory Description Bluetooth module A0036493 • Quick and easy commissioning via SmartBlue (app) • No additional tools or adapters required • Signal curve via SmartBlue (app) • Encrypted single point-to-point data transmission (tested by Fraunhofer institue) and password protected communication via Bluetooth®...

  • Page 103: Communication-Specific Accessories

    For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C...

  • Page 104: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Brief Operating Instructions...
  • Page 106 *71486057* 71486057 www.addresses.endress.com...
