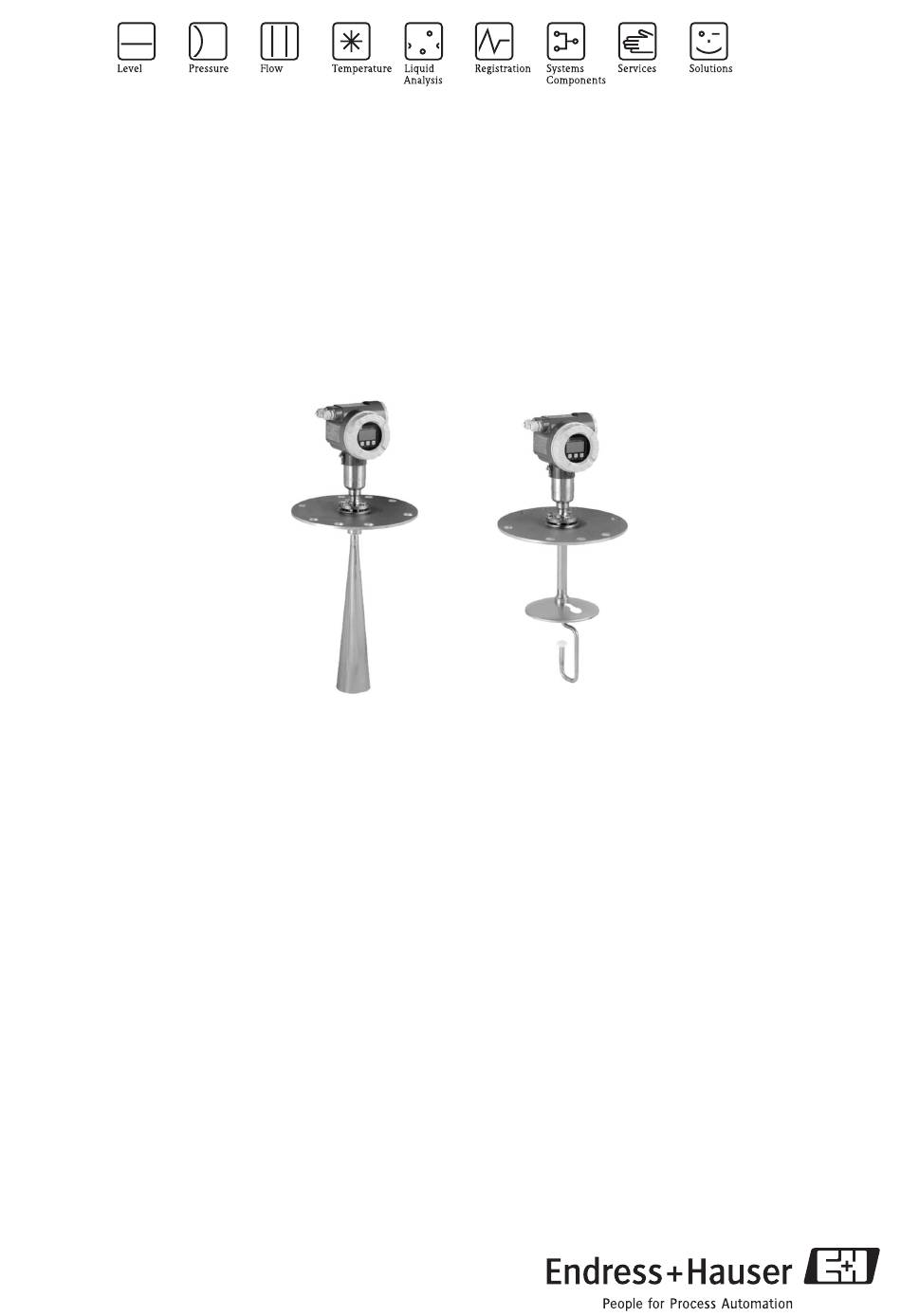

Technical Information
Micropilot S FMR540
Level-Radar
Smart Transmitter for continuous and non-contact precision level
measurement. For custody transfer and inventory control
applications with NMi and PTB approvals.
Application
The Micropilot S is used for highly accurate level
measurement in storage tanks and can be applied in
custody transfer applications. It meets the relevant
requirements according to OIML R85 and API 3.1B.
Typical areas of application are:
• The with parabolic antenna is excellently suited for
free space applications up to 40 m (131 ft).
• The with horn antenna is suitable for free space
applications that disallow the use of a parabolic
antenna due to tank/nozzle geometry.
The FMR540 with DN200 (8") parabolic antenna offers
high beam focussing of 4° and is therefore ideally suited
to applications with nozzles situated close to the tank
wall.
The FMR540 with DN100 (4") horn antenna is designed
for all small nozzles sizes.
TI412F/00/en/11.06
Your benefits
• Better than 1 mm accuracy.
• National approvals (NMi, PTB) for custody transfer.
• Applicable as stand-alone system or tied into tank
gauging systems via the Tank Side Monitor NRF590.
• Cost-effective and simple installation via 4-wire cable
with HART and 24V DC intrinsically safe power
supply.
• low cost, low weight UNIversal flanges
• top target positioners to compensate any flange
inclination
• easy on-site operation via menu-driven alphanumeric
display
• easy commissioning, documentation and diagnostics
via operating software (ToF Tool - Fieldtool Package or
FieldCare)
• HART communication.

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser Micropilot S FMR540

  • Page 1 Technical Information Micropilot S FMR540 Level-Radar Smart Transmitter for continuous and non-contact precision level measurement. For custody transfer and inventory control applications with NMi and PTB approvals. Application Your benefits The Micropilot S is used for highly accurate level • Better than 1 mm accuracy.
  • Page 2: Table Of Contents

    Reference operating conditions ......13 Micropilot S FMR540 ....... . 30 Maximum measured error .
  • Page 3: Function And System Design

    Micropilot S FMR540 Function and system design Measuring principle The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method. It measures the distance from the reference point (process connection) to the product surface. Radar impulses are emitted by an antenna, reflected off the product surface and received again by the radar system.
  • Page 4: Equipment Architecture

    • with a Personal Computer, FXA193 and the operating software "ToF Tool - FieldTool Package" respectively "FieldCare". The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-impulse). It assists with commissioning, securing data, trouble shooting and documentation of the measuring point.
  • Page 5: Custody Transfer Applications

    The number of instruments which can be connected in mutidrop mode can be calculated by the "FieldNetCalc" program. A description of this program can be found in Technical Information TI 400F (Multidrop connector FXN520). The program is available form your Endress+Hauser sales organisation or in the internet at: "www.endress.com É Download" (Text Search = "Fieldnetcalc").
  • Page 6: Integrated In Tank Gauging System

    Micropilot S FMR540 Integrated in tank gauging The Endress+Hauser Tank Side Monitor NRF 590 provides integrated communications for sites with multiple system tanks, each with one or more sensors on the tank, such as radar, spot or average temperature, capacitive probe for water detection and/or pressure sensors.
  • Page 7: Input

    • Installation possibilities (size, location and height of nozzle) • Properties of the product stored in the tank (radar reflectivitiy, vapor pressure, temperature, etc.) • The Micropilot S FMR540 offers 2 radar antennas For stilling well applications, FMR532 should be selected (see TI344F) For measuring mediums with a low reflectivity (i.e.
  • Page 8: Measuring Range

    Micropilot S FMR540 Measuring range The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and possible interference reflections. To achieve an optimised signal strength it is recommended to use an antenna with as large as possible diameter (DN200/8"...
  • Page 9: Measuring Conditions

    Micropilot S FMR540 Measuring conditions • The measuring range begins, where the beam hits the tank bottom. Particularly with dish bottoms or conical outlets the level cannot be detected below this point. • In case of media with a low dielectric constant (groups A and B), the tank bottom can be visible through the medium at low levels (low height C).
  • Page 10: Output

    Micropilot S FMR540 Output Output signal • 4…20 mA with HART protocol (e.g. for multidrop connection to the Tank Side Monitor NRF590): this version can be operated via the PC operating software ToF Tool and FieldCare. The instrument supports both point-to-point and multidrop operation.
  • Page 11: Terminal Assignment 4

    Micropilot S FMR540 Terminal assignment 4…20 The 4-wire cable is connected to the screw terminals (wire diameter 0.5…2.5 mm) in the terminal mA with HART compartment. Use 4-wire twisted pair cable with screen for the connection.Protective circuitry against reverse polarity, RFI, and over-voltage peaks is built into the device (refer to TI241F »basics for EMC-tests«). Refer to TI374F for connection to the Tank Side Monitor NRF590.
  • Page 12: Load Hart

    Max noise HART 500 Hz...10 kHz : U Power supply For stand alone operation recommended via two Endress+Hauser RN221N. mm accuracy For measurements with mm accuracy the measured variable must be transmitted using HART protocol to ensure the necessary resolution.
  • Page 13: Performance Characteristics

    Micropilot S FMR540 Performance characteristics Note Performance characteristics for instruments that can be calibrated for inventory control and custody transfer applications are ccording to weight & measure standards in compliance with OIML R85.General operating / environmental conditions see → ä 19.
  • Page 14: Operating Conditions: Installation

    DN150 (6”) and larger. • Metallic screens (3) mounted at a slope spread the radar signals and can, therefore, reduce interfe- rence echoes. Please contact Endress+Hauser for further informa- tion. L00-FMR54xxx-17-00-00-yy-013 Endress+Hauser...
  • Page 15: Beam Angle

    Micropilot S FMR540 Beam angle The beam angle is defined as the angle a where the energy density of the radar waves reaches half the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.
  • Page 16: Installation On Tank Fmr540

    • The horn antenna should protrude from the nozzle. If necessary, choose version with antenna extension (→ ä 21). Note! Please contact Endress+Hauser for application with higher nozzle. • The horn antenna should be installed with 1 degree inclination towards the tank center.
  • Page 17 Micropilot S FMR540 Standard installation FMR540 with parabolic antenna • Observe installation instructions on → ä 14. • Marker is aligned towards tank wall. • The marker is always exactly in the middle between two bolt-holes in the flange. • After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment.
  • Page 18: Fmr540 With Top Target Positioner

    Micropilot S FMR540 FMR540 with top target Optimum mounting position positioner Micropilot S should be installed vertically towards the Liquid surface for best measuring performance of ±1 mm. Using top target positioner it is possible to tilt the antenna axis by up to 15° in all directions. The top target positioner is used for the optimum alignment of the radar beam to the liquid surface.
  • Page 19: Operating Conditions: Environment

    FKM Viton GLT, -40 °C...+200 °C (-40 °F...+392 °F) Process pressure limits • Parabolic Antenna -1...6 bar (-14.5...87 psi) • Horn Antenna -1...16 bar (-14.5 psi...232 psi) • With Endress+Hauser UNI flange -1...1bar (-14.5 psi...14.5 psi) Antenna core • Parabolic Antenna: Teflon (PTFE) • Horn Antenna: PEEK Wetted parts •...
  • Page 20: Mechanical Construction

    Micropilot S FMR540 Mechanical construction Design, dimensions Housing dimensions Dimensions for process connection and type of antenna → ä 21. max. 100 ENDRESS+HAUSER (Aluminium) L00-T-FMR54-06-00-00-en-002 Endress+Hauser...
  • Page 21 Micropilot S FMR540 Micropilot S FMR540 - process connection, type of antenna Housing dimensions → ä 20. T12 housing Flange DN100…150 Endress+Hauser UNI flange Top Taget Positioner or equivalent DN 150 (Sensor Alignment) with Endress+Hauser UNI flange DN 150*/200/250 DN 200 DN 250 Ø...
  • Page 22: Type Plate / Type Plate For Custody Transfer Applications

    Micropilot S FMR540 Type plate / type plate for In addition to the standard type plate, the instrument features a type plate for custody transfer applications with custody transfer applications the following statements: • manufacturer • instrument type • label for custody transfer approval PTB :„Z“...
  • Page 23: Endress+Hauser Uni Flange

    Micropilot S FMR540 Endress+Hauser UNI flange Installation hints The number of bolts has sometimes been reduced. The bolt-holes have been enlarged for adaption of dimensions, therefore, the flange needs to be properly aligned to the counterflange before the bolts are tightened.
  • Page 24: Weight

    Micropilot S FMR540 Top target positioner (Sensor alignment) with Endress+Hauser UNI flange clamping screw 3 x M8 shifty at 120° Ø 85 Endress+Hauser UNI flange Viton seal DN200/DN250 L00-FMR540xx-06-00-00-en-003 Please, also see sensor alignment tool → ä 32. Weight Micropilot S...
  • Page 25: Human Interface

    Remote commissioning, including documentation of the measuring point and in-depth analysis functions, is supported via the ToF Tool, the graphical operating software for Endress+Hauser time-of-flight systems. Access to the electronics can be prevented by means of a custody locking switch that locks the device settings.
  • Page 26: Operating Elements

    Micropilot S FMR540 Light emitting diods (LEDs): There is a green and a red LED besides the Liquid Crystal Display. Meaning red LED continuously on Alarm red LED flashes Warning red LED off No alarm green LED continuously on Operation...
  • Page 27: On-Site Configuration

    Micropilot S FMR540 On-site configuration Operation with VU331 The LC-Display VU331 allows configuration via 3 keys directly at the instrument. All device functions can be set through a menu system. The menu consists of function groups and functions. Within a function, application parameters can be read or adjusted.
  • Page 28: Remote Configuration

    The Micropilot S can be remotely operated via HART. On-site adjustments are also possible. Operation with ToF Tool The ToF Tool is a graphical operation software for instruments from Endress+Hauser that operate based on the time-of-flight principle. It is used to support commissioning, securing of data, signal analysis and documentation of the instruments.
  • Page 29: Certificates And Approvals

    Micropilot S FMR540 Operation with FieldCare FieldCare is Endress+Hauser's FDT based Plant Asset Management Tool. It can configure all intelligent field devices in your plant and supports you in managing them. By using status information, it also provides a simple but effective means of checking their health.
  • Page 30: Ordering Information

    Micropilot S FMR540 Ordering information Micropilot S FMR540 This overview does not mark options which are mutually exclusive. Approval: Baisc weight Non-hazardous area ATEX II 1/2G EEx ia IIC T6 *ATEX II 1/2G EEx ia IIC T6, WHG (in preparation) *ATEX II 3G EEx nA II T6 (in preparation) 6.0 Kg...
  • Page 31: Ordering Structure (Continued)

    Micropilot S FMR540 Ordering structure Output; Operation: (continued) A 4-20mA HART; 4-line display VU331, envelope curve display on site Special version Housing: C T12 Alu, coated IP68 NEMA6P, separate connection compartment Special version Cable entry: Thread M20 Gland M20 Thread G1/2...
  • Page 32: Accessories

    Micropilot S FMR540 Accessories Weather protection cover A Weather protection cover made of stainless steel is recommended for outdoor mounting (order code: 543199-0001). The shipment includes the protective cover and tension clamp. F12 / F23 / T12 housing M IC...
  • Page 33: Commubox Fxa291

    Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: • Cerabar S PMC71, PMP7x • Deltabar S PMD7x, FMD7x •...
  • Page 34: Documentation

    Micropilot S FMR540 Documentation Fields of activities Level Measurement Limit detection and continuous level measurement in liquids and bulk solids, FA001/F/00/en. Technical Information Fieldgate FXA320, FXA520 Technical Information for Fieldgate FXA320/520, TI369F/00/en. Tank Side Monitor NRF590 Technical Information for Tank Side Monitor NRF590, TI374F/00/en.
  • Page 35: Patents

    Micropilot S FMR540 Patents This product may be protected by at least one of the following patents. Further patents are pending. • US 5,387,918 i EP 0 535 196 • US 5,689,265 i EP 0 626 063 • US 5,659,321 •...
  • Page 36 International Head Quarter Endress+Hauser GmbH+Co. KG Instruments International Colmarer Str. 6 79576 Weil am Rhein Deutschland Tel. +49 76 21 9 75 02 Fax +49 76 21 9 75 34 5 www.endress.com info@ii.endress.com TI412F/00/en/11.06 FM+SGML 6.0 ProMoDo...
