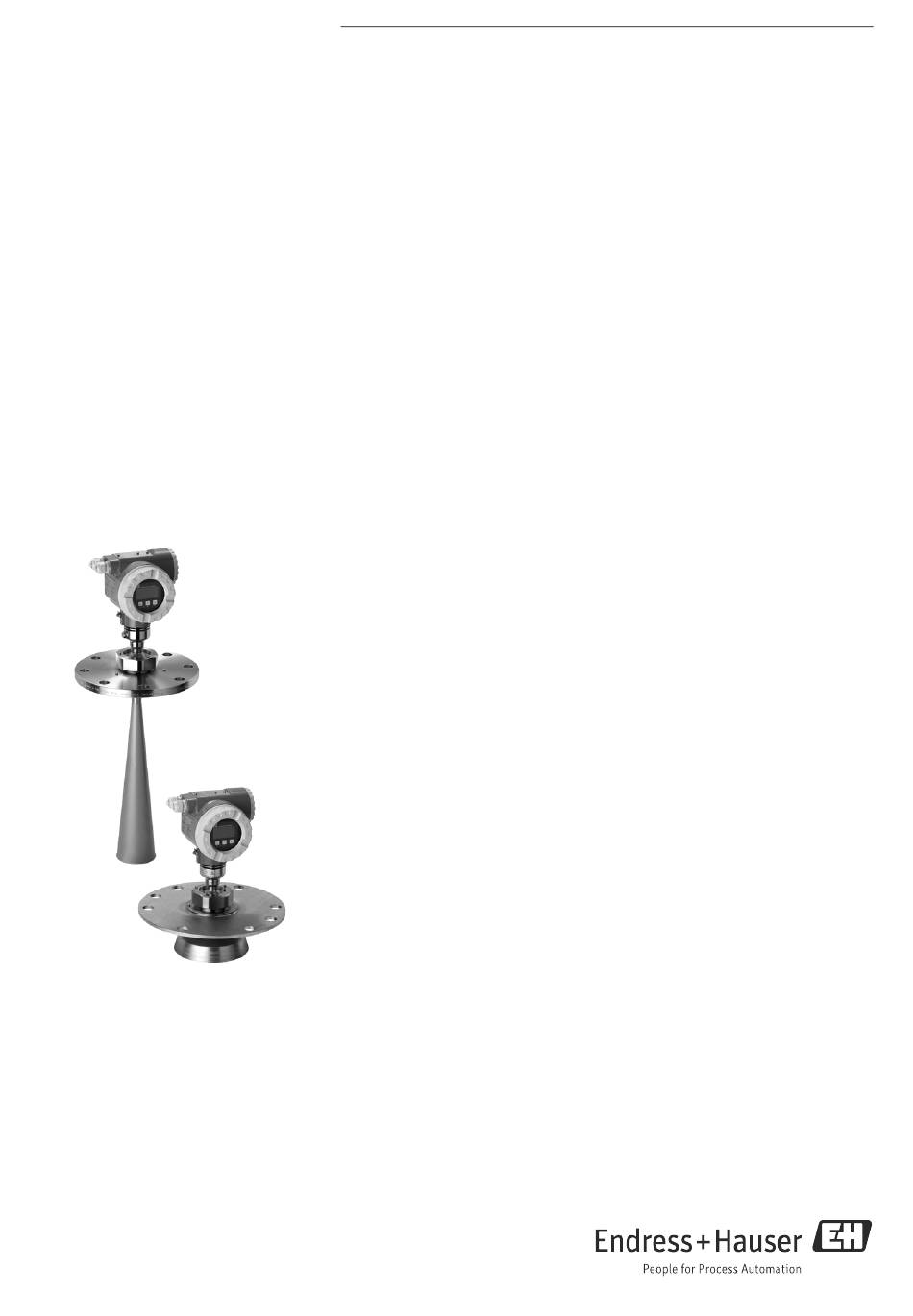

TI00412F/00/EN/14.13
71229234
Products
Technical Information

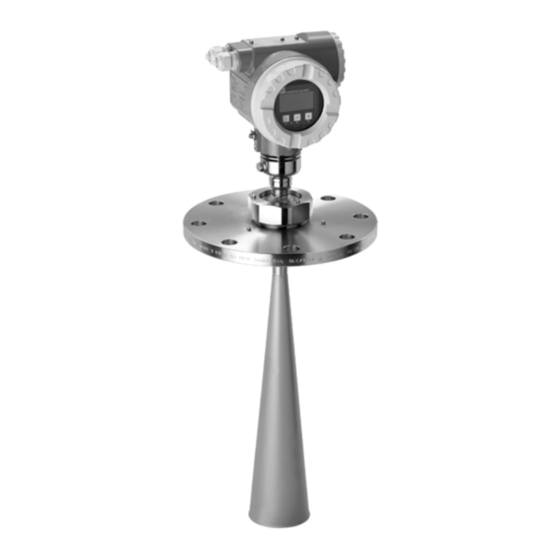

Micropilot S FMR540
Level-Radar
Level transmitter for continuous and non-contact
precision level measurement
For custody transfer and inventory control
applications with NMi- and PTB-approvals.
Application
The Micropilot S is used for highly accurate level measurement in storage tanks and
can be applied in custody transfer applications. It meets the relevant requirements
according to OIML R85 and API 3.1B.
Typical areas of application are:
• The Micropilot S with parabolic antenna is excellently suited for free space
applications up to 40 m (131 ft).
• The Micropilot S with horn antenna is suitable for free space applications that
disallow the use of a parabolic antenna due to tank/nozzle geometry.
The FMR540 with a DN200 (8") or DN250 (10") parabolic antenna offers high beam
focussing of 4.4° or 3.3° respectively, and is therefore ideally suited to applications with
nozzles situated close to the tank wall. The FMR540 with DN100 (4") horn antenna is
designed for all small nozzles sizes.
Your benefits
• Accuracy: better than 1 mm (0.04 in).
• National approvals (NMi, PTB) for custody transfer.
• Easy integration into tank gauging systems via the Tank Side Monitor NRF590.
• Low-cost, easy installation via 4-wire cable with HART and 24 V DC (intrinsically
safe).
• Low cost, low weight universal flanges.
• Alignment device to compensate any flange inclination.
• Easy on-site operation via menu-driven alphanumeric display.
• Easy commissioning, documentation and maintenance/diagnostics via operating
software (FieldCare).
• HART communication.
Solutions
Services

Advertisement

loading

Related Manuals for Endress+Hauser Micropilot S FMR540

Summary of Contents for Endress+Hauser Micropilot S FMR540

  • Page 1 TI00412F/00/EN/14.13 Products Solutions Services 71229234 Technical Information Micropilot S FMR540 Level-Radar Level transmitter for continuous and non-contact precision level measurement For custody transfer and inventory control applications with NMi- and PTB-approvals. Application The Micropilot S is used for highly accurate level measurement in storage tanks and can be applied in custody transfer applications.

  • Page 2: Performance Characteristics

    Micropilot S FMR540 Performance characteristics For accuracy data for devices suitable for custody transfer measurement in accordance with OIML R85, see Ambient temperature range. o ä 22. Reference operating According to OIML R85: conditions • Temperature = -25 °C to +55 °C (-13 °F to +131 °F) •...
  • Page 3 Micropilot S FMR540 Inventory control versions All device versions can be delivered as "Inventory Control" versions with reduced accuracy (3 mm [0.12 in]) under reference conditions. No calibration certificate or type approval is supplied with these versions. The "Inventory Control" versions are selected by specifying Version "R - Not selected; Inventory control version"...

  • Page 4: Installation

    ("Installation on tank", o ä 17). If condensation occurs, try using the parabolic antenna, or contact your Endress+Hauser sales center. The parabolic antenna offers the smallest beam angle (3.3 deg) for free space applications. It also offers the longest possible measuring distance of 40 m (131 ft) (dielectric constant >...
  • Page 5 Micropilot S FMR540 Optimisation options • Antenna size: the bigger the antenna, the smaller the beam angle, the less interference echoes. • Mapping: the measurement can be optimized by means of electronic suppression of interference echoes. • Antenna alignment: "Optimum mounting position", o ä 17.
  • Page 6 If necessary, choose version with antenna extension (o ä 23). For applications with higher nozzles, please øD contact your Endress+Hauser sales center. • The horn antenna should be installed with 3° inclination towards the tank center. To avoid A0020809...
  • Page 7 FMR540 with optional alignment device can be swiveled by 15° in all directions. For more information, please see Operating Instructions KA00274F/00/EN. If you have any questions regarding commissioning, please contact your Endress+Hauser sales center. øD...
  • Page 8 Micropilot S FMR540 Alignment device Optimum mounting position The Micropilot S should be installed at right angles to the surface of the medium for optimum measuring performance of ±1 mm (0.04 in). Using the alignment device it is possible to tilt the antenna axis by up to 15°...
  • Page 9 Micropilot S FMR540 The beam angle is defined as the angle D where the energy density of the radar waves reaches half the Beam angle value of the maximum energy density (3dB-width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations. The beam diameter W is a function of antenna type (beam angle D) and distance D.
  • Page 10 Micropilot S FMR540 Integrated air purge In some applications, the integrated purge air connection connection can prevent clogging of the antenna. • Permanent operation: recommended pressure range for purge air: 1.2 to 1.5 bar (18 to 22.5 psi) abs. • Pulsed operation: max.
  • Page 11 • Parabolic antenna -1 to 16 bar (-15 to 240 psi) • Horn antenna -1 to 16 bar (-15 to 240 psi) • With Endress+Hauser UNI flange -1 to 1 bar (-15 to 15 psi) Alignment device ± 15° inclination seal: FKM Viton GLT...

  • Page 12: Certificates And Approvals

    Micropilot S FMR540 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the device passing the required tests by attaching the CE-mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".
