Endress+Hauser Cerabar S PMC71 Installation Instructions Manual
Hide thumbs
Also See for Cerabar S PMC71:
- Operating instructions manual (238 pages) ,
- Technical information (136 pages) ,
- Manual (96 pages)
Table of Contents
Advertisement
Available languages
Available languages
Quick Links
EA01210P/00/A2/01.17
71366315
*71366315*
71366315
Overview
The manual applies to the following spare parts sets:
Order number
52024111
52024400
71026358
71026359
71071824
71071825
71071826
71071827
71196092
71196093
71214057
71214064
71214066
71214069
71214890
71214892
71224775
71224776
71263933
71263934
71327714
71365258
71365259
We recommend that the Installation Instructions are kept with the packaging at all times.
Products
Installation Instructions
Electronics
Cerabar S PMC71, PMP71, PMP75
Deltabar S FMD77, FMD78, PMD75
Deltapilot S FMB70
Original spare part set
Electronics HART Ex, ext. p. b., v2.0
Electronics HART Ex, V2.0
Electronics HART Ex, V2.10
Electronics HART Ex, ext. p. b., v2.10
Electronics PA, HW02.00, SW4.0
Electronics PA, ext. p.b., HW02.00,SW4.0
Electronics FF, HW2.00, SW3.00
Electronics FF, ext. p.b., HW2.00, SW3.00
Electronics HART Ex, V2.11
Electronics HART Ex, ext. p. b., V2.11
Electronics PA, Ex, HW2.00, SW3.00
Electronics PA, ext. p.b., HW2.00, SW3.00
Electronics FF, ext. p.b., HW2.00, SW2.00
Electronics FF, HW2.00, SW2.00
Electronics FF, ext. p.b., HW2.00, SW4.00
Electronics FF, HW2.00, SW4.00
Electronics PA, HW02.00, SW4.01
Electronics PA, ext.p. b., HW02.00,SW4.01
Electronics HART Ex, V2.20
Electronics HART Ex, ext. p. b., V2.20
Electronics 1-5 VDC Low Power
Electronics dp_m_g HART Ex, ext. p. b., V2.20
Electronics dp_m_g HART Ex, V2.20
Solutions
Use
Cerabar S PMC71, PMP71, PMP75
Deltabar S PMD75, FMD77, FMD78
Cerabar S PMC71, PMP71, PMP75
Deltabar S PMD75, FMD77, FMD78
Deltapilot S FMB70
Cerabar S PMC71, PMP71, PMP75
Deltabar S PMD75, FMD77
Cerabar S PMC71, PMP71, PMP75
Deltabar S PMD75, FMD77, FMD78
Deltapilot S FMB70
Cerabar S PMC71, PMP71, PMP75
Deltabar S PMD75, FMD77, FMD78
Cerabar S PMC71, PMP71, PMP75
Deltabar S PMD75, FMD77, FMD78
Deltapilot S FMB70
Deltabar S PMD75
Deltabar S PMD75
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Cerabar S PMC71
Summary of Contents for Endress+Hauser Cerabar S PMC71

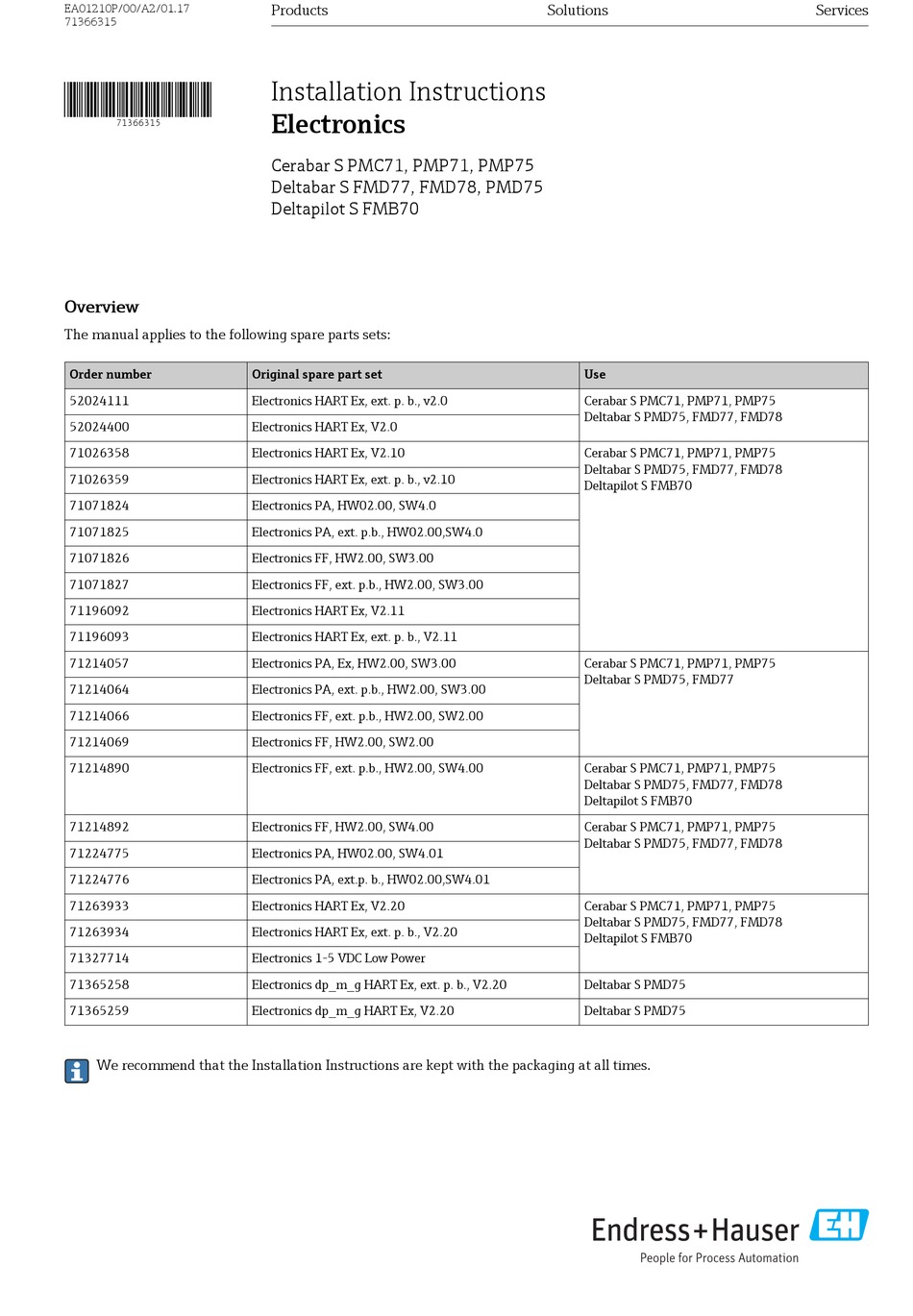

- Page 1 Solutions Services EA01210P/00/A2/01.17 71366315 Installation Instructions *71366315* Electronics 71366315 Cerabar S PMC71, PMP71, PMP75 Deltabar S FMD77, FMD78, PMD75 Deltapilot S FMB70 Overview The manual applies to the following spare parts sets: Order number Original spare part set 52024111 Electronics HART Ex, ext. p. b., v2.0...
-
