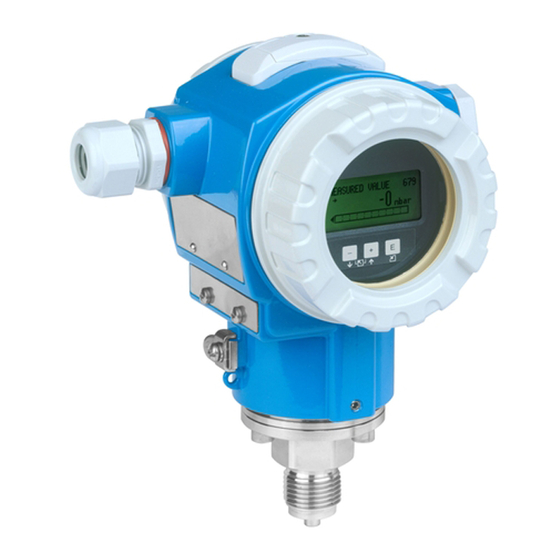

Operating Instructions – Description of Instrument Functions
Cerabar S
PMC71, PMP71/75
Deltabar S FMD77, FMD78, PMD75
Deltapilot S FMB70
Process pressure / Differential pressure, Flow / Hydrostatic
BA00296P/00/EN/15.14
71270404
valid from Software version:
04.01.zz

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Cerabar S PMC71

Summary of Contents for Endress+Hauser Cerabar S PMC71

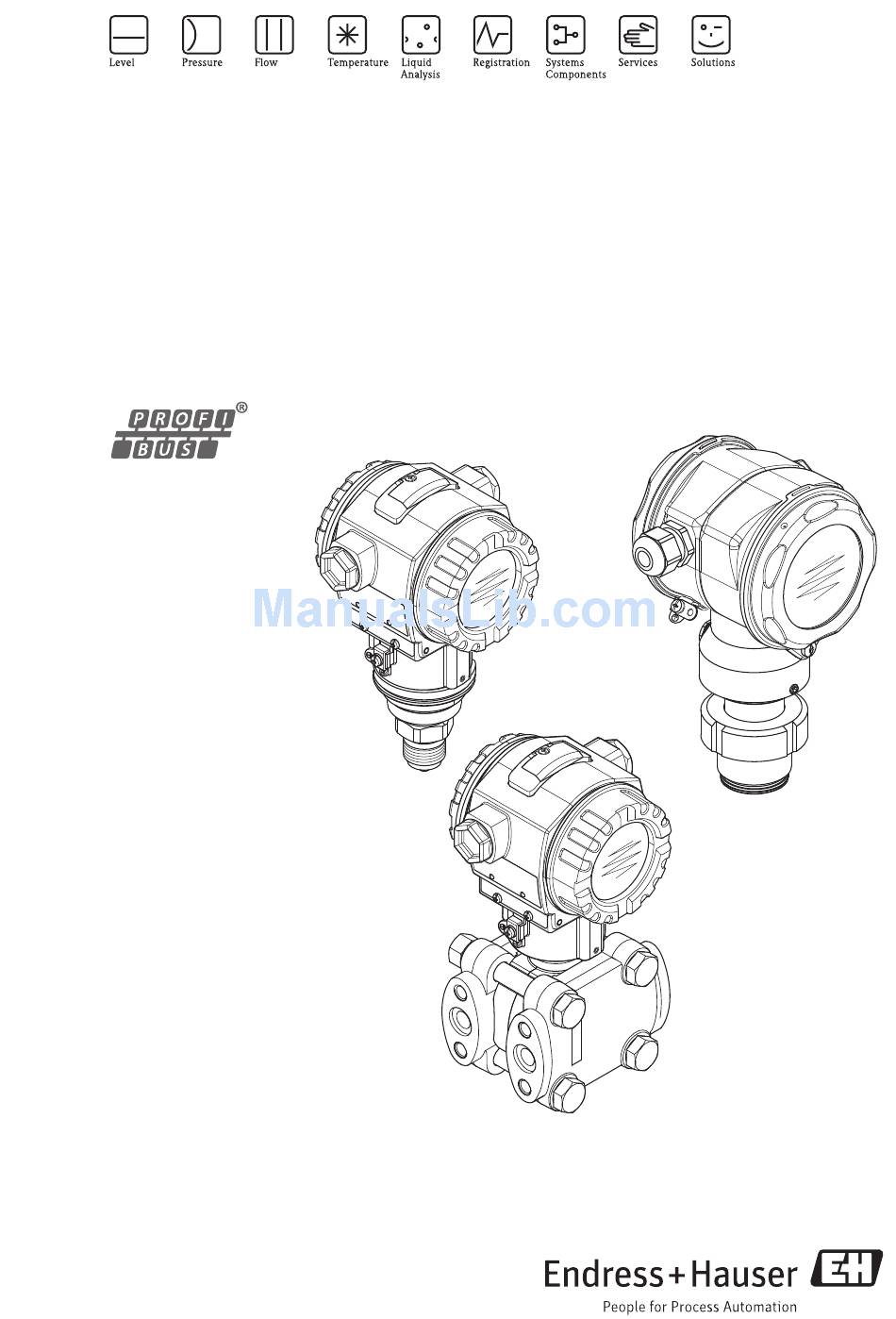

  • Page 1 Operating Instructions – Description of Instrument Functions Cerabar S PMC71, PMP71/75 Deltabar S FMD77, FMD78, PMD75 Deltapilot S FMB70 Process pressure / Differential pressure, Flow / Hydrostatic BA00296P/00/EN/15.14 71270404 valid from Software version: 04.01.zz...

  • Page 2: Endress+Hauser

    Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Confirming messages ..... . 158 Index ......159 Endress+Hauser...

  • Page 4: Notes On Use

    In Section 7, all the parameters of a function group are compiled in a table. Finding parameter description using parameter names (index) The index lists all the parameters in alphabetical order. The page reference/link takes you to the parameter in question. Endress+Hauser...

  • Page 5: Finding Parameter Description Using

    53, 56, 60, 65 or 89 TEMP. ENG. UNIT – "Pressure" measuring mode TEMP. ENG. UNIT – "Level" measuring mode TEMP. ENG. UNIT – "Flow" measuring mode CALIB. OFFSET SET.L.FL.CUT-OFF FACT.U.U.TOTAL.1 FACT. U. U. TOTAL. 2 RESET TOTALISER 1 Endress+Hauser...
  • Page 6 MIN. MEAS. TEMP. SIM. ERROR NO. ALARM DISPL. TIME PROC.CONN.TYPE PRESS.SENS LOLIM PRESS.SENS HILIM SENSOR H/WARE REV. PCB COUNT:T > Tmax PCB MAX. TEMP. PCB COUNT:T < Tmin PCB MIN. TEMP. ACK. ALARM MEASURING TABLE (display) EDITOR TABLE, LINE-NUMB (enter values) Endress+Hauser...
  • Page 7 MASS UNIT – "Height Linearized" level type EMPTY PRESSURE – "Linear" level type EMPTY PRESSURE – "Height Linearized" level type FULL PRESSURE – "Linear" level type FULL PRESSURE – "Height Linearized" level type LEVEL MAX. TANK CONTENT MAX. SIM. LEVEL Endress+Hauser...
  • Page 8 ZERO POSITION – "Height Linearized" level type TANK DESCRIPTION HistoROM AVAIL. HistoROM CONTROL TANK VOLUME TANK HEIGHT IDENT NUMBER SEL SET UNIT TO BUS AI OUT VALUE AI OUT STATUS 2ND CYCLIC VALUE SEL. DISPLAY VAL. PA INPUT VALUE BUS ADDRESS COND.STATUS DIAG Endress+Hauser...

  • Page 9: Graphic Representation Of Function Groups

     113  PROCESS VALUES flow *  114  PEAK HOLD INDICATOR  115  OPERATING  118  SIMULATION MODE  119  DIAGNOSTICS  MESSAGES  120  USER LIMITS  122 Only visible in FieldCare. Endress+Hauser...
  • Page 10 PROFILE VIEW  PB PARAMETER  125  TRANSDUCER BLOCK  TB STANDARD PARAMETER  134  TB PARAMETER  135  ANALOG INPUT BLOCK  AI STANDARD PARAMETER  136  AI PARAMETER  137 Only visible in FieldCare. Endress+Hauser...

  • Page 11: Pressure Measurement

    Page 107, parameter description for SET UNIT TO BUS. Result: The device is ready for pressure measurement. Note! • You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT (Page 53). Endress+Hauser...

  • Page 12: Level Measurement

    % must not be in direct proportion to the measured pressure. A linearization table must be entered for the 2nd measured variable. The 2nd measured variable is assigned to the 1st measured variable by means of this table. Endress+Hauser...

  • Page 13: Level Easy Pressure" Level Selection

    Calibration with reference pressure – using the LEVEL SELECTION parameter. wet calibration Onsite display: Menu path: GROUP SELECTION  MEASURING See Table, step 9. MODE "Level"  LEVEL SELECTION See Table, step 10. FieldCare: Menu path: MEASURING MODE "Level" LEVEL SELECTION Endress+Hauser...

  • Page 14: Endress+Hauser

    For operation using the onsite display, the parameters EMPTY CALIB. ( Page 58) and FULL  CALIB. ( Page 58) also show the respective pressure present at the device. For operation using the FieldCare, the pressure present at the device is displayed in the PROCESS VALUES group. Endress+Hauser...

  • Page 15: Endress+Hauser

    Calibration without reference pressure – SELECTION dry calibration Onsite display: See Table, step 10. Select BASIC SETUP function group. Menu path: See Table, step 11. GROUP SELECTION  OPERATING MENU  See Table, step 12. SETTINGS BASIC SETUP See Table, step 13. Endress+Hauser...

  • Page 16: Endress+Hauser

    Result: The measuring range is set for 0 to 1000 l (264 US gal). Note! For this level mode, the measured variables %, level, volume and mass are available.  See also parameter description for OUTPUT UNIT, Page 57. Endress+Hauser...

  • Page 17: Level Easy Height" Level Selection

    = 1 kg Menu path: GROUP SELECTION  MEASURING MODE FieldCare: Menu path: MEASURING MODE P01-PMC71xxx-19-xx-xx-xx-009 Fig. 5: Calibration with reference pressure – wet calibration See Table, steps 10 and 11. See Table, step 12. See Table, step 13. Endress+Hauser...
  • Page 18 Result: The measuring range is set for 0 to 1000 l (264 US gal). Note! For this level mode, the measured variables %, level, volume and mass are available.  See also parameter description for OUTPUT UNIT, Page 61. Endress+Hauser...
  • Page 19 Calibration without reference pressure – SELECTION dry calibration Onsite display: See Table, step 11. Select BASIC SETUP function group. Menu path: See Table, steps 13 and 14. GROUP SELECTION  OPERATING MENU  See Table, steps 15 and 16. SETTINGS BASIC SETUP Endress+Hauser...
  • Page 20 See Table, step 11. US gal). See Table, step 12. See Table, step 13. Note! For this level mode, the measured variables %, level, volume and mass are available.  See also parameter description for OUTPUT UNIT, Page 61. Endress+Hauser...

  • Page 21: Level Standard" Level Selection, "Linear" Level Type

    If necessary, select "Level Standard" level mode using the Fig. 9: Calibration with reference pressure – LEVEL SELECTION parameter. wet calibration Onsite display: Menu path: GROUP SELECTION  MEASURING See Table, step 11. See Table, step 12. MODE FieldCare: Menu path: MEASURING MODE Endress+Hauser...
  • Page 22 For this level type, the measured variables %, level, volume and mass are available.  See Page 67 ff. The EMPTY PRESSURE ( Page 70) and FULL PRESSURE ( Page 71) parameters display the pressure values belonging to the EMPTY CALIB. and FULL CALIB. parameters. Endress+Hauser...
  • Page 23 FieldCare: Menu path: MEASURING MODE ➃ ➀ –0.5 m r = 1 kg P01-PMP75xxx-19-xx-xx-xx-003 Fig. 10: Calibration without reference pressure – dry calibration See Table, step 9. See Table, step 10. See Table, step 11. See Table, step 12. Endress+Hauser...
  • Page 24 For this level type, the measured variables %, level, volume and mass are available.  See Page 67 ff. You can also specify customer-specific units. See parameter description for PRESS. ENG. UNIT (Page 64), HEIGHT UNIT ( Page 67), UNIT VOLUME (Page 68) and MASS UNIT ( Page 69). Endress+Hauser...

  • Page 25: Level Standard" Level Selection, "Pressure Linearized" Level Type

    Deltabar S: Before you configure the device for your application, the pressure piping must be cleaned and [m ] filled with medium. See Operating Instructions BA00294P, Section 6.6.1. Carry out position adjustment if necessary. See Page 46, Table 6: POSITION ADJUSTMENT [mbar] P01-PMP75xxx-19-xx-xx-xx-002 Endress+Hauser...
  • Page 26 Specify the maximum tank contents to be expected, here 3.5 m for example. See also the following note, point 4. Onsite display: Select the "Editor table" option by means of the TABLE SELECTION parameter. Select the "Semiautomatic" option by means of the LIN. EDIT MODE parameter. Endress+Hauser...
  • Page 27 Y-VALUE of the linearization table is greater than the value entered for TANK CONTENT MAX. The message disappears as soon as no Y-VALUE is greater than the value for TANK CONTENT MAX. and the table entered is active. Endress+Hauser...
  • Page 28 – Page 96, Table 18: LINEARIZATION – Onsite display – Page 99, Table 19: LINEARIZATION – FieldCare • For a description of further relevant parameters, see – Page 93, Table 16: EXTENDED SETUP – Page 113, Table 28: PROCESS VALUES. Endress+Hauser...
  • Page 29 Page 107, parameter description for SET UNIT TO BUS. Result: The linearization table has been entered and the device is ready for level measurement. Note! For this level type, the measured variables %, volume and mass are available. See Page 75 ff. Endress+Hauser...
  • Page 30 It could be the case that the 2nd value, and thus the highest X-VAL. of the linearization table, is smaller than the minimum span permitted ( MINIMUM SPAN, Page 111). The message disappears as soon as the highest X-VALUE is greater than the minimum span and the table entered is active. Endress+Hauser...

  • Page 31: Level Standard" Level Selection, "Height Linearized" Level Type

    Table 6: POSITION ADJUSTMENT ➀ ➂ Perform calibration for the 1st measured variable: If necessary, select the "Level" measuring mode via the MEASURING MODE parameter. Onsite display: Menu path: GROUP SELECTION MEASURING P01-PMP75xxx-19-xx-xx-xx-004 MODE FieldCare: Menu path: MEASURING MODE Endress+Hauser...

  • Page 32: Endress+Hauser

    The calibration for the 1st measured variable is carried out. Perform linearization (calibration for the 2nd measured variable) Change the function group. Onsite display: Menu path: GROUP SELECTION  OPERATING MENU  SETTINGS  LINEARIZATION FieldCare: Menu path: MANUFACTURER VIEW OPERATING MENU  SETTINGS LINEARIZATION Endress+Hauser...

  • Page 33: Endress+Hauser

    "%-height + %", "%-height + volume" and "%-height + mass" are available. See Page 76 ff. You can also specify customer-specific units. See parameter description for PRESS. ENG. UNIT (Page 64), HEIGHT UNIT ( Page 80), UNIT VOLUME (Page 81) and MASS UNIT ( Page 82). Endress+Hauser...

  • Page 34: Endress+Hauser

    X-VALUE is greater than the maximum level and the table entered is active. You can use the MENU DESCRIPTOR parameter (Page 105) to specify which measured value should be displayed on the onsite display. Endress+Hauser...

  • Page 35: Endress+Hauser

    Enter the density of the fluid using the ADJUST DENSITY parameter, here 1.0 kg/dm for example. If necessary, enter a level offset via the ZERO POSITION parameter, here 0 m for example. P01-PMP75xxx-19-xx-xx-xx-005 Result: The calibration for the 1st measured variable is carried out. Endress+Hauser...

  • Page 36: Endress+Hauser

    (here the height). See also the following note, point 3. Note! For this level type, the measured variables "height + %", "height + volume", "height + mass", "%-height + %", "%-height + volume" and "%-height + mass" are available. See Page 76 ff. Endress+Hauser...

  • Page 37: Endress+Hauser

    You can also specify customer-specific units. See parameter description for PRESS. ENG. UNIT (Page 64), HEIGHT UNIT ( Page 80), UNIT VOLUME (Page 81) and MASS UNIT ( Page 82). You can use the MENU DESCRIPTOR parameter (Page 105) to specify which measured value should be displayed on the onsite display. Endress+Hauser...

  • Page 38: Flow Measurement

    [mbar] FieldCare: Menu path: MEASURING MODE P01-xMD7xxx-05-xx-xx-xx-010 Fig. 16: Flow measurement calibration Onsite display: See Table, step 7. Select BASIC SETUP function group. Menu path: GROUP SELECTION  OPERATING MENU  See Table, step 8. SETTINGS  BASIC SETUP Endress+Hauser...

  • Page 39: Endress+Hauser

    NORM FLOW UNIT (Page 90), STD. FLOW UNIT (Page 91) and MASS FLOW UNIT (Page 91). In the lower measuring range, small flow quantities (creepages) can lead to large measured value fluctuations. You can activate low flow cut-off via the LOW FLOW CUT-OFF parameter ( Page 95). Endress+Hauser...

  • Page 40: Totalizers

    • You can use the MENU DESCRIPTOR parameter (Page 105) to specify which measured value should be displayed on the onsite display. • Use the SEL_3RD_CYCL_VAL parameter ( Page 126) to specify which Totalizer is transmitted via the bus as the third cyclic value. Endress+Hauser...

  • Page 41: Description Of Parameters

    • In FieldCare, the LANGUAGE parameter is arranged in the DISPLAY function group. • Select the menu language for FieldCare by means of the "Language Button" in the configuration window. Select the menu language for the FieldCare frame via the "Extra" menu  "Options"  "Display"  "Language". Factory setting: English Endress+Hauser...

  • Page 42: Measuring Mode

    • When the measuring mode is changed, no conversion takes place. The device has to be recalibrated if the measuring mode is changed. Options: • Pressure • Level • Deltabar S: Flow Factory setting: • Cerabar S and Deltabar S: Pressure • Deltapilot S: Level Endress+Hauser...

  • Page 43: Level Selection

    Level Easy Pressure  For LEVEL SELECTION = "Level Easy Pressure" see Page 55, Table 8.  For LEVEL SELECTION = "Level Easy Height" see Page 59, Table 9.  For LEVEL SELECTION = "Level standard" see Page 64, Table 10. Endress+Hauser...

  • Page 44: Endress+Hauser

    The CALIB. OFFSET parameter displays the resulting pressure difference (offset) by which the MEASURED VALUE was corrected. Prerequisite: • This parameter is displayed for Deltabar S, Cerabar S with gauge pressure sensor or Deltapilot S. Options: • Abort • Confirm Factory setting: Abort Endress+Hauser...

  • Page 45: Endress+Hauser

    OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...

  • Page 46: Endress+Hauser

    – Page 96 ff, Table 18 and 19: LINEARIZATION – Page 113 ff, Table 28: PROCESS VALUES – Page 12 ff, Section 5 "Level measurement". LEVEL SELECTION (020) Select level mode.  Parameter description, see Page 43. Selection Factory setting: Slot: 2 Level Easy Pressure Index: 248 Endress+Hauser...

  • Page 47: Endress+Hauser

    "+"- or "–" key before confirming with the "E" key. This applies also if the level value is to remain unchanged. Factory setting: Endress+Hauser...

  • Page 48: Endress+Hauser

    OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...

  • Page 49: Endress+Hauser

    MAX. FLOW (311) Enter maximum flow of primary device. Entry See also layout sheet of primary device. The maximum flow is assigned to the maximum pressure which you enter via MAX PRESS. FLOW. Slot: 2 Factory setting: Index: 80 1.0 m Endress+Hauser...

  • Page 50: Endress+Hauser

    MANUFACTURER VIEW PROFILE VIEW OPERATING MENU SETTINGS DISPLAY POSITION ADJUSTMENT BASIC SETUP EXTENDED SETUP POS. ZERO ADJUST POS. INPUT VALUE 1) Display via on-site display only CALIB. OFFSET 2) Display via digital communication P01-xMx7xxxx-19-xx-xx-xx-003 Fig. 22: POSITION ADJUSTMENT function group Endress+Hauser...

  • Page 51: Calib. Offset

    To correct the MEASURED VALUE to 0.0 mbar, you must enter the value 2.2 here. (MEASURED VALUE = MEASURED VALUE – CALIB. OFFSET) – MEASURED VALUE (after entry for calib. offset) = 0.0 mbar Factory setting: Endress+Hauser...

  • Page 52: Basic Setup Pressure

    Prerequisite: • MEASURING MODE = Pressure Note: See also – Page 44, Table 3: QUICK SETUP – Page 93, Table 15: EXTENDED SETUP – Page 112 ff, Table 27: PROCESS VALUES – Page 11 ff, Section 4 "Pressure measurement". Endress+Hauser...
  • Page 53 – You want the measured value to be displayed in "PU" (PU: packing unit). – MEASURED VALUE =10000 Pa i 1 PU – Entry CUSTOMER UNIT P: PU – Entry CUST. UNIT FACT. P: 0.0001 – Result: MEASURED VALUE = 1 PU Factory setting: Endress+Hauser...
  • Page 54 OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...

  • Page 55: Basic Setup Level

    Specify two pressure-level value pairs for this level mode. Two calibration modes, "Wet" and "Dry", are available. Prerequisite: • MEASURING MODE = Level (see also Page 42.) • LEVEL SELECTION = Level Easy Pressure (see also Page 43.) Endress+Hauser...
  • Page 56 – You want the measured value to be displayed in "PU" (PU: packing unit). – MEASURED VALUE =10000 Pa i 1 PU – Entry CUSTOMER UNIT P: PU – Entry CUST. UNIT FACT. P: 0.0001 – Result: MEASURED VALUE = 1 PU Factory setting: Endress+Hauser...
  • Page 57 "+"- or "–" key before confirming with the "E" key. This applies also if the level value is to remain unchanged. Factory setting: 100.0 Endress+Hauser...

  • Page 58: Full Pressure

    OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...
  • Page 59 Two calibration modes, "Wet" and "Dry", are available. Prerequisite: • MEASURING MODE = Level (see also Page 42.) • LEVEL SELECTION = Level Easy Height (See also Page 43.) Endress+Hauser...
  • Page 60 – You want the measured value to be displayed in "PU" (PU: packing unit). – MEASURED VALUE =10000 Pa i 1 PU – Entry CUSTOMER UNIT P: PU – Entry CUST. UNIT FACT. P: 0.0001 – Result: MEASURED VALUE = 1 PU Factory setting: Endress+Hauser...

  • Page 61: Height Unit

    • US lb/in • US lb/ft Factory setting: kg/dm ADJUST DENSITY (007) Enter density of fluid. The measured pressure is converted to a height using the HEIGHT Entry UNIT, DENSITY UNIT and ADJUST DENSITY parameters. Factory setting: Slot: 2 Index: 245 Endress+Hauser...

  • Page 62: Empty Height

    The values entered for the FULL CALIB. and FULL HEIGHT parameters form the height- Slot: 2 level value pair for the upper calibration point. The unit is selected via the OUTPUT UNIT Index: 76 parameter ( Page 61). Prerequisite: • CALIBRATION MODE = Dry Factory setting: 100.0 Endress+Hauser...

  • Page 63: Full Height

    LEVEL MODE parameter See Page 66, Fig. 27 for LEVEL MODE = Linear, See Page 75, Fig. 29 for LEVEL MODE = Pressure linearized, See Page 79, Fig. 30 for LEVEL MODE = Height linearized Endress+Hauser...
  • Page 64 MEASURED VALUE no longer display the same value.  See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS (Page 107). Factory setting: Depends on the sensor nominal measuring range mbar or bar or as per order specifications Endress+Hauser...

  • Page 65: Level Mode

    % like for the "Pressure linearized" option.  See also Page 80 ff, Table 13. Factory setting: Linear For LEVEL MODE = Linear, see Page 67, Table 11. For LEVEL MODE = Pressure linearized, see Page 75, Table 12. For LEVEL MODE = Height linearized, see Page 80, Table 13. Endress+Hauser...
  • Page 66 The display ZERO POSITION depends on the settings of other parameters, see the following Table. DAMPING VALUE DAMP SWITCH P01-xMx7xxxx-19-xx-xx-xx-006 Fig. 27: BASIC SETUP function group for the "Level" measuring mode and "Linear" level type Endress+Hauser...

  • Page 67: Lin. Measurand

    For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 68 For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 69 For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 70 Prerequisite: • CALIBRATION MODE = Wet Factory setting: EMPTY PRESSURE (710) Displays the pressure value for the lower calibration point (container empty). See also EMPTY CALIB. Display Prerequisite: Slot: 2 • CALIBRATION MODE = Wet Index: 180 Factory setting: Endress+Hauser...
  • Page 71 • LIN. MEASURAND = Level, CALIBRATION MODE = Dry Slot: 2 • LIN. MEASURAND = % (level), CALIBRATION MODE = Dry Index: 128 • LIN. MEASURAND = Volume, CALIBRATION MODE = Dry • LIN. MEASURAND = Mass, CALIBRATION MODE = Dry Factory setting: 1 kg/dm Endress+Hauser...

  • Page 72: Tank Volume

    – Result: MEASURED VALUE = 1 bucket Factory setting: TANK VOLUME (858) Enter tank volume. Entry Prerequisite: • LIN. MEASURAND = Volume, CALIBRATION MODE = Dry Slot: 2 • LIN. MEASURAND = Mass, CALIBRATION MODE = Dry Index: 129 Factory setting: 1.0 m Endress+Hauser...

  • Page 73: Tank Height

    – Result: MEASURED VALUE = 1 PU Factory setting: TANK HEIGHT (859) Enter tank height. Entry Prerequisite: • LIN. MEASURAND = Volume, CALIBRATION MODE = Dry Slot: 2 • LIN. MEASURAND = Mass, CALIBRATION MODE = Dry Index: 130 Factory setting: 1.0 m Endress+Hauser...
  • Page 74 OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...
  • Page 75 – Page 64 ff, Table 10: BASIC SETUP – general – Page 93 ff, Table 16: EXTENDED SETUP – Page 96 ff, Table 18 and 19: LINEARIZATION – Page 113 ff, Table 28: PROCESS VALUES – Page 12 ff, Section 5 "Level measurement". Endress+Hauser...

  • Page 76: Lind. Measurand

    For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 77 For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...

  • Page 78: Hydr. Press Max

    OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...
  • Page 79 Table. DAMP SWITCH DAMPING VALUE P01-xMx7xxxx-19-xx-xx-xx-009 Fig. 30: BASIC SETUP function group for the "Level" measuring mode and the "Height linearized" level type, continue calibration with LINEARIZATION function group see Page 96 ff. Endress+Hauser...

  • Page 80: Comb.measurand

    • COMB. MEASURAND = Height and Volume, height and Mass or height and % Slot: 2 Options: Index: 177 • mm • dm • cm • m • inch • ft • User unit, see also the following parameter description for CUSTOMER UNIT H and CUST. UNIT FACT. H. Factory setting: Endress+Hauser...
  • Page 81 Following a change in the unit, the digital output value of the Analog Input value OUT and the onsite display or the MEASURED VALUE no longer display the same value.  See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS (Page 107). Factory setting: Endress+Hauser...
  • Page 82 Following a change in the unit, the digital output value of the Analog Input value OUT and the onsite display or the MEASURED VALUE no longer display the same value.  See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS (Page 107). Factory setting: Endress+Hauser...

  • Page 83: Level Max

    The input limits for the calibration (editing limits) are derived from the value entered. The closer the value entered corresponds to the maximum level to be expected, the more Slot: 2 accurate the measurement result. Index: 134 Factory setting: 100.0 Endress+Hauser...
  • Page 84 Display Prerequisite: • COMB. MEASURAND = Height and Volume, CALIBRATION MODE = Wet Slot: 2 • COMB. MEASURAND = Height and Mass, CALIBRATION MODE = Wet Index: 122 • COMB. MEASURAND = Height and %, CALIBRATION MODE = Wet Endress+Hauser...
  • Page 85 For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...
  • Page 86 Device is mounted above the level lower range value: a positive value has to be entered for ZERO POSITION. Device is mounted below the level lower range value: a negative value has to be entered for ZERO POSITION. Factory setting: Endress+Hauser...
  • Page 87 OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...
  • Page 88 Note: See also – Page 49, Table 5: QUICK SETUP – Page 94, Table 17: EXTENDED SETUP – Page 102, Table 20: TOTALIZER SETUP – Page 114, Table 29: PROCESS VALUES. – Page 38 ff, Section 6 "Flow measurement". Endress+Hauser...
  • Page 89 – You want the measured value to be displayed in "PU" (PU: packing unit). – MEASURED VALUE =10000 Pa i 1 PU – Entry CUSTOMER UNIT P: PU – Entry CUST. UNIT FACT. P: 0.0001 – Result: MEASURED VALUE = 1 PU Factory setting: Endress+Hauser...

  • Page 90: Flow-Meas. Type

    Following a change in the unit, the digital output value of the Analog Input value OUT and the onsite display or the MEASURED VALUE no longer display the same value.  See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS (Page 107). Factory setting: Endress+Hauser...

  • Page 91: Mass Flow Unit

    For example, if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. FieldCare accepts units with eight characters at most. The fraction bar (slash) counts as one character. Factory setting: _ _ _ _ _ _ _ _ Endress+Hauser...

  • Page 92: Cust. Unit Fact. F

    OUT value of the Analog Input Block react to a change in the Slot: 2 pressure. Index: 79 Input range: 0.0 to 999.0 s Factory setting: 2.0 s or as per order specifications Note! The set damping time is only effective if DIP switch 2 is set to the "on" position. Endress+Hauser...

  • Page 93: Extended Setup Pressure

    • °F • K • R Factory setting: °C Table 16: OPERATING MENU  SETTINGS  EXTENDED SETUP "Level" Parameter name Description Prerequisite: • MEASURING MODE = Level Note: • See also Page 12 ff, Section 5 "Level measurement". Endress+Hauser...

  • Page 94: Process Density

    TEMP. ENG. UNIT (318) Select the unit for the temperature measured value. See also PCB TEMPERATURE (Page 109) and SENSOR TEMP. (Page 115). Selection Options: Slot: 2 • °C Index: 44 • °F • K • R Factory setting: °C Endress+Hauser...

  • Page 95: Set.l.fl.cut-Off

    See also LOW FLOW CUT-OFF. Slot: 2 Prerequisite: Index: 149 • LOW FLOW CUT-OFF = on Input range: Switch-off point: 0...50 % of end flow value (MAX. FLOW). ➀ ➁ Δp Δp P01-PMD7xxxx-05-xx-xx-xx-000 Factory setting: 5 % (of end flow value) Endress+Hauser...

  • Page 96: Tank Content Max

    The input limits for the subsequent calibration (editing limits) are derived from the value Entry entered. The closer the value entered corresponds to the maximum tank content to be expected, the more accurate the measurement result. Factory setting: 100.0 Endress+Hauser...

  • Page 97: Lin. Edit Mode

    – X-VAL.: the hydrostatic pressure present is measured. Depending on the setting in the COMB. MEASURAND parameter, the measured pressure is converted to a level unit or a % and displayed. The value is saved by confirming the Y-value. Factory setting: LINE-NUMB = 1, X-VAL. = 0.0, Y-VAL. = 0.0 Endress+Hauser...

  • Page 98: Measuring Table (Display)

    Enter tank description. (Max. 32 alphanumeric characters) Entry Factory setting: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Endress+Hauser...

  • Page 99: Linearization

    The input limits for the subsequent calibration (editing limits) are derived from the value entered. The closer the value entered corresponds to the maximum tank content to be Slot: 2 expected, the more accurate the measurement result. Index: 188 Factory setting: 100.0 Endress+Hauser...
  • Page 100 In FieldCare you can enter and view a complete linearization table in one go via the "Linearization Table (online/offline)" function. X-VAL. ("Manual" entry Enter the pressure value for the linearization table. See also LIN. EDIT MODE, LINE-NUMB and Y-VAL. mode) Entry Prerequisite: • TABLE SELECTION = Editor table Slot: 2 Index: 162 Endress+Hauser...
  • Page 101 Entry Factory setting: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Slot: 2 Index: 119 Endress+Hauser...
  • Page 102 – Index 102: TOTALIZER 1 UNIT (general) – Index 156 (398): FLOW-MEAS. TYPE "Volume p. cond." – Index 168 (662): FLOW-MEAS. TYPE "Mass" – Index 170 (664): FLOW-MEAS. TYPE "Vol. std. cond." – Index 172 (666): FLOW-MEAS. TYPE "Vol. norm cond." Factory setting: Endress+Hauser...

  • Page 103: Fact.u.u.total.1

    – Index 157 (399): FLOW-MEAS. TYPE "Volume p. cond." Index: 103, 157, 169, 171, – Index 169 (663): FLOW-MEAS. TYPE "Mass" – Index 171 (665): FLOW-MEAS. TYPE "Vol. std. cond." – Index 173 (667): FLOW-MEAS. TYPE "Vol. norm cond." Factory setting: Endress+Hauser...

  • Page 104: Fact. U. U. Total. 2

    QUICK SETUP MANUFACTURER VIEW PROFILE VIEW OPERATING MENU SETTINGS DISPLAY POSITION ADJUSTMENT TOTALIZER SETUP MENU DESCRIPTION 1) Display via on-site display only MAIN DATA FORMAT 2) Display via digital communication ALTERNATE DATA LANGUAGE DISPLAY CONTRAST P01-xMx7xxxx-19-xx-xx-xx-014 Fig. 37: DISPLAY group Endress+Hauser...

  • Page 105: Menu Descriptor

    Index: 78 • Select the menu language for FieldCare by means of the "Language Button" in the configuration window. Select the menu language for the FieldCare frame via the "Extra" menu  "Options"  "Display"  "Language". Factory setting: English Endress+Hauser...

  • Page 106: Display Contrast

    For the PA DATA function group, see Page 107, Table 23 For the TRANSMITTER DATA function group, see Page 108, Table 24 For the PROCESS CONNECTION function group, see Page 110, Table 25 For the SENSOR DATA function group, see Page 111, Table 26 Endress+Hauser...

  • Page 107: Ai Out Value

    • Sensor Value: corresponds to the SENSOR PRESSURE parameter (see Page 113) • Trimmed Value: corresponds to the CORRECTED PRESS. parameter ( see Page 113) • Secondary Value 1: corresponds to the PRESSURE parameter ( see Page 113) Factory setting: Temperature Endress+Hauser...

  • Page 108: Device Serial No

    _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ or as per order specifications Slot: 0 Index: 18 Endress+Hauser...

  • Page 109: Software Version

    (INSERT PIN No., see Page 118.) See also Operating Instructions BA00294P (Deltabar S), BA00295P (Cerabar S) or Index: 41 BA00356P (Deltapilot S), Section 5.7 "Locking/unlocking operation". Display: • On (locking switched on) • Off (locking switched off) Factory setting: Off (locking switched off) Endress+Hauser...

  • Page 110: Mat. Proc. Conn

    • NBR • EPDM • Urethane • IIR • Kalrez • FKM Viton oxyg • CR • MVQ • PTFE glass • PTFE graphite • PTFE oxygen • Copper • Copper f. oxygen Factory setting: As per order specifications Endress+Hauser...

  • Page 111: Sensor Ser. No

    Slot: 2 Index: 98 Tmax SENSOR (369) Displays the upper nominal temperature limit of the sensor. Display Slot: 2 Index: 99 SENS H/WARE REV (487) Displays the revision number of the sensor hardware. Display e.g.: 1 Slot: 2 Index: 100 Endress+Hauser...

  • Page 112: Process Values Pressure

    Table 27: OPERATING MENU  PROCESSINFO  PROCESS VALUES "Pressure" Parameter name Description Prerequisite: • MEASURING MODE = Pressure MEASURED VALUE (679) Displays the measured value Display In the "Pressure" measuring mode, this value corresponds to the PRESSURE parameter. Slot: 2 Index: 34 Endress+Hauser...

  • Page 113: Process Values Level

    This value corresponds to the MEASURED VALUE parameter in the "Pressure" measuring mode. Slot: 2 Index: 45 Transducer Block Pressure Position Analog Sensor Sensor Damping adjust- Input Level trim ment Block Flow MEASURED VALUE SENSOR CORRECTED PRESSURE PRESSURE PRESS. P01-xMD7xxxx-05-xx-xx-xx-002 Endress+Hauser...

  • Page 114: Level Before Lin

    This value corresponds to the MEASURED VALUE parameter in the "Pressure" measuring mode. Slot: 2 Index: 45 Transducer Block Pressure Position Analog Sensor Sensor adjust- Damping Input Level trim ment Block Flow MEASURED VALUE SENSOR CORRECTED PRESSURE PRESSURE PRESS. P01-xMD7xxxx-05-xx-xx-xx-003 Endress+Hauser...

  • Page 115: Suppressed Flow

    You can reset this counter by means of the RESET PEAKHOLD Slot: 2 parameter. Index: 89 MAX. MEAS. PRESS. (383) Displays the largest measured pressure value (peak hold indicator). You can reset this Display indicator by means of the RESET PEAKHOLD parameter. Slot: 2 Index: 61 Endress+Hauser...

  • Page 116: Counter T>Tmax

    PCB COUNT:T < Tmin (492) Displays the number of times the specified temperature range of the electronics has been Display undershot. Slot: 0 Index: 103 PCB MIN. TEMP. (494) Displays the smallest electronics temperature measured. Display Slot: 0 Index: 104 Endress+Hauser...

  • Page 117: Reset Peakhold

    For the OPERATING group, see Page 118, Table 31 For the SIMULATION function group, see Page 119, Table 32 For the MESSAGES function group, see Page 120, Table 33  For the USER LIMITS function group, see Page 122, Table 34 Endress+Hauser...

  • Page 118: Download Funct

    DEVICE DESIGN. and the parameters of the POSITION ADJUSTMENT and PROCESS CONNECTION group are overwritten. • Electronics replace: With this option, all parameters except for the parameters of the POSITION ADJUSTMENT group are overwritten. Factory setting: ® Copy config. (if HistoROM /M-DAT is attached to the electronic insert) Endress+Hauser...

  • Page 119: Simulation Mode

    Slot: 2 • MEASURING MODE = Flow and SIMULATION MODE = Flow Index: 165 SIM. LEVEL (714) Enter simulation value. See also SIMULATION MODE. Entry Prerequisite: Slot: 2 • MEASURING MODE = Level and SIMULATION MODE = Level Index: 182 Endress+Hauser...

  • Page 120: Alarm Status

    The cause of the alarm must be eliminated, the message must be acknowledged via the ACK. ALARM parameter and, where applicable, the ALARM DISPL. TIME (Page 121) has to have elapsed before the device starts measuring again following an alarm. See also these Operating Instructions, Section 9.3 "Confirming messages". Factory setting: Abort Endress+Hauser...

  • Page 121: Alarm Delay

    If an alarm appears and the alarm display time elapses before the alarm has been acknowledged, the message will be cleared once it has been acknowledged. See also these Operating Instructions, Section 9.3 "Confirming messages". Input range: 0...999.9 s Factory setting: 0.0 s Endress+Hauser...

  • Page 122: Pminalarm Window

    See also these Operating Instructions, Section 9.1 "Messages", table, Code E733 and Slot: 2 Section 9.2. "Response of outputs to errors". Index: 85 Factory setting: Upper sensor temperature application limit +10 K (For the upper temperature application limit, see Tmax SENSOR) Endress+Hauser...
  • Page 123 For the function group PB PARAMETER CERTIFICATES, see Page 128, Table 40 For the function group PB PARAMETER PV STATUS CONFIG, see Page 128, Table 41 For the function group PB PARAMETER PB DIAGNOSE, see Page 132, Table 42 Endress+Hauser...
  • Page 124 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ or as per order specifications Index: 18 Endress+Hauser...
  • Page 125 V02.00.00 Slot: 0 Index: 25 MANUFACTURER ID Displays the manufacturer ID in decimal numerical format. Display Here: 17 Endress+Hauser Slot: 0 Index: 26 DEVICE NAME STR Displays the device designation. Display Options: Cerabar S, Deltabar S or Deltapilot S...
  • Page 126 • Totalizer 2 ( see Page 115) Factory setting: Totalizer 1 Table 37: PROFILE VIEW  PHYSICAL BLOCK PB PARAMETER PROFIBUS PA INFO Parameter name Description PROFILE REVISION Displays the profile version, here: 3.02. Display Slot: 0 Index: 64 Endress+Hauser...
  • Page 127 (software addressing). Using a DIP switch on the electronic insert, you Slot: 0 specify whether the hardware address or the software address takes effect.  For further information on device addressing, see Operating Instructions BA00294P Index: 59 (Deltabar S), BA00295P (Cerabar S) or BA00356P (Deltapilot S). Factory setting: Endress+Hauser...
  • Page 128 • Good: Device continues measuring within its physical limits. The process value or the measuring channel is transmitted with the status GOOD. Note! A parameter change will automatically update the SELECT ALARMTYPE parameter for diagnostic event 120. The GOOD and UNCERTAIN options are displayed as a warning. Endress+Hauser...
  • Page 129 • Good: Device continues measuring within its physical limits. The process value or the measuring channel is transmitted with the status GOOD. Note! A parameter change will automatically update the SELECT ALARMTYPE parameter for diagnostic event 719. The GOOD and UNCERTAIN options are displayed as a warning. Endress+Hauser...
  • Page 130 • Good: Device continues measuring within its physical limits. The process value or the measuring channel is transmitted with the status GOOD. Note! A parameter change will automatically update the SELECT ALARMTYPE parameter for diagnostic event 731. The GOOD and UNCERTAIN options are displayed as a warning. Endress+Hauser...
  • Page 131 • Good: Device continues measuring within its physical limits. The process value or the measuring channel is transmitted with the status GOOD. Note! A parameter change will automatically update the SELECT ALARMTYPE parameter for diagnostic event 716. The GOOD and UNCERTAIN options are displayed as a warning. Endress+Hauser...
  • Page 132 More than one alarm is possible at one time. In addition, the DIAGNOSIS EXTENSION parameter (see Page 132) can display further alarms and warnings. Slot: 0 DIAGNOSIS EXTENSION 7, 8 Index: 91 • Factory setting: 0x0, 0x0 DIAGNOSIS EXTENSION 9 • Factory setting: 0x0, 0x0 Endress+Hauser...
  • Page 133 For the TB STANDARD PARAM. function group, see Page 134, Table 43 For the TB PARAMETER function group, see Page 135, Table 44  For the AI STANDARD PARAMETER function group, see Page 136, Table 45  For the AI PARAMETER function group, see Page 137, Table 46 Endress+Hauser...
  • Page 134 Grouping takes place by entering the same numerical value for the STRATEGY parameter of the block in question. See also STRATEGY parameter, Transducer Block (Page 125) Slot: 2 and Analog Input Block (Page 137). Index: 19 Input range: 0...65535 Factory setting: Endress+Hauser...
  • Page 135 The TEMPERATURE parameter is a structured parameter consisting of two elements. Display SENSOR TEMP. • Displays the temperature currently measured in the sensor. This temperature can Slot: 2 deviate from the process temperature. Index: 43 TEMP. STATUS • Displays the status of the temperature measured. Endress+Hauser...
  • Page 136 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ or as per order specifications Index: 18 Endress+Hauser...
  • Page 137 AI OUT STATUS Index: 26 • Displays the status of the OUT value. Note! If the "MAN" (manual) block mode was selected by means of the MODE BLK parameter, the output value OUT and its status can be specified manually here. Endress+Hauser...
  • Page 138  See also parameter description for DAMPING VALUE (e.g. Page 45). Slot: 1 Note! Index: 32 If the "MAN" (manual) block mode was selected by means of the MODE BLK parameter, the time entered here has no effect on the OUT value here. Factory setting: 0.0 s Endress+Hauser...
  • Page 139 Illustration of the output value OUT with limit values and hysteresis as well as the alarms HI HI ALM, HI ALM, LO ALM and LO LO ALM Input range: 0.0...50.0 % with regard to the range of the OUT_SCALE group ( see Page 138) Factory setting: 0.5000 % Endress+Hauser...
  • Page 140 • Displays the current status of the LO ALARM e.g. alarm still active, alarm reported to the host system etc. • Factory setting: no alarm WARNING OUTPUT VALUE • Displays the value that violated the lower limit (LOWER LIMIT WARNING). • Factory setting: 0.0000 % Endress+Hauser...
  • Page 141 MODE and unit parameters, you can enter a value for pressure, level, volume, mass or flow here. • Factory setting: 0.0 STATUS (SIMUL.) • This element is displayed if the simulation mode was activated by means of the SIMUL. ENABLED parameter. Enter the status for the simulation value. • Factory setting: 128 (GOOD) Endress+Hauser...

  • Page 142: Slot/Index Tables

    • S: static parameter 8.1.2 Device management Parameter Slot Index Object type Data type Size (byte) Storage Class Read Write Directory object header Array Unsigned16 Composite list directory entries Array Unsigned16 GAP directory continuous 2 – 8 GAP reserved 9 – 15 Endress+Hauser...
  • Page 143 Visible String IDENT NUMBER SEL Simple Unsigned8 DIP STATUS Simple Unsigned8 FEATURE Record DS-68 COND.STATUS DIAG Simple Unsigned8 Physical Block, Endress+Hauser parameters ALARM STATUS Simple Unsigned16 LAST DIAG. CODE Simple Unsigned16 UP_DOWN_FEAT Simple Unsigned8 UP/DOWNLOAD CTRL Simple Unsigned8 UP/DOWN PARAM...
  • Page 144 UPPER LIMIT WARNING Simple Float LOWER LIMIT WARNING Simple Float LOWER LIMIT ALARM Simple Float HI_HI_ALM Record DS-39 HI_ALM Record DS-39 LO_ALM Record DS-39 LO_LO_ALARM Record DS-39 SIMULATE Record DS-50 VIEW_1_FB Simple Octet String If MODE BLK Actual = Manual (MAN) Endress+Hauser...
  • Page 145 MAX PRESS. FLOW Simple Float PminALARM WINDOW Simple Float PmaxALARM WINDOW Simple Float TminALARM WINDOW Simple Float TmaxALARM WINDOW Simple Float SIMULATED VALUE Simple Float SIMULATION MODE Simple Unsigned8 COUNTER P>Pmin Simple Unsigned16 COUNTER P<Pmax Simple Unsigned16 COUNTER T>Tmax Simple Unsigned16 Endress+Hauser...
  • Page 146 MEASURING MODE Simple Unsigned8 UNIT FLOW Simple Unsigned16 TOTALIZER 1 UNIT (Volume p. cond.) Simple Unsigned16 TOTALIZER 2 UNIT (Volume p. cond.) Simple Unsigned16 LOW FLOW CUT-OFF Simple Unsigned8 LO TRIM MEASURED Simple Float HI TRIM MEASURED Simple Float Endress+Hauser...
  • Page 147 CALIBRATION MODE Simple Unsigned8 EMPTY HEIGHT Simple Float FULL HEIGHT Simple Float DENSITY UNIT Simple Unsigned16 ADJUST DENSITY Simple Float PROCESS DENSITY Simple Float MEAS.LEVEL EASY Simple Float LEVEL SELECTION Simple Unsigned8 OUTPUT UNIT Simple Unsigned16 can only be reset Endress+Hauser...

  • Page 148: Troubleshooting

    For the error messages, see Page 155, Section 9.1.1 "Onsite display error messages". • For support and further information, please contact Endress+Hauser Service. • The PROFIBUS status is updated depending on the message type, or depending on the setting for...
  • Page 149 – Main electronics defect. – Replace main electronics. 602 (W602) Warning Function C>Linearization curve – The linearization table is not – Add to or correct linearization table. check (C) not monoton monotonic increasing or Then accept linearization table decreasing. again. Endress+Hauser...
  • Page 150 – Main electronics defect. – Replace main electronics. 705 (A705) Alarm Failure (F) F>Measurement error – Fault in the main electronics. – Briefly disconnect device from the power supply. – Main electronics defect. – Replace main electronics. Endress+Hauser...
  • Page 151 – Increase ambient temperature. specification temperature electronics is smaller than the Insulate device if necessary. Factory setting: lower nominal temperature of the Warning electronics (–43 °C -45 °F). – Unsuitable download carried out. – Check configuration and perform download again. Endress+Hauser...
  • Page 152 – Main electronics defect. – Replace main electronics. 729 (A729) Alarm Failure (F) F>RAM error – Fault in the main electronics. – Briefly disconnect device from the power supply. – Main electronics defect. – Replace main electronics. Endress+Hauser...
  • Page 153 – Check configuration and carry out measured pressure has undershot calibration again if necessary. the value for MAX. PRESS FLOW. – Select a device with a suitable measuring range. – Pressure measuring mode: Main – Replace main electronics. electronics defect. Endress+Hauser...
  • Page 154 – Main electronics defect. – Replace main electronics. 745 (W745) Warning Maintenance M>Sensor data unknown – Sensor does not suit the device – Replace sensor with a suitable required (M) (electronic sensor nameplate). sensor. Device continues measuring. Endress+Hauser...
  • Page 155 If the device detects a defect in the onsite display during initialization, the following error messages can be displayed: Message Measure Initialization, VU Electr. Defect A110 Exchange onsite display. Initialization, VU Electr. Defect A114 Initialization, VU Electr. Defect A281 Initialization, VU Checksum Err. A110 Initialization, VU Checksum Err. A112 Initialization, VU Checksum Err. A171 Endress+Hauser...

  • Page 156: Response Of Outputs To Errors

    Parameters are displayed via remote operation (e.g. FieldCare) only. Menu path: PROFILE VIEW  ANALOG INPUT BLOCK  AI PARAMETER  FAIL SAFE MODE Menu path onsite display: GROUP SELECTION  OPERATING MENU  DIAGNOSTICS MESSAGES Menu path FieldCare: MANUFACTOR VIEW  OPERATING MENU  DIAGNOSTICS MESSAGES Endress+Hauser...
  • Page 157 • 740: Calculation overflow, bad configuration To change the measured value status (Bad, Uncertain, Good) assigned to an event, select the desired status from the picklist. Example The status "Bad" should be used for error 115 "Sensor overpressure" instead of the status "Uncertain". Endress+Hauser...

  • Page 158: Confirming Messages

    – Wait for the alarm display time to elapse. If a message appears and the alarm display time elapses before the message has been acknowledged, the message will be cleared once it has been acknowledged. ALARM DISPL. TIME and ACK. ALARM MODE parameters are located in the MESSAGES menu. Endress+Hauser...

  • Page 159: Index

    EMPTY CALIB. (314)/(010), QUICK SETUP ... 47 COUNTER P Pmin (467)......116 Endress+Hauser...
  • Page 160 LEVEL SELECTION (020) ..... . 43, 46 PCB MAX. TEMP. (490)......116 Endress+Hauser...
  • Page 161 ZERO POSITION (814), "Linear" level type ... . 74 SUPPRESSED FLOW (375) ..... . . 115 Endress+Hauser...
  • Page 162 www.endress.com/worldwide BA00296P/00/EN/15.14 71270404 CCS/FM+SGML 9 71270404...

This manual is also suitable for:

Cerabar s pmp71Cerabar s pmp75Deltabar s fmd78Deltabar s fmd77Deltabar s pmd75Deltapilot s fmb70 ... Show all

Table of Contents
